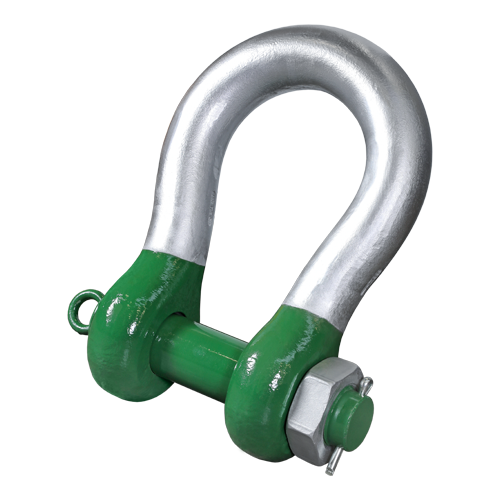

Green Pin Polar® Heavy Duty Bow Shackle BN

High load capacity, grade 8 bow shackle with safety bolt for use under low temperatures
    Highlights
  • Perfect for use in low-temperature situations (down to -40 °C / -40 °F)
  • Good choice for heavy lifting projects
  • Conforms to wide range of certifications
  • Suitable for both one-leg and multi-leg systems
Description

The Green Pin Polar® Heavy Duty Shackle BN is a high load capacity bow shackle with a safety bolt that has been optimized for use in low temperatures. The shackle can be used in extreme climatic conditions, down to -40°C (-40°F). The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Of course, the Green Pin Polar® Heavy Duty Shackle BN conforms to a wide range of certifications. The Green Pin Polar® Heavy Duty Shackle BN is suitable for both one-leg systems and multi-leg systems and is available with a working load limit of 120t or 1500t.

Product details
  • Productcode
    P-6031
  • Material
    bow and pin alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    shackle bow painted silver, pin painted green (120 tons shackle is hot dipped galvanized)
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MTCb
    • LROS
    • MPIa
    • USa
    • CE
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf
Article code
working load limit (ton)
Weight shackle pin (lb)
Weight shackle pin (kg)
diameter bow (mm) A
diameter bow (inch) A
diameter pin (inch) B
diameter pin (mm) B
diameter eye (inch) C
diameter eye (mm) C
width eye (inch) D
width eye (mm) D
width inside (inch) E
width inside (mm) E
length inside (mm) F
length inside (inch) F
width bow (mm) G
width bow (inch) G
length (mm) H
length (inch) H
length bolt (mm) I
length bolt (inch) I
width (mm) J
width (inch) J
thickness nut (inch) K
thickness nut (mm) K
Nett weight KG
Nett weight LBS
HDPOHM0120 120 28,12 95 95 204 95 147 400 238 644 453 428 50 110
HDPOHM0120 61,99 3 3/4 3 3/4 8 1/32 3 3/4 5 25/32 15 3/4 9 3/8 25 11/32 17 27/32 16 27/32 1 31/32 243
HDPOHM0150 150 39,15 105 108 235 105 169 410 275 686 496 485 50 160
HDPOHM0150 86,31 4 1/8 4 1/4 9 1/4 4 1/8 6 21/32 16 5/32 10 13/16 27 19 17/32 19 3/32 1 31/32 353
HDPOHM0200 200 69,15 120 130 270 120 179 513 290 833 564 530 71 235
HDPOHM0200 152,45 4 23/32 5 1/8 10 5/8 4 23/32 7 1/16 20 3/16 11 13/32 32 25/32 22 7/32 20 7/8 2 25/32 518
HDPOHM0250 250 85,5 130 140 284 130 205 554 305 896 614 565 71 285
HDPOHM0250 188,5 5 1/8 5 1/2 11 3/16 5 1/8 8 1/16 21 13/16 12 35 9/32 24 3/16 22 1/4 2 25/32 628
HDPOHM0300 300 102 140 150 308 140 205 618 305 987 644 585 81 368
HDPOHM0300 224,87 5 1/2 5 29/32 12 1/8 5 1/2 8 1/16 24 11/32 12 38 27/32 25 11/32 23 1/32 3 3/16 811
HDPOHM0400 400 126,66 170 175 376 164 231 668 325 1114 690 665 70 560
HDPOHM0400 279,25 6 11/16 6 7/8 14 13/16 6 15/32 9 3/32 26 5/16 12 25/32 43 27/32 27 5/32 26 3/16 2 3/4 1235
HDPOHM0500 500 147,51 180 185 398 164 256 718 350 1190 720 710 70 716
HDPOHM0500 325,2 7 3/32 7 9/32 15 21/32 6 15/32 10 3/32 28 9/32 13 25/32 46 27/32 28 11/32 27 15/16 2 3/4 1579
HDPOHM0600 600 204,43 200 205 444 189 282 718 375 1243 810 775 70 940
HDPOHM0600 450,69 7 7/8 8 1/16 17 15/32 7 7/16 11 3/32 28 9/32 14 3/4 48 15/16 31 7/8 30 1/2 2 3/4 2073
HDPOHM0700 700 241,66 210 215 454 204 308 718 400 1263 870 820 70 980
HDPOHM0700 532,77 8 9/32 8 15/32 17 7/8 8 1/32 12 1/8 28 9/32 15 3/4 49 23/32 34 1/4 32 9/32 2 3/4 2161
HDPOHM0800 800 253,47 210 220 464 204 308 718 400 1270 870 820 70 1100
HDPOHM0800 558,81 8 9/32 8 21/32 18 9/32 8 1/32 12 1/8 28 9/32 15 3/4 50 34 1/4 32 9/32 2 3/4 2426
HDPOHM0900 900 292,09 220 230 485 215 328 718 420 1296 920 860 70 1280
HDPOHM0900 643,95 8 21/32 9 1/16 19 3/32 8 15/32 12 19/32 28 9/32 16 17/32 51 1/32 36 7/32 33 27/32 2 3/4 2822
HDPOHM1000 1000 325,46 240 240 515 215 349 718 420 1336 940 900 70 1460
HDPOHM1000 717,51 9 7/16 9 7/16 20 9/32 8 15/32 13 3/4 28 9/32 16 17/32 52 19/32 37 35 7/16 2 3/4 3219
HDPOHM1250 1250 449,98 260 270 585 230 369 768 450 1456 1025 970 70 1990
HDPOHM1250 992,03 10 1/4 10 5/8 23 1/32 9 1/16 14 17/32 30 1/4 17 23/32 57 5/16 40 11/32 38 3/16 2 3/4 4388
HDPOHM1500 1500 519,27 280 290 625 230 369 818 450 1556 1025 1010 70 2400
HDPOHM1500 1144,79 11 1/32 11 13/32 24 19/32 9 1/16 14 17/32 32 7/32 17 23/32 61 1/4 40 11/32 39 3/4 2 3/4 5292

Frequently Asked Questions

FAQs
Are there any recommendations for additional stamping on Green Pin® Shackles?

Note: Main dimensions, general info and warnings can be found in our latest catalogue.

If the recommendations in this product information are followed performance of the shackles is guaranteed:

  • permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
  • the number of marks on a shackle is to be kept to the minimum.
  • the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
  • values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
  • recommended sizes of marks are
    • Diameter of part to be marked > recommended size of mark
    • less then 12.5 mm > 3.0 mm
    • 12.5 to 26 mm > 4.5 mm
    • over 26 mm > 6.0 mm

Typical arrangements of marks can be found in the following illustrations.

Additional stamping on Green Pin<sup>®</sup> Shackles 1

Additional stamping on Green Pin<sup>®</sup> Shackles 2

Additional stamping on Green Pin<sup>®</sup> Shackles 3

FAQ-Reference: PI-05-03. Rev 0.
