Green Pin® Snatch Block HK

Snatch block type 601HK with Hook attached
    Highlights
  • Smooth, uninterrupted pull due to conical roller bearings
  • Coating assures long-term durability
  • Lightweight
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
    • Cad drawing Pdf / Print
Description

The Green Pin® Snatch Block HK is a light-weight snatch block type 601HK with a hook attached. The snatch block has a smooth, uninterrupted pull due to the conical roller bearings. The coating of the Green Pin® Snatch Block HK ensures long-term durability, even under harsh conditions. It is available in a range with a working load limit from 2 up to 15 ton.

Product details
  • Productcode
    P-6952
  • Material
    carbon steel, fitted with conical roller bearings
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted
  • Certification
    • 2.1
    • 2.2
    • MTCb
    • CE
  • Note
    Working Load Limit is on the headfitting
Contact
Technical specifications in
mminch
Pdf Article code working load limit (ton)
working load limit (ton)
diameter wire rope (inch)
diameter wire rope (mm)
diameter outside sheave (inch)

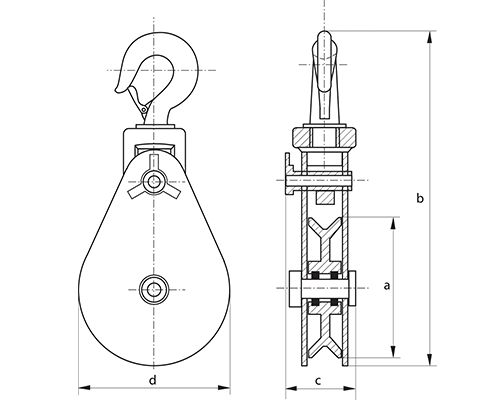

A
diameter outside sheave (mm)
A
length (inch)
B
length (mm)
B
thickness (inch)
C
thickness (mm)
C
width outside (inch)
D
width outside (mm)
D
opening hook (inch)
E
opening hook (mm)
E
width (inch)
F
width (mm)
F
Net weight (KG) Net weight (LBS)
BKOFFSH0302 2 7 - 9 75 290 87 82 28 108 4
BKOFFSH0302 2 9/32 - 3/8 2 15/16 11 13/32 3 7/16 3 7/32 1 3/32 4 1/4 8.82
BKOFFSH0404 4 10 - 12 115 358 89 120 43 125 6.10
BKOFFSH0404 4 3/8 - 1/2 4 17/32 14 3/32 3 1/2 4 23/32 1 11/16 4 29/32 13.5
BKOFFSH0604 4 12 - 14 150 412 89 160 40 125 6
BKOFFSH0604 4 1/2 - 9/16 5 29/32 16 7/32 3 1/2 6 5/16 1 9/16 4 29/32 13.2
BKOFFSH0608 8 20 - 22 150 502 119 160 48 165 11.8
BKOFFSH0608 8 3/4 - 7/8 5 29/32 19 3/4 4 11/16 6 5/16 1 7/8 6 1/2 26.0
BKOFFSH0612 12 20 - 22 150 616 119 160 70 236 23
BKOFFSH0612 12 3/4 - 7/8 5 29/32 24 1/4 4 11/16 6 5/16 2 3/4 9 9/32 50.7
BKOFFSH0615 15 24 - 26 150 626 138 160 70 236 23
BKOFFSH0615 15 1 5 29/32 24 21/32 5 7/16 6 5/16 2 3/4 9 9/32 50.7
BKOFFSH0804 4 10 - 12 200 473 91 210 40 125 8
BKOFFSH0804 4 3/8 - 15/32 7 7/8 18 5/8 3 19/32 8 9/32 1 9/16 4 29/32 17.6
BKOFFSH0808 8 20 - 22 200 551 119 210 48 165 16.9
BKOFFSH0808 8 3/4 - 7/8 7 7/8 21 11/16 4 11/16 8 9/32 1 7/8 6 1/2 37.3
BKOFFSH0812 12 20 - 22 200 641 129 210 70 236 25
BKOFFSH0812 12 3/4 - 7/8 7 7/8 25 1/4 5 3/32 8 9/32 2 3/4 9 9/32 55.1
BKOFFSH0815 15 24 - 26 200 663 142 210 70 236 26
BKOFFSH0815 15 1 7 7/8 26 3/32 5 19/32 8 9/32 2 3/4 9 9/32 57.3
BKOFFSH1008 8 20 - 22 250 606 103 260 46 165 17.6
BKOFFSH1008 8 3/4 - 7/8 9 27/32 23 27/32 4 1/16 10 1/4 1 13/16 6 1/2 38.9
BKOFFSH1012 12 20 - 22 250 728 125 260 70 236 28
BKOFFSH1012 12 3/4 - 7/8 9 27/32 28 21/32 4 29/32 10 1/4 2 3/4 9 9/32 61.7
BKOFFSH1015 15 24 - 26 250 745 166 260 70 236 28
BKOFFSH1015 15 1 9 27/32 29 11/32 6 17/32 10 1/4 2 3/4 9 9/32 61.7
BKOFFSH1208 8 20 - 22 300 671 119 310 46 165 23
BKOFFSH1208 8 3/4 - 7/8 11 13/16 26 13/32 4 11/16 12 7/32 1 13/16 6 1/2 50.7
BKOFFSH1212 12 20 - 22 300 810 166 310 70 236 31
BKOFFSH1212 12 3/4 - 7/8 11 13/16 31 7/8 6 17/32 12 7/32 2 3/4 9 9/32 68.4
BKOFFSH1215 15 24 - 26 300 810 166 310 70 236 31
BKOFFSH1215 15 1 11 13/16 31 7/8 6 17/32 12 7/32 2 3/4 9 9/32 68.4
BKOFFSH1408 8 20 - 22 350 716 119 360 46 165 31
BKOFFSH1408 8 3/4 - 7/8 13 25/32 28 3/16 4 11/16 14 3/16 1 13/16 6 1/2 68.4
BKOFFSH1412 12 20 - 22 350 835 166 360 70 236 33
BKOFFSH1412 12 3/4 - 7/8 13 25/32 32 7/8 6 17/32 14 3/16 2 3/4 9 9/32 72.8
BKOFFSH1415 15 24 - 26 350 837 166 360 70 236 33
BKOFFSH1415 15 1 13 25/32 32 15/16 6 17/32 14 3/16 2 3/4 9 9/32 72.8
BKOFFSH1608 8 20 - 22 400 780 119 415 46 165 36
BKOFFSH1608 8 3/4 - 7/8 15 3/4 30 23/32 4 11/16 16 11/32 1 13/16 6 1/2 79.4
BKOFFSH1612 12 20 - 22 400 888 166 415 70 236 36
BKOFFSH1612 12 3/4 - 7/8 15 3/4 34 31/32 6 17/32 16 11/32 2 3/4 9 9/32 79.4
BKOFFSH1615 15 24 - 26 400 890 166 415 70 236 36
BKOFFSH1615 15 1 15 3/4 35 1/32 6 17/32 16 11/32 2 3/4 9 9/32 79.4
BKOFFSH1808 8 20 - 22 450 841 119 465 46 165 40.0
BKOFFSH1808 8 3/4 - 7/8 17 23/32 33 1/8 4 11/16 18 5/16 1 13/16 6 1/2 88.2
BKOFFSH1812 12 20 - 22 450 942 166 465 70 236 42
BKOFFSH1812 12 3/4 - 7/8 17 23/32 37 3/32 6 17/32 18 5/16 2 3/4 9 9/32 92.6
BKOFFSH1815 15 24 - 26 450 942 166 465 70 236 43
BKOFFSH1815 15 1 17 23/32 37 3/32 6 17/32 18 5/16 2 3/4 9 9/32 94.8

Frequently Asked Questions

FAQs
Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Snatch Block HK

Snatch block type 601HK with Hook attached

Highlights


  • Smooth, uninterrupted pull due to conical roller bearings
  • Coating assures long-term durability
  • Lightweight
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support

Description


The Green Pin® Snatch Block HK is a light-weight snatch block type 601HK with a hook attached. The snatch block has a smooth, uninterrupted pull due to the conical roller bearings. The coating of the Green Pin® Snatch Block HK ensures long-term durability, even under harsh conditions. It is available in a range with a working load limit from 2 up to 15 ton.

Product details


  • ProductcodeP-6952
  • Materialcarbon steel, fitted with conical roller bearings
  • Safety factorMBL equals 4 x WLL
  • Finishpainted
  • Certification 2.1 2.2 MTCb CE
  • NoteWorking Load Limit is on the headfitting
