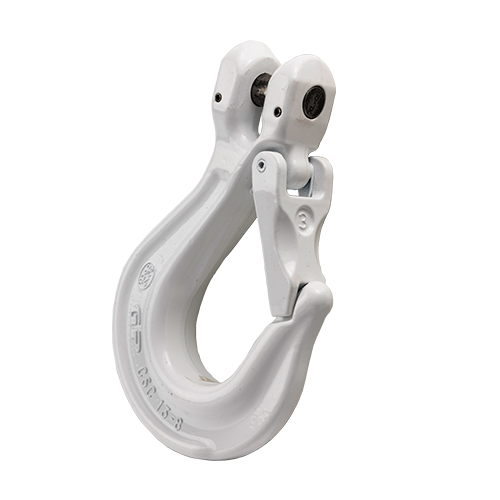

Green Pin® Sling Hook CL EN1677-2

Grade 8 clevis sling hook EN1677-2
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
Description

The Green Pin® Sling Hook CL EN1677-2 is a grade 8 clevis sling hook according to European standard for components for sling EN 1677-2. The sling hook can be used for general lifting applications. It can be quickly connected to the load lifting points thanks to its easy operating latch, which guarantees full safety. To connect simply push the latch, connect the hook to the lifting point, and release the latch. The forged latch guarantees a longer lifespan. It strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin. The clevis design enables a direct connection to grade 8 chain. The Green Pin® Sling Hook CL EN1677-2 is available in a range to suit 6 mm up to 22 mm grade 8 chain.

Product details
  • Productcode
    CSC
  • Material
    alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted white
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
    • DGUV
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
length (mm)
A
CSC
length (inch)
A
CSC
width (mm)
B
CSC
width (inch)
B
CSC
opening hook (inch)
C
CSC
opening hook (mm)
C
CSC
thickness (mm)
D
CSC
thickness (inch)
D
CSC
width (inch)
E
CSC
width (mm)
E
CSC
width outside (inch)
F
CSC
width outside (mm)
F
CSC
width outside (inch)
G
CSC
width outside (mm)
G
CSC
length outside (inch)
H
CSC
length outside (mm)
H
CSC
diameter pin (inch)
I
CSC
diameter pin (mm)
I
CSC
Net weight (KG) Net weight (LBS)
PDF GPCSC5 0,8 5 74 7 26 15 20 28 72 108 8 0.29
PDF GPCSC5 0,8 3/16 2 29/32 9/32 1 1/32 19/32 25/32 1 3/32 2 27/32 4 1/4 5/16 0.64
PDF GPCSC6 1,12 6 74 7 26 15 20 28 72 108 8 0.29
PDF GPCSC6 1,12 7/32 2 29/32 9/32 1 1/32 19/32 25/32 1 3/32 2 27/32 4 1/4 5/16 0.64
PDF GPCSC7/8 2 7 - 8 95 9 30 20 24 32 87 136 9 0.58
PDF GPCSC7/8 2 1/4 - 5/16 3 3/4 11/32 1 3/16 25/32 15/16 1 1/4 3 7/16 5 11/32 11/32 1.29
PDF GPCSC10 3,2 10 113 12 33 24 29 42 106 164 13 1.08
PDF GPCSC10 3,2 3/8 4 7/16 15/32 1 5/16 15/16 1 5/32 1 21/32 4 3/16 6 15/32 1/2 2.38
PDF GPCSC13 5,4 13 139 15 37 32 39 54 133 208 16 2.12
PDF GPCSC13 5,4 1/2 5 15/32 19/32 1 15/32 1 1/4 1 17/32 2 1/8 5 1/4 8 3/16 5/8 4.68
PDF GPCSC16 8,2 16 162 19 44 40 44 68 165 240 20 3.67
PDF GPCSC16 8,2 5/8 6 3/8 23/32 1 23/32 1 9/16 1 23/32 2 11/16 6 1/2 9 7/16 25/32 8.09
PDF GPCSC18/20 12,8 18 - 20 199 23 61 49 62 82 208 305 24 7.32
PDF GPCSC18/20 12,8 3/4 7 27/32 29/32 2 13/32 1 15/16 2 7/16 3 7/32 8 3/16 12 15/16 16.2
PDF GPCSC22 15,5 22 239 25 75 54 65 97 242 350 28 10.7
PDF GPCSC22 15,5 7/8 9 13/32 31/32 2 15/16 2 1/8 2 9/16 3 13/16 9 17/32 13 25/32 1 3/32 23.6

Frequently Asked Questions

FAQs
Where can I find the DGUV Type Approval?

DGUV Type Approval
Van Beest puts great emphasis on the quality of products. Recently, we have renewed our DGUV Type Approvals for many of our products. This allows us to H-stamp the components with our unique H number (H94).

DGUV (Deutsche Gesetzliche Unfallversicherung / German Social Accident Insurance) is the umbrella association of the accident insurance institutions for the industrial and public sectors, a leading certification association in Europe.

The test procedure includes verification of materials, verification of the dimensions on individual samples, tensile tests, fatigue tests and some specific tests such as a bending test, a latch lock test and a latch strength test. The results are compared to the specifications mentioned in the EN 1677 norm. With this comprehensive testing procedure and certification of both chain and components, Van Beest supplies the highest quality products that contribute to a safe working environment. Click here to download all the certificates.

How should I use Green Pin® Clevis type fittings?

Please find the user manual here.

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How should I use a Green Pin® Replacement kit for latch hooks for grade 8 and 10 (LF)?

Please find the user manual here.
