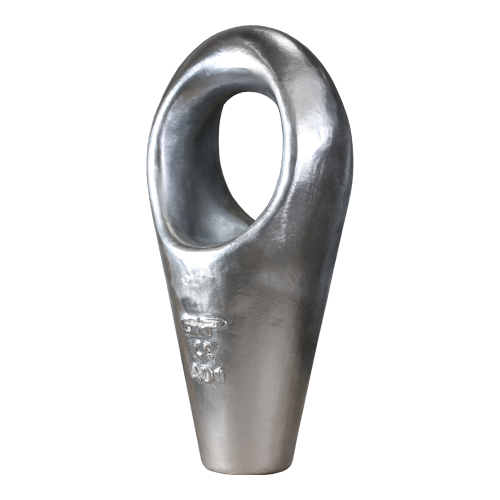

Green Pin® Short Bow Socket

Closed spelter socket
    Highlights
  • High tensile steel
  • Galvanization assures long-term durability
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
  • Can be used in combination with the Socket Lock Socketing Resin
    • Cad drawing Pdf / Print
Description

The Green Pin® Short Bow Socket is a closed spelter socket. The socket is made from cast alloy steel, while galvanization ensures its long-term durability. The Green Pin® Short Bow Socket is available for wire rope with a diameter from 1 1/4 - 1 3/8" up to 4 1/4 - 4 1/2" and can be used in combination with the Socket Lock Socketing Resin.

Product details
  • Productcode
    G-6416
  • Material
    Cast alloy steel
  • Finish
    hot dipped galvanized
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • CE
Contact
Technical specifications in
mminch
Pdf Article code minimum breaking load (ton)
minimum breaking load (ton)
diameter wire rope (inch)
diameter wire rope (mm)
length (inch)
A
G-6416 schematic
length (mm)
A
G-6416 schematic
width (inch)
B
G-6416 schematic
width (mm)
B
G-6416 schematic
thickness bow (inch)
C
G-6416 schematic
thickness bow (mm)
C
G-6416 schematic
length eye (inch)
D
G-6416 schematic
length eye (mm)
D
G-6416 schematic
width eye (inch)
E
G-6416 schematic
width eye (mm)
E
G-6416 schematic
opening (inch)
F
G-6416 schematic
opening (mm)
F
G-6416 schematic
Net weight (KG) Net weight (LBS)
SKGSB032 140 31 - 36 262 132 38 83 75 39 7.28
SKGSB032 140 1 1/4 - 1 3/8 10 5/16 5 3/16 1 1/2 3 9/32 2 15/16 1 17/32 16.0
SKGSB038 160 37 - 42 300 147 38 103 92 44 10.0
SKGSB038 160 1 1/2 - 1 5/8 11 13/16 5 25/32 1 1/2 4 1/16 3 5/8 1 23/32 22.1
SKGSB045 200 43 - 48 348 178 42 120 112 51 16
SKGSB045 200 1 3/4 - 1 7/8 13 11/16 7 1 21/32 4 23/32 4 13/32 2 35.3
SKGSB050 250 49 - 54 390 200 54 132 120 57 32
SKGSB050 250 2 - 2 1/8 15 11/32 7 7/8 2 1/8 5 3/16 4 23/32 2 1/4 70.6
SKGSB057 320 55 - 60 440 220 62 148 135 63 28
SKGSB057 320 2 1/4 - 2 3/8 17 5/16 8 21/32 2 7/16 5 13/16 5 5/16 2 15/32 61.7
SKGSB065 400 61 - 68 468 250 68 165 150 73 56
SKGSB065 400 2 1/2 - 2 5/8 18 7/16 9 27/32 2 11/16 6 1/2 5 29/32 2 7/8 123
SKGSB070 500 69 - 75 540 274 75 175 164 79 68
SKGSB070 500 2 3/4 - 2 7/8 21 1/4 10 25/32 2 15/16 6 7/8 6 15/32 3 1/8 150
SKGSB075 600 76 - 80 585 295 76 195 175 86 69.0
SKGSB075 600 3 - 3 1/8 23 1/32 11 5/8 3 7 11/16 6 7/8 3 1/2 152
SKGSB080 700 81 - 86 625 320 82 216 194 92 120
SKGSB080 700 3 1/4 - 3 3/8 24 19/32 12 19/32 3 7/32 8 1/2 7 5/8 3 5/8 265
SKGSB085 800 87 - 93 670 350 92 220 202 99 111
SKGSB085 800 3 1/2 - 3 5/8 26 3/8 13 25/32 3 5/8 8 21/32 7 15/16 3 29/32 245
SKGSB095 900 94 - 102 700 375 100 235 215 105 190
SKGSB095 900 3 3/4 - 4 27 9/16 14 3/4 3 15/16 9 1/4 8 15/32 4 1/4 419
SKGSB102 1000 108 - 115 800 410 110 270 240 115 250
SKGSB102 1000 4 1/4 - 4 1/2 31 1/2 16 5/32 4 11/32 10 5/8 9 7/16 4 17/32 551

Frequently Asked Questions

FAQs
Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Green Pin® Short Bow Socket

Closed spelter socket

Highlights


  • High tensile steel
  • Galvanization assures long-term durability
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
  • Can be used in combination with the Socket Lock Socketing Resin

Description


The Green Pin® Short Bow Socket is a closed spelter socket. The socket is made from cast alloy steel, while galvanization ensures its long-term durability. The Green Pin® Short Bow Socket is available for wire rope with a diameter from 1 1/4 - 1 3/8" up to 4 1/4 - 4 1/2" and can be used in combination with the Socket Lock Socketing Resin.

Product details


  • ProductcodeG-6416
  • MaterialCast alloy steel
  • Finishhot dipped galvanized
  • Certification 2.1 2.2 3.1 CE
www.greenpin.com
Green Pin® Short Bow Socket
Technical specifications in milimeters
Article code minimum breaking load diameter wire rope A length B width C thickness bow D length eye E width eye F opening Net weight
(kg)
SKGSB032 140 31 - 36 262 132 38 83 75 39 7.28
SKGSB038 160 37 - 42 300 147 38 103 92 44 10.0
SKGSB045 200 43 - 48 348 178 42 120 112 51 16
SKGSB050 250 49 - 54 390 200 54 132 120 57 32
SKGSB057 320 55 - 60 440 220 62 148 135 63 28
SKGSB065 400 61 - 68 468 250 68 165 150 73 56
SKGSB070 500 69 - 75 540 274 75 175 164 79 68
SKGSB075 600 76 - 80 585 295 76 195 175 86 69.0
SKGSB080 700 81 - 86 625 320 82 216 194 92 120
SKGSB085 800 87 - 93 670 350 92 220 202 99 111
SKGSB095 900 94 - 102 700 375 100 235 215 105 190
SKGSB102 1000 108 - 115 800 410 110 270 240 115 250
www.greenpin.com
Green Pin® Short Bow Socket
Technical specifications in milimeters
Article code minimum breaking load diameter wire rope A length B width C thickness bow D length eye E width eye F opening Net weight
(kg)
SKGSB032 140 31 - 36 262 132 38 83 75 39 7.28
SKGSB038 160 37 - 42 300 147 38 103 92 44 10.0
SKGSB045 200 43 - 48 348 178 42 120 112 51 16
SKGSB050 250 49 - 54 390 200 54 132 120 57 32
SKGSB057 320 55 - 60 440 220 62 148 135 63 28
SKGSB065 400 61 - 68 468 250 68 165 150 73 56
SKGSB070 500 69 - 75 540 274 75 175 164 79 68
SKGSB075 600 76 - 80 585 295 76 195 175 86 69.0
SKGSB080 700 81 - 86 625 320 82 216 194 92 120
SKGSB085 800 87 - 93 670 350 92 220 202 99 111
SKGSB095 900 94 - 102 700 375 100 235 215 105 190
SKGSB102 1000 108 - 115 800 410 110 270 240 115 250
www.greenpin.com
Green Pin® Short Bow Socket
Technical specifications in inches
Article code minimum breaking load diameter wire rope (inch) A length (inch) B width (inch) C thickness bow (inch) D length eye (inch) E width eye (inch) F opening (inch) Net weight
(LBS)
SKGSB032 140 1 1/4 - 1 3/8 10 5/16 5 3/16 1 1/2 3 9/32 2 15/16 1 17/32 16.0
SKGSB038 160 1 1/2 - 1 5/8 11 13/16 5 25/32 1 1/2 4 1/16 3 5/8 1 23/32 22.1
SKGSB045 200 1 3/4 - 1 7/8 13 11/16 7 1 21/32 4 23/32 4 13/32 2 35.3
SKGSB050 250 2 - 2 1/8 15 11/32 7 7/8 2 1/8 5 3/16 4 23/32 2 1/4 70.6
SKGSB057 320 2 1/4 - 2 3/8 17 5/16 8 21/32 2 7/16 5 13/16 5 5/16 2 15/32 61.7
SKGSB065 400 2 1/2 - 2 5/8 18 7/16 9 27/32 2 11/16 6 1/2 5 29/32 2 7/8 123
SKGSB070 500 2 3/4 - 2 7/8 21 1/4 10 25/32 2 15/16 6 7/8 6 15/32 3 1/8 150
SKGSB075 600 3 - 3 1/8 23 1/32 11 5/8 3 7 11/16 6 7/8 3 1/2 152
SKGSB080 700 3 1/4 - 3 3/8 24 19/32 12 19/32 3 7/32 8 1/2 7 5/8 3 5/8 265
SKGSB085 800 3 1/2 - 3 5/8 26 3/8 13 25/32 3 5/8 8 21/32 7 15/16 3 29/32 245
SKGSB095 900 3 3/4 - 4 27 9/16 14 3/4 3 15/16 9 1/4 8 15/32 4 1/4 419
SKGSB102 1000 4 1/4 - 4 1/2 31 1/2 16 5/32 4 11/32 10 5/8 9 7/16 4 17/32 551
www.greenpin.com
Green Pin® Short Bow Socket
Technical specifications in inches
Article code minimum breaking load diameter wire rope (inch) A length (inch) B width (inch) C thickness bow (inch) D length eye (inch) E width eye (inch) F opening (inch) Net weight
(LBS)
SKGSB032 140 1 1/4 - 1 3/8 10 5/16 5 3/16 1 1/2 3 9/32 2 15/16 1 17/32 16.0
SKGSB038 160 1 1/2 - 1 5/8 11 13/16 5 25/32 1 1/2 4 1/16 3 5/8 1 23/32 22.1
SKGSB045 200 1 3/4 - 1 7/8 13 11/16 7 1 21/32 4 23/32 4 13/32 2 35.3
SKGSB050 250 2 - 2 1/8 15 11/32 7 7/8 2 1/8 5 3/16 4 23/32 2 1/4 70.6
SKGSB057 320 2 1/4 - 2 3/8 17 5/16 8 21/32 2 7/16 5 13/16 5 5/16 2 15/32 61.7
SKGSB065 400 2 1/2 - 2 5/8 18 7/16 9 27/32 2 11/16 6 1/2 5 29/32 2 7/8 123
SKGSB070 500 2 3/4 - 2 7/8 21 1/4 10 25/32 2 15/16 6 7/8 6 15/32 3 1/8 150
SKGSB075 600 3 - 3 1/8 23 1/32 11 5/8 3 7 11/16 6 7/8 3 1/2 152
SKGSB080 700 3 1/4 - 3 3/8 24 19/32 12 19/32 3 7/32 8 1/2 7 5/8 3 5/8 265
SKGSB085 800 3 1/2 - 3 5/8 26 3/8 13 25/32 3 5/8 8 21/32 7 15/16 3 29/32 245
SKGSB095 900 3 3/4 - 4 27 9/16 14 3/4 3 15/16 9 1/4 8 15/32 4 1/4 419
SKGSB102 1000 4 1/4 - 4 1/2 31 1/2 16 5/32 4 11/32 10 5/8 9 7/16 4 17/32 551
www.greenpin.com
Green Pin® Short Bow Socket
Technical drawing
G-6416 schematic
