Green Pin® EE Turnbuckle

Turnbuckle with eye-eye end-fitting, generally to ASTM F1145-92
    Highlights
  • Can be used for both lifting and lashing
  • Galvanization assures long-term durability
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
    • Cad drawing Pdf / Print
Description

The Green Pin® EE Turnbuckle is a turnbuckle with eye-eye end-fittings, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin® EE Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8" (take up of 6") up to 2 3/4" (take up of 24").

Product details
  • Productcode
    G-6311
  • Material
    drop forged high tensile steel SAE 1035 or 1045
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    hot dipped galvanized
  • Temp. range
    -20°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • CE
  • Standard
    generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Contact
Technical specifications in
mminch

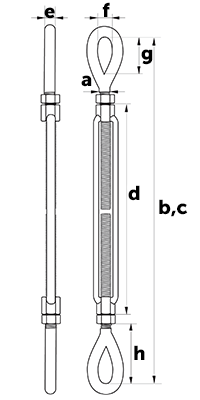

To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
take up (inch)
take up (inch)
diameter thread (inch)
A
Green Pin<sup>®</sup> EE Turnbuckle
diameter thread (inch)
A
Green Pin<sup>®</sup> EE Turnbuckle
length closed position (inch)
B
Green Pin<sup>®</sup> EE Turnbuckle
length closed position (mm)
B
Green Pin<sup>®</sup> EE Turnbuckle
length open position (inch)
C
Green Pin<sup>®</sup> EE Turnbuckle
length open position (mm)
C
Green Pin<sup>®</sup> EE Turnbuckle
length (inch)
D
Green Pin<sup>®</sup> EE Turnbuckle
length (mm)
D
Green Pin<sup>®</sup> EE Turnbuckle
diameter (inch)
E
Green Pin<sup>®</sup> EE Turnbuckle
diameter (mm)
E
Green Pin<sup>®</sup> EE Turnbuckle
width inside (inch)
F
Green Pin<sup>®</sup> EE Turnbuckle
width inside (mm)
F
Green Pin<sup>®</sup> EE Turnbuckle
length inside (inch)
G
Green Pin<sup>®</sup> EE Turnbuckle
length inside (mm)
G
Green Pin<sup>®</sup> EE Turnbuckle
length closed position (inch)
H
Green Pin<sup>®</sup> EE Turnbuckle
length closed position (mm)
H
Green Pin<sup>®</sup> EE Turnbuckle
Net weight (KG) Net weight (LBS)
PDF SSGPOO1006 0,54 6 3/8 292 428 183 10 13 29 49 0.48
PDF SSGPOO1006 0,54 6 3/8 11 17/32 16 7/8 7 3/16 13/32 1/2 1 5/32 1 15/16 1.05
PDF SSGPOO1206 1 6 1/2 325 455 193 12 18 36 58 0.81
PDF SSGPOO1206 1 6 1/2 12 25/32 17 15/16 7 19/32 15/32 23/32 1 7/16 2 9/32 1.78
PDF SSGPOO1209 1 9 1/2 400 608 270 12 18 36 57 1.07
PDF SSGPOO1209 1 9 1/2 15 3/4 23 15/16 10 5/8 15/32 23/32 1 7/16 2 1/4 2.36
PDF SSGPOO1212 1 12 1/2 476 760 346 12 18 36 57 1.29
PDF SSGPOO1212 1 12 1/2 18 3/4 29 29/32 13 5/8 15/32 23/32 1 7/16 2 1/4 2.84
PDF SSGPOO1606 1,59 6 5/8 380 503 203 14 21 45 79 1.33
PDF SSGPOO1606 1,59 6 5/8 14 15/16 19 13/16 8 9/16 13/16 1 25/32 3 1/8 2.92
PDF SSGPOO1609 1,59 9 5/8 455 656 280 14 21 45 78 1.61
PDF SSGPOO1609 1,59 9 5/8 17 15/16 25 13/16 11 1/32 9/16 13/16 1 25/32 3 3/32 3.56
PDF SSGPOO1612 1,59 12 5/8 531 808 356 14 21 45 78 1.96
PDF SSGPOO1612 1,59 12 5/8 20 29/32 31 13/16 14 9/16 13/16 1 25/32 3 3/32 4.32
PDF SSGPOO1906 2,36 6 3/4 413 532 214 17 26 54 89 2.03
PDF SSGPOO1906 2,36 6 3/4 16 9/32 20 15/16 8 7/16 11/16 1 1/32 2 1/8 3 17/32 4.48
PDF SSGPOO1909 2,36 9 3/4 490 685 291 17 26 54 89 2.47
PDF SSGPOO1909 2,36 9 3/4 19 5/16 26 15/16 11 1/2 11/16 1 1/32 2 1/8 3 17/32 5.44
PDF SSGPOO1912 2,36 12 3/4 564 837 367 17 26 54 88 2.90
PDF SSGPOO1912 2,36 12 3/4 22 3/16 32 15/16 14 7/16 11/16 1 1/32 2 1/8 3 1/2 6.40
PDF SSGPOO1918 2,36 18 3/4 718 1143 519 17 26 54 89 3.94
PDF SSGPOO1918 2,36 18 3/4 28 1/4 45 20 7/16 11/16 1 1/32 2 1/8 3 17/32 8.68
PDF SSGPOO2212 3,27 12 7/8 604 870 377 20 32 61 101 4.31
PDF SSGPOO2212 3,27 12 7/8 23 25/32 34 1/4 14 13/16 25/32 1 9/32 2 3/8 3 31/32 9.51
PDF SSGPOO2218 3,27 18 7/8 756 1174 529 20 32 61 101 5.51
PDF SSGPOO2218 3,27 18 7/8 29 3/4 46 7/32 20 13/16 25/32 1 9/32 2 3/8 3 31/32 12.2
PDF SSGPOO2506 4,54 6 1 498 604 234 24 37 76 118 4.23
PDF SSGPOO2506 4,54 6 1 19 5/8 23 25/32 9 1/4 15/16 1 1/2 3 4 5/8 9.32
PDF SSGPOO2512 4,54 12 1 649 909 387 24 37 76 117 5.75
PDF SSGPOO2512 4,54 12 1 25 9/16 35 25/32 15 1/4 15/16 1 1/2 3 4 19/32 12.7
PDF SSGPOO2518 4,54 18 1 801 1215 539 24 37 76 117 7.27
PDF SSGPOO2518 4,54 18 1 31 17/32 47 27/32 21 1/4 15/16 1 1/2 3 4 19/32 16.0
PDF SSGPOO2524 4,5 24 1 952 1518 692 24 37 76 116 7.80
PDF SSGPOO2524 4,5 24 1 37 1/2 59 25/32 27 1/4 15/16 1 1/2 3 4 9/16 17.2
PDF SSGPOO3212 6,9 12 1 1/4 712 985 385 29 47 91 145 9.28
PDF SSGPOO3212 6,9 12 1 1/4 28 38 25/32 15 5/32 1 5/32 1 7/8 3 19/32 5 23/32 20.5
PDF SSGPOO3218 6,9 18 1 1/4 862 1287 537 29 47 91 144 11.1
PDF SSGPOO3218 6,9 18 1 1/4 33 15/16 50 11/16 21 5/32 1 5/32 1 7/8 3 19/32 5 11/16 24.5
PDF SSGPOO3224 6,9 24 1 1/4 1015 1592 690 29 47 91 144 12.1
PDF SSGPOO3224 6,9 24 1 1/4 39 31/32 60 7/32 27 5/32 1 5/32 1 7/8 3 19/32 5 11/16 26.6
PDF SSGPOO3812 9,71 12 1 1/2 756 1023 401 32 55 106 156 12.6
PDF SSGPOO3812 9,71 12 1 1/2 29 3/4 40 9/32 15 25/32 1 9/32 2 5/32 4 5/32 6 1/8 27.7
PDF SSGPOO3818 9,71 18 1 1/2 916 1335 553 32 55 106 160 15.8
PDF SSGPOO3818 9,71 18 1 1/2 36 1/32 52 9/16 21 25/32 1 9/32 2 5/32 4 5/32 6 9/32 34.7
PDF SSGPOO3824 9,71 24 1 1/2 1065 1636 706 32 55 106 158 17.3
PDF SSGPOO3824 9,71 24 1 1/2 41 15/16 64 13/32 27 25/32 1 9/32 2 5/32 4 5/32 6 3/16 38.2
PDF SSGPOO4518 12,7 18 1 3/4 1020 1396 577 38 61 120 197 23.9
PDF SSGPOO4518 12,7 18 1 3/4 40 5/32 54 15/16 22 23/32 1 17/32 2 3/8 4 23/32 7 3/4 52.8
PDF SSGPOO4524 12,7 24 1 3/4 1171 1703 730 38 61 120 196 26.7
PDF SSGPOO4524 12,7 24 1 3/4 46 1/8 67 1/16 28 23/32 1 17/32 2 3/8 4 23/32 7 23/32 58.8
PDF SSGPOO5024 16,8 24 2 1264 1784 748 46 69 147 230 38.3
PDF SSGPOO5024 16,8 24 2 49 25/32 70 1/4 29 7/16 1 13/16 2 23/32 5 25/32 9 3/32 84.3
PDF SSGPOO6424 27,2 24 2 1/2 1430 1934 802 51 80 165 274 65
PDF SSGPOO6424 27,2 24 2 1/2 56 5/16 76 5/32 31 9/16 2 3 5/32 6 1/2 10 25/32 143
PDF SSGPOO6924 34 24 2 3/4 1450 1988 802 57 84 178 284 84
PDF SSGPOO6924 34 24 2 3/4 57 3/32 78 9/32 31 9/16 2 1/4 3 5/16 7 11 3/16 185

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Are Green Pin® Turnbuckles suitable for lifting applications?

Green Pin® Turnbuckles G-6311, G-6312, G-6313, G-6314, G-6315, G-6323 and G-6333 are suitable for lifting applications. These items have a Proof Load equal to 2 x WLL and Minimum Breaking Load equals to 5x WLL. Of course the “Instructions for use”, as we publish them in our catalogue should be respected at all times.

Note: It is not permitted to adjust the length of the turnbuckle under full load. Tensioning below the WLL is permitted. It is advisable first to adjust roughly the length of the turnbuckle and then load the turnbuckles to a certain tension. The tension may not exceed the full capacity (WLL).

Note: that it is not permitted to lift a load by tensioning (rotating the body) the turnbuckle, as shown in the picture below:

Do not rotate turnbuckle body when lifting

FAQ-Reference PI-02-01. Revision B.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How are Green Pin® turnbuckles different?

Green Pin® turnbuckles are highly regarded in various industries for their reliability and adaptability, offering a range of specifications tailored to different operational needs. These turnbuckles come in multiple grades, reflecting their strength and load capacity, which are essential for applications ranging from maritime to construction. To discover all Green Pin® turnbuckles, visit the turnbuckles category page here.

Green Pin® EE Turnbuckle

Turnbuckle with eye-eye end-fitting, generally to ASTM F1145-92

Highlights


  • Can be used for both lifting and lashing
  • Galvanization assures long-term durability
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support

Description


The Green Pin® EE Turnbuckle is a turnbuckle with eye-eye end-fittings, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin® EE Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8" (take up of 6") up to 2 3/4" (take up of 24").

Product details


  • ProductcodeG-6311
  • Materialdrop forged high tensile steel SAE 1035 or 1045
  • Safety factorMBL equals 5 x WLL
  • Finishhot dipped galvanized
  • Certification 2.1 2.2 3.1 MTCa CE
  • Standardgenerally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
www.greenpin.com
Green Pin® EE Turnbuckle
Technical specifications in milimeters
Article code working load limit take up (inch) A diameter thread (inch) B length closed position C length open position D length E diameter F width inside G length inside H length closed position Net weight
(kg)
SSGPOO1006 0,54 6 3/8 292 428 183 10 13 29 49 0.48
SSGPOO1206 1 6 1/2 325 455 193 12 18 36 58 0.81
SSGPOO1209 1 9 1/2 400 608 270 12 18 36 57 1.07
SSGPOO1212 1 12 1/2 476 760 346 12 18 36 57 1.29
SSGPOO1606 1,59 6 5/8 380 503 203 14 21 45 79 1.33
SSGPOO1609 1,59 9 5/8 455 656 280 14 21 45 78 1.61
SSGPOO1612 1,59 12 5/8 531 808 356 14 21 45 78 1.96
SSGPOO1906 2,36 6 3/4 413 532 214 17 26 54 89 2.03
SSGPOO1909 2,36 9 3/4 490 685 291 17 26 54 89 2.47
SSGPOO1912 2,36 12 3/4 564 837 367 17 26 54 88 2.90
SSGPOO1918 2,36 18 3/4 718 1143 519 17 26 54 89 3.94
SSGPOO2212 3,27 12 7/8 604 870 377 20 32 61 101 4.31
SSGPOO2218 3,27 18 7/8 756 1174 529 20 32 61 101 5.51
SSGPOO2506 4,54 6 1 498 604 234 24 37 76 118 4.23
SSGPOO2512 4,54 12 1 649 909 387 24 37 76 117 5.75
SSGPOO2518 4,54 18 1 801 1215 539 24 37 76 117 7.27
SSGPOO2524 4,5 24 1 952 1518 692 24 37 76 116 7.80
SSGPOO3212 6,9 12 1 1/4 712 985 385 29 47 91 145 9.28
SSGPOO3218 6,9 18 1 1/4 862 1287 537 29 47 91 144 11.1
SSGPOO3224 6,9 24 1 1/4 1015 1592 690 29 47 91 144 12.1
SSGPOO3812 9,71 12 1 1/2 756 1023 401 32 55 106 156 12.6
SSGPOO3818 9,71 18 1 1/2 916 1335 553 32 55 106 160 15.8
SSGPOO3824 9,71 24 1 1/2 1065 1636 706 32 55 106 158 17.3
SSGPOO4518 12,7 18 1 3/4 1020 1396 577 38 61 120 197 23.9
SSGPOO4524 12,7 24 1 3/4 1171 1703 730 38 61 120 196 26.7
SSGPOO5024 16,8 24 2 1264 1784 748 46 69 147 230 38.3
SSGPOO6424 27,2 24 2 1/2 1430 1934 802 51 80 165 274 65
SSGPOO6924 34 24 2 3/4 1450 1988 802 57 84 178 284 84
www.greenpin.com
Green Pin® EE Turnbuckle
Technical specifications in milimeters
Article code working load limit take up (inch) A diameter thread (inch) B length closed position C length open position D length E diameter F width inside G length inside H length closed position Net weight
(kg)
SSGPOO1006 0,54 6 3/8 292 428 183 10 13 29 49 0.48
SSGPOO1206 1 6 1/2 325 455 193 12 18 36 58 0.81
SSGPOO1209 1 9 1/2 400 608 270 12 18 36 57 1.07
SSGPOO1212 1 12 1/2 476 760 346 12 18 36 57 1.29
SSGPOO1606 1,59 6 5/8 380 503 203 14 21 45 79 1.33
SSGPOO1609 1,59 9 5/8 455 656 280 14 21 45 78 1.61
SSGPOO1612 1,59 12 5/8 531 808 356 14 21 45 78 1.96
SSGPOO1906 2,36 6 3/4 413 532 214 17 26 54 89 2.03
SSGPOO1909 2,36 9 3/4 490 685 291 17 26 54 89 2.47
SSGPOO1912 2,36 12 3/4 564 837 367 17 26 54 88 2.90
SSGPOO1918 2,36 18 3/4 718 1143 519 17 26 54 89 3.94
SSGPOO2212 3,27 12 7/8 604 870 377 20 32 61 101 4.31
SSGPOO2218 3,27 18 7/8 756 1174 529 20 32 61 101 5.51
SSGPOO2506 4,54 6 1 498 604 234 24 37 76 118 4.23
SSGPOO2512 4,54 12 1 649 909 387 24 37 76 117 5.75
SSGPOO2518 4,54 18 1 801 1215 539 24 37 76 117 7.27
SSGPOO2524 4,5 24 1 952 1518 692 24 37 76 116 7.80
SSGPOO3212 6,9 12 1 1/4 712 985 385 29 47 91 145 9.28
SSGPOO3218 6,9 18 1 1/4 862 1287 537 29 47 91 144 11.1
SSGPOO3224 6,9 24 1 1/4 1015 1592 690 29 47 91 144 12.1
SSGPOO3812 9,71 12 1 1/2 756 1023 401 32 55 106 156 12.6
SSGPOO3818 9,71 18 1 1/2 916 1335 553 32 55 106 160 15.8
SSGPOO3824 9,71 24 1 1/2 1065 1636 706 32 55 106 158 17.3
SSGPOO4518 12,7 18 1 3/4 1020 1396 577 38 61 120 197 23.9
SSGPOO4524 12,7 24 1 3/4 1171 1703 730 38 61 120 196 26.7
SSGPOO5024 16,8 24 2 1264 1784 748 46 69 147 230 38.3
SSGPOO6424 27,2 24 2 1/2 1430 1934 802 51 80 165 274 65
SSGPOO6924 34 24 2 3/4 1450 1988 802 57 84 178 284 84
www.greenpin.com
Green Pin® EE Turnbuckle
Technical specifications in milimeters
Article code working load limit take up (inch) A diameter thread (inch) B length closed position C length open position D length E diameter F width inside G length inside H length closed position Net weight
(kg)
SSGPOO1006 0,54 6 3/8 292 428 183 10 13 29 49 0.48
SSGPOO1206 1 6 1/2 325 455 193 12 18 36 58 0.81
SSGPOO1209 1 9 1/2 400 608 270 12 18 36 57 1.07
SSGPOO1212 1 12 1/2 476 760 346 12 18 36 57 1.29
SSGPOO1606 1,59 6 5/8 380 503 203 14 21 45 79 1.33
SSGPOO1609 1,59 9 5/8 455 656 280 14 21 45 78 1.61
SSGPOO1612 1,59 12 5/8 531 808 356 14 21 45 78 1.96
SSGPOO1906 2,36 6 3/4 413 532 214 17 26 54 89 2.03
SSGPOO1909 2,36 9 3/4 490 685 291 17 26 54 89 2.47
SSGPOO1912 2,36 12 3/4 564 837 367 17 26 54 88 2.90
SSGPOO1918 2,36 18 3/4 718 1143 519 17 26 54 89 3.94
SSGPOO2212 3,27 12 7/8 604 870 377 20 32 61 101 4.31
SSGPOO2218 3,27 18 7/8 756 1174 529 20 32 61 101 5.51
SSGPOO2506 4,54 6 1 498 604 234 24 37 76 118 4.23
SSGPOO2512 4,54 12 1 649 909 387 24 37 76 117 5.75
SSGPOO2518 4,54 18 1 801 1215 539 24 37 76 117 7.27
SSGPOO2524 4,5 24 1 952 1518 692 24 37 76 116 7.80
SSGPOO3212 6,9 12 1 1/4 712 985 385 29 47 91 145 9.28
SSGPOO3218 6,9 18 1 1/4 862 1287 537 29 47 91 144 11.1
SSGPOO3224 6,9 24 1 1/4 1015 1592 690 29 47 91 144 12.1
SSGPOO3812 9,71 12 1 1/2 756 1023 401 32 55 106 156 12.6
SSGPOO3818 9,71 18 1 1/2 916 1335 553 32 55 106 160 15.8
SSGPOO3824 9,71 24 1 1/2 1065 1636 706 32 55 106 158 17.3
SSGPOO4518 12,7 18 1 3/4 1020 1396 577 38 61 120 197 23.9
SSGPOO4524 12,7 24 1 3/4 1171 1703 730 38 61 120 196 26.7
SSGPOO5024 16,8 24 2 1264 1784 748 46 69 147 230 38.3
SSGPOO6424 27,2 24 2 1/2 1430 1934 802 51 80 165 274 65
SSGPOO6924 34 24 2 3/4 1450 1988 802 57 84 178 284 84
www.greenpin.com
Green Pin® EE Turnbuckle
Technical specifications in inches
Article code working load limit take up (inch) A diameter thread (inch) B length closed position (inch) C length open position (inch) D length (inch) E diameter (inch) F width inside (inch) G length inside (inch) H length closed position (inch) Net weight
(LBS)
SSGPOO1006 0,54 6 3/8 11 17/32 16 7/8 7 3/16 13/32 1/2 1 5/32 1 15/16 1.05
SSGPOO1206 1 6 1/2 12 25/32 17 15/16 7 19/32 15/32 23/32 1 7/16 2 9/32 1.78
SSGPOO1209 1 9 1/2 15 3/4 23 15/16 10 5/8 15/32 23/32 1 7/16 2 1/4 2.36
SSGPOO1212 1 12 1/2 18 3/4 29 29/32 13 5/8 15/32 23/32 1 7/16 2 1/4 2.84
SSGPOO1606 1,59 6 5/8 14 15/16 19 13/16 8 9/16 13/16 1 25/32 3 1/8 2.92
SSGPOO1609 1,59 9 5/8 17 15/16 25 13/16 11 1/32 9/16 13/16 1 25/32 3 3/32 3.56
SSGPOO1612 1,59 12 5/8 20 29/32 31 13/16 14 9/16 13/16 1 25/32 3 3/32 4.32
SSGPOO1906 2,36 6 3/4 16 9/32 20 15/16 8 7/16 11/16 1 1/32 2 1/8 3 17/32 4.48
SSGPOO1909 2,36 9 3/4 19 5/16 26 15/16 11 1/2 11/16 1 1/32 2 1/8 3 17/32 5.44
SSGPOO1912 2,36 12 3/4 22 3/16 32 15/16 14 7/16 11/16 1 1/32 2 1/8 3 1/2 6.40
SSGPOO1918 2,36 18 3/4 28 1/4 45 20 7/16 11/16 1 1/32 2 1/8 3 17/32 8.68
SSGPOO2212 3,27 12 7/8 23 25/32 34 1/4 14 13/16 25/32 1 9/32 2 3/8 3 31/32 9.51
SSGPOO2218 3,27 18 7/8 29 3/4 46 7/32 20 13/16 25/32 1 9/32 2 3/8 3 31/32 12.2
SSGPOO2506 4,54 6 1 19 5/8 23 25/32 9 1/4 15/16 1 1/2 3 4 5/8 9.32
SSGPOO2512 4,54 12 1 25 9/16 35 25/32 15 1/4 15/16 1 1/2 3 4 19/32 12.7
SSGPOO2518 4,54 18 1 31 17/32 47 27/32 21 1/4 15/16 1 1/2 3 4 19/32 16.0
SSGPOO2524 4,5 24 1 37 1/2 59 25/32 27 1/4 15/16 1 1/2 3 4 9/16 17.2
SSGPOO3212 6,9 12 1 1/4 28 38 25/32 15 5/32 1 5/32 1 7/8 3 19/32 5 23/32 20.5
SSGPOO3218 6,9 18 1 1/4 33 15/16 50 11/16 21 5/32 1 5/32 1 7/8 3 19/32 5 11/16 24.5
SSGPOO3224 6,9 24 1 1/4 39 31/32 60 7/32 27 5/32 1 5/32 1 7/8 3 19/32 5 11/16 26.6
SSGPOO3812 9,71 12 1 1/2 29 3/4 40 9/32 15 25/32 1 9/32 2 5/32 4 5/32 6 1/8 27.7
SSGPOO3818 9,71 18 1 1/2 36 1/32 52 9/16 21 25/32 1 9/32 2 5/32 4 5/32 6 9/32 34.7
SSGPOO3824 9,71 24 1 1/2 41 15/16 64 13/32 27 25/32 1 9/32 2 5/32 4 5/32 6 3/16 38.2
SSGPOO4518 12,7 18 1 3/4 40 5/32 54 15/16 22 23/32 1 17/32 2 3/8 4 23/32 7 3/4 52.8
SSGPOO4524 12,7 24 1 3/4 46 1/8 67 1/16 28 23/32 1 17/32 2 3/8 4 23/32 7 23/32 58.8
SSGPOO5024 16,8 24 2 49 25/32 70 1/4 29 7/16 1 13/16 2 23/32 5 25/32 9 3/32 84.3
SSGPOO6424 27,2 24 2 1/2 56 5/16 76 5/32 31 9/16 2 3 5/32 6 1/2 10 25/32 143
SSGPOO6924 34 24 2 3/4 57 3/32 78 9/32 31 9/16 2 1/4 3 5/16 7 11 3/16 185
www.greenpin.com
Green Pin® EE Turnbuckle
Technical specifications in inches
Article code working load limit take up (inch) A diameter thread (inch) B length closed position (inch) C length open position (inch) D length (inch) E diameter (inch) F width inside (inch) G length inside (inch) H length closed position (inch) Net weight
(LBS)
SSGPOO1006 0,54 6 3/8 11 17/32 16 7/8 7 3/16 13/32 1/2 1 5/32 1 15/16 1.05
SSGPOO1206 1 6 1/2 12 25/32 17 15/16 7 19/32 15/32 23/32 1 7/16 2 9/32 1.78
SSGPOO1209 1 9 1/2 15 3/4 23 15/16 10 5/8 15/32 23/32 1 7/16 2 1/4 2.36
SSGPOO1212 1 12 1/2 18 3/4 29 29/32 13 5/8 15/32 23/32 1 7/16 2 1/4 2.84
SSGPOO1606 1,59 6 5/8 14 15/16 19 13/16 8 9/16 13/16 1 25/32 3 1/8 2.92
SSGPOO1609 1,59 9 5/8 17 15/16 25 13/16 11 1/32 9/16 13/16 1 25/32 3 3/32 3.56
SSGPOO1612 1,59 12 5/8 20 29/32 31 13/16 14 9/16 13/16 1 25/32 3 3/32 4.32
SSGPOO1906 2,36 6 3/4 16 9/32 20 15/16 8 7/16 11/16 1 1/32 2 1/8 3 17/32 4.48
SSGPOO1909 2,36 9 3/4 19 5/16 26 15/16 11 1/2 11/16 1 1/32 2 1/8 3 17/32 5.44
SSGPOO1912 2,36 12 3/4 22 3/16 32 15/16 14 7/16 11/16 1 1/32 2 1/8 3 1/2 6.40
SSGPOO1918 2,36 18 3/4 28 1/4 45 20 7/16 11/16 1 1/32 2 1/8 3 17/32 8.68
SSGPOO2212 3,27 12 7/8 23 25/32 34 1/4 14 13/16 25/32 1 9/32 2 3/8 3 31/32 9.51
SSGPOO2218 3,27 18 7/8 29 3/4 46 7/32 20 13/16 25/32 1 9/32 2 3/8 3 31/32 12.2
SSGPOO2506 4,54 6 1 19 5/8 23 25/32 9 1/4 15/16 1 1/2 3 4 5/8 9.32
SSGPOO2512 4,54 12 1 25 9/16 35 25/32 15 1/4 15/16 1 1/2 3 4 19/32 12.7
SSGPOO2518 4,54 18 1 31 17/32 47 27/32 21 1/4 15/16 1 1/2 3 4 19/32 16.0
SSGPOO2524 4,5 24 1 37 1/2 59 25/32 27 1/4 15/16 1 1/2 3 4 9/16 17.2
SSGPOO3212 6,9 12 1 1/4 28 38 25/32 15 5/32 1 5/32 1 7/8 3 19/32 5 23/32 20.5
SSGPOO3218 6,9 18 1 1/4 33 15/16 50 11/16 21 5/32 1 5/32 1 7/8 3 19/32 5 11/16 24.5
SSGPOO3224 6,9 24 1 1/4 39 31/32 60 7/32 27 5/32 1 5/32 1 7/8 3 19/32 5 11/16 26.6
SSGPOO3812 9,71 12 1 1/2 29 3/4 40 9/32 15 25/32 1 9/32 2 5/32 4 5/32 6 1/8 27.7
SSGPOO3818 9,71 18 1 1/2 36 1/32 52 9/16 21 25/32 1 9/32 2 5/32 4 5/32 6 9/32 34.7
SSGPOO3824 9,71 24 1 1/2 41 15/16 64 13/32 27 25/32 1 9/32 2 5/32 4 5/32 6 3/16 38.2
SSGPOO4518 12,7 18 1 3/4 40 5/32 54 15/16 22 23/32 1 17/32 2 3/8 4 23/32 7 3/4 52.8
SSGPOO4524 12,7 24 1 3/4 46 1/8 67 1/16 28 23/32 1 17/32 2 3/8 4 23/32 7 23/32 58.8
SSGPOO5024 16,8 24 2 49 25/32 70 1/4 29 7/16 1 13/16 2 23/32 5 25/32 9 3/32 84.3
SSGPOO6424 27,2 24 2 1/2 56 5/16 76 5/32 31 9/16 2 3 5/32 6 1/2 10 25/32 143
SSGPOO6924 34 24 2 3/4 57 3/32 78 9/32 31 9/16 2 1/4 3 5/16 7 11 3/16 185
www.greenpin.com
Green Pin® EE Turnbuckle
Technical specifications in inches
Article code working load limit take up (inch) A diameter thread (inch) B length closed position (inch) C length open position (inch) D length (inch) E diameter (inch) F width inside (inch) G length inside (inch) H length closed position (inch) Net weight
(LBS)
SSGPOO1006 0,54 6 3/8 11 17/32 16 7/8 7 3/16 13/32 1/2 1 5/32 1 15/16 1.05
SSGPOO1206 1 6 1/2 12 25/32 17 15/16 7 19/32 15/32 23/32 1 7/16 2 9/32 1.78
SSGPOO1209 1 9 1/2 15 3/4 23 15/16 10 5/8 15/32 23/32 1 7/16 2 1/4 2.36
SSGPOO1212 1 12 1/2 18 3/4 29 29/32 13 5/8 15/32 23/32 1 7/16 2 1/4 2.84
SSGPOO1606 1,59 6 5/8 14 15/16 19 13/16 8 9/16 13/16 1 25/32 3 1/8 2.92
SSGPOO1609 1,59 9 5/8 17 15/16 25 13/16 11 1/32 9/16 13/16 1 25/32 3 3/32 3.56
SSGPOO1612 1,59 12 5/8 20 29/32 31 13/16 14 9/16 13/16 1 25/32 3 3/32 4.32
SSGPOO1906 2,36 6 3/4 16 9/32 20 15/16 8 7/16 11/16 1 1/32 2 1/8 3 17/32 4.48
SSGPOO1909 2,36 9 3/4 19 5/16 26 15/16 11 1/2 11/16 1 1/32 2 1/8 3 17/32 5.44
SSGPOO1912 2,36 12 3/4 22 3/16 32 15/16 14 7/16 11/16 1 1/32 2 1/8 3 1/2 6.40
SSGPOO1918 2,36 18 3/4 28 1/4 45 20 7/16 11/16 1 1/32 2 1/8 3 17/32 8.68
SSGPOO2212 3,27 12 7/8 23 25/32 34 1/4 14 13/16 25/32 1 9/32 2 3/8 3 31/32 9.51
SSGPOO2218 3,27 18 7/8 29 3/4 46 7/32 20 13/16 25/32 1 9/32 2 3/8 3 31/32 12.2
SSGPOO2506 4,54 6 1 19 5/8 23 25/32 9 1/4 15/16 1 1/2 3 4 5/8 9.32
SSGPOO2512 4,54 12 1 25 9/16 35 25/32 15 1/4 15/16 1 1/2 3 4 19/32 12.7
SSGPOO2518 4,54 18 1 31 17/32 47 27/32 21 1/4 15/16 1 1/2 3 4 19/32 16.0
SSGPOO2524 4,5 24 1 37 1/2 59 25/32 27 1/4 15/16 1 1/2 3 4 9/16 17.2
SSGPOO3212 6,9 12 1 1/4 28 38 25/32 15 5/32 1 5/32 1 7/8 3 19/32 5 23/32 20.5
SSGPOO3218 6,9 18 1 1/4 33 15/16 50 11/16 21 5/32 1 5/32 1 7/8 3 19/32 5 11/16 24.5
SSGPOO3224 6,9 24 1 1/4 39 31/32 60 7/32 27 5/32 1 5/32 1 7/8 3 19/32 5 11/16 26.6
SSGPOO3812 9,71 12 1 1/2 29 3/4 40 9/32 15 25/32 1 9/32 2 5/32 4 5/32 6 1/8 27.7
SSGPOO3818 9,71 18 1 1/2 36 1/32 52 9/16 21 25/32 1 9/32 2 5/32 4 5/32 6 9/32 34.7
SSGPOO3824 9,71 24 1 1/2 41 15/16 64 13/32 27 25/32 1 9/32 2 5/32 4 5/32 6 3/16 38.2
SSGPOO4518 12,7 18 1 3/4 40 5/32 54 15/16 22 23/32 1 17/32 2 3/8 4 23/32 7 3/4 52.8
SSGPOO4524 12,7 24 1 3/4 46 1/8 67 1/16 28 23/32 1 17/32 2 3/8 4 23/32 7 23/32 58.8
SSGPOO5024 16,8 24 2 49 25/32 70 1/4 29 7/16 1 13/16 2 23/32 5 25/32 9 3/32 84.3
SSGPOO6424 27,2 24 2 1/2 56 5/16 76 5/32 31 9/16 2 3 5/32 6 1/2 10 25/32 143
SSGPOO6924 34 24 2 3/4 57 3/32 78 9/32 31 9/16 2 1/4 3 5/16 7 11 3/16 185
www.greenpin.com
Green Pin® EE Turnbuckle
Technical drawing
Green Pin<sup>®</sup> EE Turnbuckle
www.greenpin.com
