Green Pin® Connecting Link EN1677-1
Grade 8 connecting link EN1677-1
- Highlights
- Reliable Green Pin® quality and support
- Superior stock availability of 99%

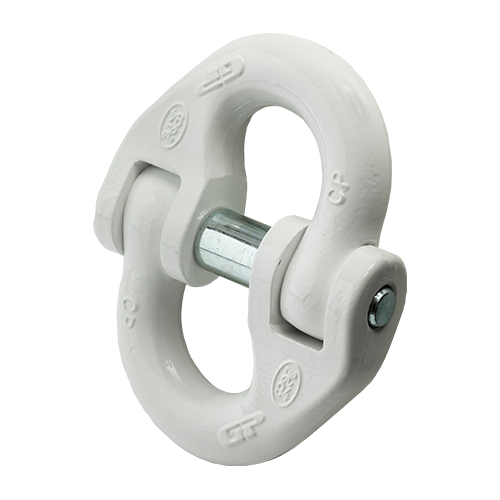

The Green Pin® Connecting Link EN1677-1 is a grade 8 connecting link according to European standard for components for sling EN 1677-1. These connectors provide fast, easy assembly by using just a hammer. It is designed to connect eye and eye swivel hooks and master links to grade 8 chains all together. The spring bush ensures that the pin stays secured in place within the two halves of the connecting link. The Green Pin® Connecting Link EN1677-1 is available in a range to suit 6 mm up to 32 mm grade 8 chain.
More-
ProductcodeMJ
-
Materialalloy steel, Grade 8, quenched and tempered
-
Safety factorMBL equals 4 x WLL
-
Finishpainted white
-
Temp. range-40°C up to +200°C
-
Certification
- 2.1
- 2.2
- 3.1
- MTCa
- MPIb
- DGUV
-
StandardEN 1677-1
| Article code |
working load limit
(ton)
|
working load limit
(ton)
|
for chain diameter
(mm)
|
for chain diameter (inch)
|
diameter (inch)
A
|
diameter
(mm)
A
|
width outside (inch)
B
|
width outside
(mm)
B
|
width inside (inch)
C
|
width inside
(mm)
C
|
length inside (inch)
D
|
length inside
(mm)
D
|
length inside (inch)
E
|
length inside
(mm)
E
|
diameter eye (inch)
F
|
diameter eye
(mm)
F
|
width inside (inch)
G
|
width inside
(mm)
G
|
Net weight (KG) | Net weight (LBS) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPMJ10 | 3,2 | 10 | 10 | 66 | 18 | 23 | 64 | 18 | 23 | 0.28 | |||||||||||
| GPMJ10 | 3,2 | 3/8 | 13/32 | 2 19/32 | 23/32 | 29/32 | 2 17/32 | 23/32 | 29/32 | 0.62 | |||||||||||
| GPMJ13 | 5,4 | 13 | 14 | 83 | 21 | 32 | 85 | 24 | 28 | 0.64 | |||||||||||
| GPMJ13 | 5,4 | 1/2 | 9/16 | 3 9/32 | 13/16 | 1 1/4 | 3 11/32 | 15/16 | 1 3/32 | 1.40 | |||||||||||
| GPMJ16 | 8,2 | 16 | 17 | 103 | 25 | 40 | 105 | 28 | 34 | 1.16 | |||||||||||
| GPMJ16 | 8,2 | 5/8 | 21/32 | 4 1/16 | 31/32 | 1 9/16 | 4 1/8 | 1 3/32 | 1 11/32 | 2.56 | |||||||||||
| GPMJ18/20 | 12,8 | 18 - 20 | 21 | 120 | 33 | 50 | 129 | 33 | 42 | 1.95 | |||||||||||
| GPMJ18/20 | 12,8 | 3/4 | 13/16 | 4 23/32 | 1 5/16 | 1 31/32 | 5 3/32 | 1 5/16 | 1 21/32 | 4.31 | |||||||||||
| GPMJ22 | 15,5 | 22 | 23 | 143 | 40 | 55 | 140 | 37 | 51 | 2.94 | |||||||||||
| GPMJ22 | 15,5 | 7/8 | 29/32 | 5 5/8 | 1 9/16 | 2 5/32 | 5 1/2 | 1 15/32 | 2 | 6.49 | |||||||||||
| GPMJ26 | 21,6 | 26 | 26 | 169 | 45 | 60 | 153 | 46 | 57 | 4.12 | |||||||||||
| GPMJ26 | 21,6 | 1 | 1 1/32 | 6 5/16 | 1 25/32 | 2 3/8 | 6 1/32 | 1 13/16 | 2 1/4 | 9.09 | |||||||||||
| GPMJ32 | 32,8 | 32 | 39 | 197 | 52 | 68 | 174 | 56 | 67 | 8.30 | |||||||||||
| GPMJ32 | 32,8 | 1 1/4 | 1 17/32 | 7 3/4 | 2 2/16 | 2 11/16 | 6 27/32 | 2 7/32 | 2 5/8 | 18.3 | |||||||||||
| GPMJ6 | 1,12 | 6 | 8 | 42 | 11 | 20 | 52 | 11 | 15 | 0.09 | |||||||||||
| GPMJ6 | 1,12 | 7/32 | 5/16 | 1 21/32 | 7/16 | 25/32 | 2 2/16 | 7/16 | 19/32 | 0.20 | |||||||||||
| GPMJ7/8 | 2 | 7 - 8 | 9 | 53 | 14 | 20 | 55 | 13 | 19 | 0.15 | |||||||||||
| GPMJ7/8 | 2 | 1/4 - 5/16 | 11/32 | 2 3/32 | 9/16 | 25/32 | 2 5/32 | 1/2 | 3/4 | 0.33 |
