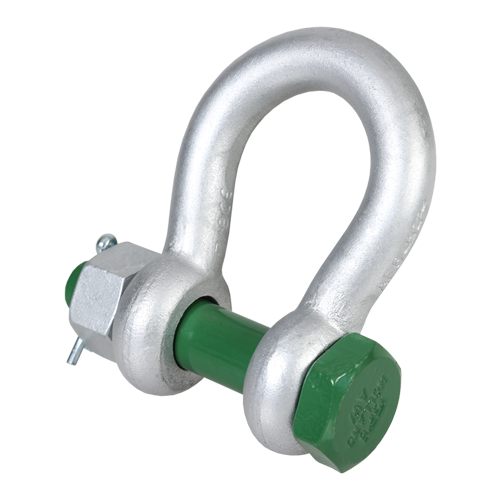

Green Pin® Bow Shackle NS9415 BN

Standard bow shackle with safety bolt acc. to NS 9415
    Highlights
  • Ideal for aquaculture: DNV-certified to NS 9415
  • Hot dip galvanization assures long-term durability
  • Double safety (cotter pin & safety bolt)
  • Suitable for both one-leg and multi-leg systems
  • Part of Green Pin® aquaculture system
Description

The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The shackle's hot dipped galvanization ensures long-term durability as required by the NS 9415 standard, in compliance with NYTEK regulation. Green Pin® Bow Shackle NS9415 BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 up to 25 t.

Product details
  • Productcode
    G-4163BG
  • Material
    bow and pin high tensile steel, Grade 6, quenched and tempered
  • Safety factor
    MBL equals 6 x WLL
  • Finish
    hot dipped galvanized
  • Temp. range
    -40°C up to +200°C
  • Standard
    EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A and NS 9415. From 2 t and upward these shackles comply with ASME B30.26
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
diameter bow (mm)
A
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
diameter bow (inch)
A
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
diameter pin (mm)
B
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
diameter pin (inch)
B
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
diameter eye (mm)
C
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
diameter eye (inch)
C
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width eye (inch)
D
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width eye (mm)
D
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width inside (mm)
E
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width inside (inch)
E
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
length inside (inch)
F
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
length inside (mm)
F
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width bow (inch)
G
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width bow (mm)
G
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
length (inch)
H
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
length (mm)
H
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
length bolt (inch)
I
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
length bolt (mm)
I
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width (inch)
J
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
width (mm)
J
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
thickness nut (inch)
K
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
thickness nut (mm)
K
Green Pin<sup>®</sup> Bow Shackle NS9415 BN
Net weight (KG) Net weight (LBS)
PDF GPGHMBHDG13 2 13,5 16 34 13 22 51 32 89 82 58 13 0.42
PDF GPGHMBHDG13 2 1/2 5/8 1 11/32 1/2 7/8 2 1 1/4 3 1/2 3 7/32 2 9/32 1/2 0.92
PDF GPGHMBHDG16 3,25 16 19 40 16 27 64 43 110 98 75 17 0.74
PDF GPGHMBHDG16 3,25 5/8 3/4 1 9/16 5/8 1 1/16 2 17/32 1 11/16 4 11/32 3 27/32 2 15/16 21/32 1.62
PDF GPGHMBHDG19 4,75 19 22 46 19 31 76 51 129 114 89 19 1.18
PDF GPGHMBHDG19 4,75 3/4 7/8 1 13/16 3/4 1 7/32 3 2 5 3/32 4 1/2 3 1/2 3/4 2.59
PDF GPGHMBHDG22 6,5 22 25 52 22 36 83 58 144 130 102 22 1.77
PDF GPGHMBHDG22 6,5 7/8 1 2 1/16 7/8 1 13/32 3 9/32 2 9/32 5 21/32 5 1/8 4 1/32 7/8 3.90
PDF GPGHMBHDG25 8,5 25 28 59 25 43 95 68 164 150 118 25 2.58
PDF GPGHMBHDG25 8,5 1 1 1/8 2 5/16 31/32 1 11/16 3 3/4 2 11/16 6 15/32 5 29/32 4 21/32 31/32 5.69
PDF GPGHMBHDG28 9,5 28 32 66 28 47 108 75 185 166 131 27 3.66
PDF GPGHMBHDG28 9,5 1 1/8 1 1/4 2 19/32 1 3/32 1 27/32 4 1/4 2 15/16 7 9/32 6 17/32 5 5/32 1 1/16 8.07
PDF GPGHMBHDG32 12 32 35 72 32 51 115 83 201 178 147 30 4.91
PDF GPGHMBHDG32 12 1 1/4 1 3/8 2 27/32 1 1/4 2 4 17/32 3 9/32 7 29/32 7 5 25/32 1 3/16 10.8
PDF GPGHMBHDG35 13,5 35 38 80 35 57 133 92 227 197 162 33 6.54
PDF GPGHMBHDG35 13,5 1 3/8 1 1/2 3 5/32 1 3/8 2 1/4 5 1/4 3 5/8 8 15/16 7 3/4 6 3/8 1 5/16 14.4
PDF GPGHMBHDG38 17 38 42 88 38 60 146 99 249 202 175 19 8.19
PDF GPGHMBHDG38 17 1 1/2 1 5/8 3 15/32 1 1/2 2 3/8 5 3/4 3 29/32 9 13/16 7 15/16 6 7/8 3/4 18.1
PDF GPGHMBHDG45 25 45 50 103 45 74 178 126 300 249 216 23 14.0
PDF GPGHMBHDG45 25 1 3/4 2 4 1/16 1 25/32 2 29/32 7 4 31/32 11 13/16 9 13/16 8 1/2 29/32 30.8

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Where can I find the DNV NS 9415 design approval for Mooring Shackles?

Please download it here.

Are there any recommendations for additional stamping on Green Pin® Shackles?

Note: Main dimensions, general info and warnings can be found in our latest catalogue.

If the recommendations in this product information are followed performance of the shackles is guaranteed:

  • permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
  • the number of marks on a shackle is to be kept to the minimum.
  • the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
  • values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
  • recommended sizes of marks are
    • Diameter of part to be marked > recommended size of mark
    • less then 12.5 mm > 3.0 mm
    • 12.5 to 26 mm > 4.5 mm
    • over 26 mm > 6.0 mm

Typical arrangements of marks can be found in the following illustrations.

Additional stamping on Green Pin<sup>®</sup> Shackles 1

Additional stamping on Green Pin<sup>®</sup> Shackles 2

Additional stamping on Green Pin<sup>®</sup> Shackles 3

FAQ-Reference: PI-05-03. Rev 0.

Are there any recommendations for the inspection of shackles?

It is required that shackles are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteration of the material structure. Inspection should take place at least every six months and even more frequently when the shackles are used in severe operating conditions.

Shackles should be inspected to ensure that:

  • all markings are legible;
  • the body and pin are both identifiable as being of the same size, type and make;
  • the threads of the pin and the body are undamaged;
  • for a safety bolt type shackle is used with the split cotter pin;
  • the body and the pin are not distorted or unduly worn;
  • the body and pin are free from nicks, gouges, cracks and corrosion;
  • shackles are not heat treated as this may affect their Working Load Limit;
  • the shackle is not modified, repaired or reshaped by welding, heating, machining or bending as this will affect the Working Load Limit;

Remove the shackle from service if:

  • all markings are not  clearly legible;
  • body and pin can not be identified as being from same size, type and make;
  • the threads of the pin and/or body are damaged;
  • for a safety bolt type shackle the split cotter pin is missing;
  • the body and/or pin is distorted or unduly worn, the maximum allowable wear is 10% of the original dimension;
  • the body and/or pin is not free from nicks, gouges, cracks or corrosion;
  • the shackle has been exposed to any heat treatment;
  • the shackle is modified, repaired or reshaped by welding, heating, machining or bending;
  • t is expected that before the next periodical inspection any of the inspection criteria above will not be passed;

FAQ-Reference: PI-06-01. Rev: 0.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How are Green Pin® shackles different?

Green Pin® shackles are known for their robust quality and versatility, are differentiated across various attributes which suit specific needs in different industries, including construction, maritime, and heavy lifting. They differ in grade, certificate, crown width, end fitting, number of safeties and special features. To discover all Green Pin shackles, visit the shackles category page here.
