Green Pin BigMouth® Bow Shackle BN

Grade 8 bow shackle with safety bolt and wider shackle mouth
    Highlights
  • Perfect for use with wide connecting points due to wide shackle mouth
  • Ideal for towing operations
  • Galvanization assures long-term durability
  • Suitable for both one-leg and multi-leg systems
  • Superior stock availability of 99%
Description

The Green Pin BigMouth® Bow Shackle BN is a grade 8 shackle with a safety bolt and a wider shackle mouth. The wider shackle mouth enables you to connect the shackle to a connecting point (e.g. a pad eye) which is wider than usual. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin BigMouth® Bow Shackle BN. Of course, the Green Pin BigMouth® Bow Shackle BN conforms to a range of certifications. The shackle is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 4.75 up to 75 ton.

Product details
  • Productcode
    G-4263
  • Material
    bow and pin alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 6 x WLL
  • Finish
    hot dipped galvanized
  • Temp. range
    -20°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • CE
Contact

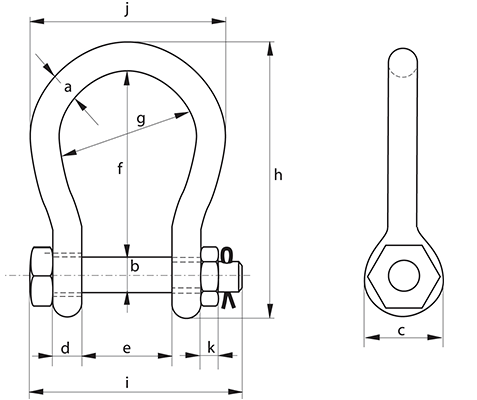

Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
diameter bow (mm)
A
G-4263 schematic
diameter bow (inch)
A
G-4263 schematic
diameter pin (inch)
B
G-4263 schematic
diameter pin (mm)
B
G-4263 schematic
diameter eye (inch)
C
G-4263 schematic
diameter eye (mm)
C
G-4263 schematic
width eye (inch)
D
G-4263 schematic
width eye (mm)
D
G-4263 schematic
width inside (inch)
E
G-4263 schematic
width inside (mm)
E
G-4263 schematic
length inside (mm)
F
G-4263 schematic
length inside (inch)
F
G-4263 schematic
width bow (mm)
G
G-4263 schematic
width bow (inch)
G
G-4263 schematic
length (mm)
H
G-4263 schematic
length (inch)
H
G-4263 schematic
length bolt (mm)
I
G-4263 schematic
length bolt (inch)
I
G-4263 schematic
width (mm)
J
G-4263 schematic
width (inch)
J
G-4263 schematic
thickness nut (inch)
K
G-4263 schematic
thickness nut (mm)
K
G-4263 schematic
Net weight (KG) Net weight (LBS)
PDF ASGHMB22 4,75 22 25 52 22 63 112 88 173 157 132 22 2.08
PDF ASGHMB22 7/8 1 2 1/16 7/8 2 15/32 4 13/32 3 15/32 6 13/16 6 3/16 5 3/16 7/8 4.59
PDF ASGHMB25 6,5 25 28 59 25 75 135 105 204 183 155 25 3.14
PDF ASGHMB25 1 1 1/8 2 5/16 31/32 2 15/16 5 5/16 4 1/8 8 1/32 7 7/32 6 3/32 31/32 6.92
PDF ASGHMB28 8,5 28 32 66 28 82 148 115 225 205 171 27 4.36
PDF ASGHMB28 1 1/8 1 1/4 2 19/32 1 3/32 3 7/32 5 13/16 4 17/32 8 27/32 8 1/16 6 23/32 1 1/16 9.61
PDF ASGHMB32 9,5 32 35 72 32 90 162 126 248 224 190 30 5.95
PDF ASGHMB32 1 1/4 1 3/8 2 27/32 1 1/4 3 17/32 6 3/8 4 31/32 9 3/4 8 13/16 7 15/32 1 3/16 13.1
PDF ASGHMB35 12 35 38 79 35 100 180 140 274 245 210 33 7.87
PDF ASGHMB35 1 3/8 1 1/2 3 1/8 1 3/8 3 15/16 7 3/32 5 1/2 10 25/32 9 21/32 8 9/32 1 5/16 17.4
PDF ASGHMB38 16 38 42 88 38 106 216 159 319 248 235 19 10.2
PDF ASGHMB38 1 1/2 1 5/8 3 15/32 1 1/2 4 3/16 8 1/2 6 1/4 12 9/16 9 3/4 9 1/4 3/4 22.6
PDF ASGHMB45 25 45 50 103 45 127 248 175 370 296 265 23 16.7
PDF ASGHMB45 1 3/4 2 4 1/16 1 25/32 5 9 3/4 6 7/8 14 9/16 11 21/32 10 7/16 29/32 36.9
PDF ASGHMB50 30 50 57 112 50 146 273 207 411 332 307 26 24.0
PDF ASGHMB50 2 2 1/4 4 13/32 1 31/32 5 3/4 10 3/4 8 5/32 16 3/16 13 1/16 12 3/32 1 1/32 52.9
PDF ASGHMB65 55 65 70 145 65 165 314 213 487 389 343 32 45
PDF ASGHMB65 2 1/2 2 3/4 5 23/32 2 9/16 6 1/2 12 3/8 8 3/8 19 3/16 15 5/16 13 1/2 1 1/4 99.2
PDF ASGHMB83 75 83 83 164 83 184 330 254 537 455 420 39 70.0
PDF ASGHMB83 3 1/4 3 1/4 6 15/32 3 9/32 7 1/4 13 10 21 5/32 17 29/32 16 17/32 1 17/32 154

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Are there any recommendations for additional stamping on Green Pin® Shackles?

Note: Main dimensions, general info and warnings can be found in our latest catalogue.

If the recommendations in this product information are followed performance of the shackles is guaranteed:

  • permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
  • the number of marks on a shackle is to be kept to the minimum.
  • the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
  • values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
  • recommended sizes of marks are
    • Diameter of part to be marked > recommended size of mark
    • less then 12.5 mm > 3.0 mm
    • 12.5 to 26 mm > 4.5 mm
    • over 26 mm > 6.0 mm

Typical arrangements of marks can be found in the following illustrations.

Additional stamping on Green Pin<sup>®</sup> Shackles 1

Additional stamping on Green Pin<sup>®</sup> Shackles 2

Additional stamping on Green Pin<sup>®</sup> Shackles 3

FAQ-Reference: PI-05-03. Rev 0.

Are there any recommendations for the inspection of shackles?

It is required that shackles are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteration of the material structure. Inspection should take place at least every six months and even more frequently when the shackles are used in severe operating conditions.

Shackles should be inspected to ensure that:

  • all markings are legible;
  • the body and pin are both identifiable as being of the same size, type and make;
  • the threads of the pin and the body are undamaged;
  • for a safety bolt type shackle is used with the split cotter pin;
  • the body and the pin are not distorted or unduly worn;
  • the body and pin are free from nicks, gouges, cracks and corrosion;
  • shackles are not heat treated as this may affect their Working Load Limit;
  • the shackle is not modified, repaired or reshaped by welding, heating, machining or bending as this will affect the Working Load Limit;

Remove the shackle from service if:

  • all markings are not  clearly legible;
  • body and pin can not be identified as being from same size, type and make;
  • the threads of the pin and/or body are damaged;
  • for a safety bolt type shackle the split cotter pin is missing;
  • the body and/or pin is distorted or unduly worn, the maximum allowable wear is 10% of the original dimension;
  • the body and/or pin is not free from nicks, gouges, cracks or corrosion;
  • the shackle has been exposed to any heat treatment;
  • the shackle is modified, repaired or reshaped by welding, heating, machining or bending;
  • t is expected that before the next periodical inspection any of the inspection criteria above will not be passed;

FAQ-Reference: PI-06-01. Rev: 0.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How are Green Pin® shackles different?

Green Pin® shackles are known for their robust quality and versatility, are differentiated across various attributes which suit specific needs in different industries, including construction, maritime, and heavy lifting. They differ in grade, certificate, crown width, end fitting, number of safeties and special features. To discover all Green Pin shackles, visit the shackles category page here.
