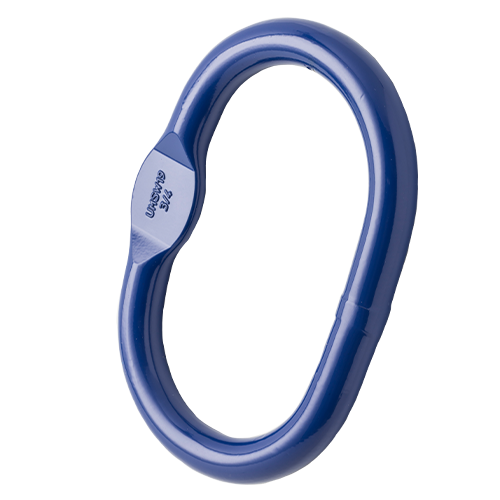

Green Pin® Wider Master Link GR 10

Grade 10 wider master link
    Highlights
  • Larger inside dimensions: fits on large crane hooks
  • Easy assembly with omega link/thimble due to flat part
  • Specially designed for 1- or 2-leg slings
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

The Green Pin® Wider Single Master Link is a grade 10 single master link with larger inside dimensions. This welded single master link is designed for 1 or 2 leg slings. This range is complementary to the existing range UMS and UMTS. The extended width enables you to connect the link to a connection point, which is wider than usual or to fit in a large crane hook. A flat part on the link enables assembly with an omega link or with a thimble. The Green Pin® Wider Master Link is available in a range with a working load limit from 4.1 t. up to 64 t.

Product details
  • Productcode
    UMSW
  • Material
    alloy steel, Grade 10, quenched and tempered
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted blue
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCb
    • MPIa
  • Standard
    ASTM 952 and follows the EN1677-4 with values for grade 100
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
diameter (inch)
A
UMS Linedrawing
diameter (mm)
A
UMS Linedrawing
length inside (inch)
B
UMS Linedrawing
length inside (mm)
B
UMS Linedrawing
width inside (inch)
C
UMS Linedrawing
width inside (mm)
C
UMS Linedrawing
thickness (inch)
D
UMS Linedrawing
thickness (mm)
D
UMS Linedrawing
Net weight (KG) Net weight (LBS)
PDF GPUMSW17 4,1 17 160 90 9 0.85
PDF GPUMSW17 4,1 21/32 6 5/16 3 17/32 11/32 1.87
PDF GPUMSW19 6,7 19 160 90 9 1.08
PDF GPUMSW19 6,7 3/4 6 5/16 3 17/32 11/32 2.38
PDF GPUMSW25 11,5 25 210 115 13 2.43
PDF GPUMSW25 11,5 1 8 9/32 4 17/32 1/2 5.36
PDF GPUMSW33 17 33 270 140 17 5.40
PDF GPUMSW33 17 1 5/16 10 5/8 5 1/2 21/32 11.9
PDF GPUMSW38 27,7 38 275 150 21 7.50
PDF GPUMSW38 27,7 1 1/2 10 13/16 5 29/32 13/16 16.5
PDF GPUMSW50 45 50 380 200 50 17.7
PDF GPUMSW50 45 2 14 31/32 7 7/8 1 31/32 38.9
PDF GPUMSW56 64 56 400 200 56 23.5
PDF GPUMSW56 64 2 1/4 15 3/4 7 7/8 2 7/32 51.8

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

Green Pin® Wider Master Link GR 10

Grade 10 wider master link

Highlights


  • Larger inside dimensions: fits on large crane hooks
  • Easy assembly with omega link/thimble due to flat part
  • Specially designed for 1- or 2-leg slings
  • Superior stock availability of 99%

Description


The Green Pin® Wider Single Master Link is a grade 10 single master link with larger inside dimensions. This welded single master link is designed for 1 or 2 leg slings. This range is complementary to the existing range UMS and UMTS. The extended width enables you to connect the link to a connection point, which is wider than usual or to fit in a large crane hook. A flat part on the link enables assembly with an omega link or with a thimble. The Green Pin® Wider Master Link is available in a range with a working load limit from 4.1 t. up to 64 t.

Product details


  • ProductcodeUMSW
  • Materialalloy steel, Grade 10, quenched and tempered
  • Safety factorMBL equals 5 x WLL
  • Finishpainted blue
  • Certification 2.1 2.2 3.1 MTCb MPIa
  • StandardASTM 952 and follows the EN1677-4 with values for grade 100
www.greenpin.com
Green Pin® Wider Master Link GR 10
Technical specifications in milimeters
Article code working load limit A diameter B length inside C width inside D thickness Net weight
(kg)
GPUMSW17 4,1 17 160 90 9 0.85
GPUMSW19 6,7 19 160 90 9 1.08
GPUMSW25 11,5 25 210 115 13 2.43
GPUMSW33 17 33 270 140 17 5.40
GPUMSW38 27,7 38 275 150 21 7.50
GPUMSW50 45 50 380 200 50 17.7
GPUMSW56 64 56 400 200 56 23.5
www.greenpin.com
Green Pin® Wider Master Link GR 10
Technical specifications in inches
Article code working load limit A diameter (inch) B length inside (inch) C width inside (inch) D thickness (inch) Net weight
(LBS)
GPUMSW17 4,1 21/32 6 5/16 3 17/32 11/32 1.87
GPUMSW19 6,7 3/4 6 5/16 3 17/32 11/32 2.38
GPUMSW25 11,5 1 8 9/32 4 17/32 1/2 5.36
GPUMSW33 17 1 5/16 10 5/8 5 1/2 21/32 11.9
GPUMSW38 27,7 1 1/2 10 13/16 5 29/32 13/16 16.5
GPUMSW50 45 2 14 31/32 7 7/8 1 31/32 38.9
GPUMSW56 64 2 1/4 15 3/4 7 7/8 2 7/32 51.8
www.greenpin.com
Green Pin® Wider Master Link GR 10
Technical drawing
UMS Linedrawing
