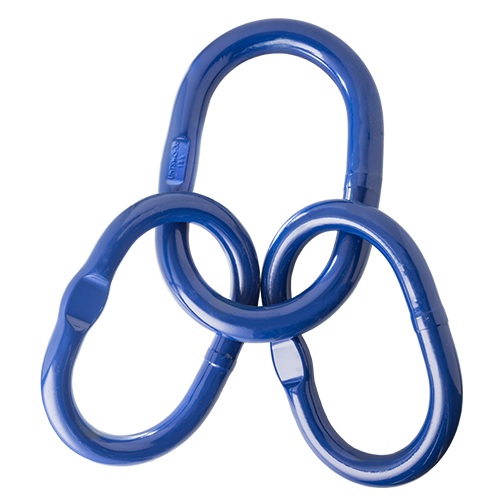

Green Pin® Wider Master Link Assembly

Grade 10 wider master link assembly
    Highlights
  • Larger inside dimensions: fits on large crane hooks
  • Easy assembly with omega link/thimble due to flat part
  • Specially designed for 3- or 4-leg slings
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

The Green Pin® Wider Master Link Assembly is a grade 10 master link assembly with larger inside dimensions. This welded master link assembly is designed for 3 or 4 leg slings. This range is complementary to the existing range UMS and UMTS. The extended width of the main link enables you to connect the link to a connection point, which is wider than usual or to fit in a large crane hook. A flat part on the link enables assembly with an omega link or with a thimble. The Green Pin® Wider Master Link Assembly is available in a range with a working load limit from 4.3 t up to 75 t.

Product details
  • Productcode
    UMTSW
  • Material
    alloy steel, Grade 10, quenched and tempered
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted blue
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCb
    • MPIa
  • Standard
    ASTM 952 and follows the EN1677-4 with values for grade 100
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
diameter (inch)
A
Green Pin<sup>®</sup> Wider Master Link Assembly
diameter (mm)
A
Green Pin<sup>®</sup> Wider Master Link Assembly
length inside (inch)
B
Green Pin<sup>®</sup> Wider Master Link Assembly
length inside (mm)
B
Green Pin<sup>®</sup> Wider Master Link Assembly
width inside (inch)
C
Green Pin<sup>®</sup> Wider Master Link Assembly
width inside (mm)
C
Green Pin<sup>®</sup> Wider Master Link Assembly
diameter (inch)
D
Green Pin<sup>®</sup> Wider Master Link Assembly
diameter (mm)
D
Green Pin<sup>®</sup> Wider Master Link Assembly
length inside (inch)
E
Green Pin<sup>®</sup> Wider Master Link Assembly
length inside (mm)
E
Green Pin<sup>®</sup> Wider Master Link Assembly
width inside (inch)
F
Green Pin<sup>®</sup> Wider Master Link Assembly
width inside (mm)
F
Green Pin<sup>®</sup> Wider Master Link Assembly
thickness (inch)
G
Green Pin<sup>®</sup> Wider Master Link Assembly
thickness (mm)
G
Green Pin<sup>®</sup> Wider Master Link Assembly
Net weight (KG) Net weight (LBS)
PDF GPUMTSW19 4,3 19 160 90 14 120 70 9 1.96
PDF GPUMTSW19 4,3 3/4 6 5/16 3 17/32 9/16 4 23/32 2 3/4 11/32 4.32
PDF GPUMTSW23 6,7 23 180 100 17 160 90 9 3.50
PDF GPUMTSW23 6,7 29/32 7 3/32 3 15/16 21/32 6 5/16 3 17/32 11/32 7.72
PDF GPUMTSW40 28,1 40 300 160 33 270 140 17 19.8
PDF GPUMTSW40 28,1 1 9/16 11 13/16 6 5/16 1 5/16 10 5/8 5 1/2 21/32 43.7
PDF GPUMTSW45 38,3 45 340 180 38 275 150 21 27.8
PDF GPUMTSW45 38,3 1 3/4 13 3/8 7 3/32 1 1/2 10 13/16 5 29/32 13/16 61.3
PDF GPUMTSW60 75 60 400 200 50 380 200 50 62.5
PDF GPUMTSW60 75 2 3/8 15 3/4 7 7/8 1 31/32 14 31/32 7 7/8 1 31/32 138

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

How are Green Pin® links different?



Green Pin® links are designed to meet a variety of industrial demands with their diverse range of specifications. These links are available in different grades, which determine their strength and load-bearing capacity, crucial for ensuring reliability in heavy-duty applications across sectors like construction, maritime, and lifting operations. To discover all Green Pin® links, visit the links category page here.

Green Pin® Wider Master Link Assembly

Grade 10 wider master link assembly

Highlights


  • Larger inside dimensions: fits on large crane hooks
  • Easy assembly with omega link/thimble due to flat part
  • Specially designed for 3- or 4-leg slings
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%

Description


The Green Pin® Wider Master Link Assembly is a grade 10 master link assembly with larger inside dimensions. This welded master link assembly is designed for 3 or 4 leg slings. This range is complementary to the existing range UMS and UMTS. The extended width of the main link enables you to connect the link to a connection point, which is wider than usual or to fit in a large crane hook. A flat part on the link enables assembly with an omega link or with a thimble. The Green Pin® Wider Master Link Assembly is available in a range with a working load limit from 4.3 t up to 75 t.

Product details


  • ProductcodeUMTSW
  • Materialalloy steel, Grade 10, quenched and tempered
  • Safety factorMBL equals 5 x WLL
  • Finishpainted blue
  • Certification 2.1 2.2 3.1 MTCb MPIa
  • StandardASTM 952 and follows the EN1677-4 with values for grade 100
www.greenpin.com
Green Pin® Wider Master Link Assembly
Technical specifications in milimeters
Article code working load limit A diameter B length inside C width inside D diameter E length inside F width inside G thickness Net weight
(kg)
GPUMTSW19 4,3 19 160 90 14 120 70 9 1.96
GPUMTSW23 6,7 23 180 100 17 160 90 9 3.50
GPUMTSW40 28,1 40 300 160 33 270 140 17 19.8
GPUMTSW45 38,3 45 340 180 38 275 150 21 27.8
GPUMTSW60 75 60 400 200 50 380 200 50 62.5
www.greenpin.com
Green Pin® Wider Master Link Assembly
Technical specifications in inches
Article code working load limit A diameter (inch) B length inside (inch) C width inside (inch) D diameter (inch) E length inside (inch) F width inside (inch) G thickness (inch) Net weight
(LBS)
GPUMTSW19 4,3 3/4 6 5/16 3 17/32 9/16 4 23/32 2 3/4 11/32 4.32
GPUMTSW23 6,7 29/32 7 3/32 3 15/16 21/32 6 5/16 3 17/32 11/32 7.72
GPUMTSW40 28,1 1 9/16 11 13/16 6 5/16 1 5/16 10 5/8 5 1/2 21/32 43.7
GPUMTSW45 38,3 1 3/4 13 3/8 7 3/32 1 1/2 10 13/16 5 29/32 13/16 61.3
GPUMTSW60 75 2 3/8 15 3/4 7 7/8 1 31/32 14 31/32 7 7/8 1 31/32 138
www.greenpin.com
Green Pin® Wider Master Link Assembly
Technical drawing
Green Pin<sup>®</sup> Wider Master Link Assembly
