Green Pin® Tapered Pin ROV Shackle F

Release & retrieve ROV shackle (grade 8) with tapered screw pin and Fishtail-Handle
    Highlights
  • Tapered ending of the pin makes under water assembly easy
  • Easy and safe manipulation of handles by ROV arm
  • Pin contains groove to attach it to shackle body with wires
  • Suitable for both inline- and side loading
  • White coating optimizes visibility under water
Description

The Green Pin® Tapered Pin ROV Shackle F is a grade 8 shackle with a fisthail-handle and a tapered ending on the shackle pin. The shackle was specially developed for (subsea) release and retrieve operations with a remotely operated vehicle (ROV). The shackle's handle can be manipulated easily by a hydraulically operated ROV arm. Safety and controllability are optimal: the handles are firmly attached to the pin head with bolts and Nord-Lock® rings, while the pin head contains grooves for attaching the pin to the shackle body with the help of wire rope. Under water assembly of the shackle becomes easier due to the tapered ending of the pin while the white colour of the shackle body and the orange colour of the handle improve visibility. Finally, the screw thread on the pin is completely chambered to protect the sling from wear and tear. The Green Pin® Tapered Pin ROV Shackle F is also available with a D-handle (the handles are interchangeable and can also be supplied separately). The shackle is suitable for both inline- and side loading (reduction factors apply) and is available in a range with a working load limit from 6.5 up to 55 ton.

Product details
  • Productcode
    P-5361F
  • Material
    bow and pin alloy steel, Grade 8, Polar Quality, quenched and tempered
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    shackle bow painted white, pin painted green
  • Temp. range
    -60°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • CE
  • Note
    supplied without wires, design your own wiring plan
Contact
Technical specifications in
mminch

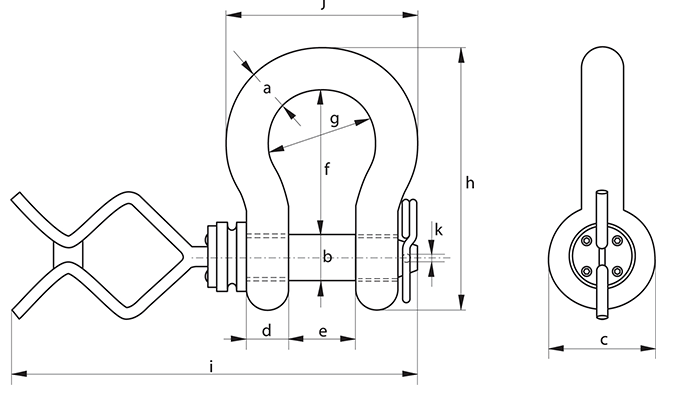

To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
diameter bow (mm)
A
P-5361F schematic
diameter bow (inch)
A
P-5361F schematic
diameter pin (mm)
B
P-5361F schematic
diameter pin (inch)
B
P-5361F schematic
diameter eye (mm)
C
P-5361F schematic
diameter eye (inch)
C
P-5361F schematic
width eye (inch)
D
P-5361F schematic
width eye (mm)
D
P-5361F schematic
width inside (mm)
E
P-5361F schematic
width inside (inch)
E
P-5361F schematic
length inside (inch)
F
P-5361F schematic
length inside (mm)
F
P-5361F schematic
width bow (inch)
G
P-5361F schematic
width bow (mm)
G
P-5361F schematic
length (inch)
H
P-5361F schematic
length (mm)
H
P-5361F schematic
length bolt (inch)
I
P-5361F schematic
length bolt (mm)
I
P-5361F schematic
width (inch)
J
P-5361F schematic
width (mm)
J
P-5361F schematic
diameter (inch)
K
P-5361F schematic
diameter (mm)
K
P-5361F schematic
Net weight (KG) Net weight (LBS)
PDF POGHBB22ROVRLTF 6,5 22 25 52 22 36 83 58 144 419 102 3,5 4.06
PDF POGHBB22ROVRLTF 6,5 7/8 1 2 1/16 7/8 1 7/16 3 9/32 2 9/32 5 21/32 16 1/2 4 1/32 1/8 8.96
PDF POGHBB28ROVRLTF 9,5 28 32 66 28 47 108 75 185 455 131 5,5 3.66
PDF POGHBB28ROVRLTF 9,5 1 1/8 1 1/4 2 19/32 1 3/8 1 7/8 4 1/4 2 15/16 7 9/32 17 29/32 5 5/32 7/32 8.07
PDF POGHBB32ROVRLTF 12 32 35 72 32 51 115 83 201 467 147 6,5 4.91
PDF POGHBB32ROVRLTF 12 1 1/4 1 3/8 2 27/32 1 9/32 2 4 17/32 3 9/32 7 29/32 18 3/8 5 25/32 1/4 10.8
PDF POGHBB38ROVRLTF 17 38 42 88 38 60 146 99 249 491 175 8,5 8.19
PDF POGHBB38ROVRLTF 17 1 1/2 1 5/8 3 15/32 1 17/32 2 11/32 5 3/4 3 29/32 9 13/16 19 11/32 6 7/8 11/32 18.1
PDF POGHBB45ROVRLTF 25 45 50 103 45 74 178 126 300 538 216 8,5 14.2
PDF POGHBB45ROVRLTF 25 1 3/4 2 4 1/16 1 25/32 2 29/32 7 4 15/16 11 13/16 21 3/16 8 1/2 11/32 31.4
PDF POGHBB50ROVRLTF 35 50 57 111 50 83 197 138 331 558 238 8,5 19.9
PDF POGHBB50ROVRLTF 35 2 2 1/4 4 3/8 1 31/32 3 9/32 7 3/4 5 7/16 13 1/32 21 31/32 9 3/8 11/32 43.8
PDF POGHBB65ROVRLTF 55 65 70 145 65 105 260 180 433 619 310 7,5 39.6
PDF POGHBB65ROVRLTF 55 2 1/2 2 3/4 5 23/32 2 9/16 4 1/8 10 1/4 7 9/32 17 1/16 24 3/8 12 7/32 9/32 87.3
