Green Pin® Snatch Block
Snatch block type 601T
- Highlights
- Smooth, uninterrupted pull due to conical roller bearings
- Coating assures long-term durability
- Lightweight
- Superior stock availability of 99%
- Reliable Green Pin® quality and support
The Green Pin® Snatch Block is a light-weight snatch block type 601T. The snatch block has a smooth, uninterrupted pull due to its conical roller bearings. The coating of the Green Pin® Snatch Block ensures long-term durability, even under harsh conditions. The product is available in a range with a working load limit from 4 up to 8 ton.
More-
ProductcodeP-6953
-
Materialcarbon steel, fitted with conical roller bearings
-
Safety factorMBL equals 4 x WLL
-
Finishpainted
-
Certification
- 2.1
- 2.2
- MTCb
- CE
-
NoteWorking Load Limit is on the headfitting

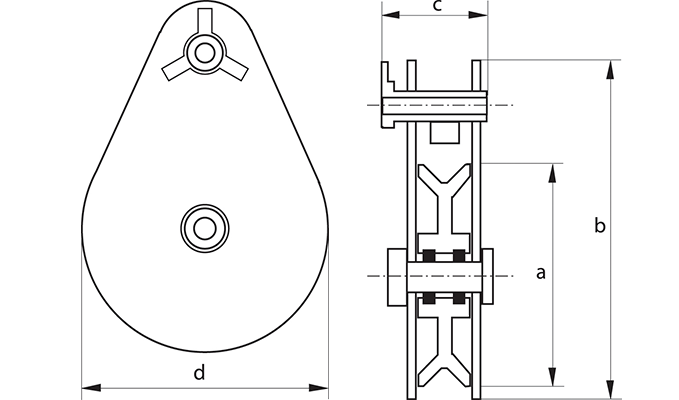

| Article code |
working load limit
(ton)
|
working load limit
(ton)
|
diameter wire rope (inch)
|
diameter wire rope
(mm)
|
diameter outside sheave (inch)
A
|
diameter outside sheave
(mm)
A
|
length (inch)
B
|
length
(mm)
B
|
thickness (inch)
C
|
thickness
(mm)
C
|
width outside (inch)
D
|
width outside
(mm)
D
|
Net weight (KG) | Net weight (LBS) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BKOFFST0404 | 4 | 10 - 12 | 115 | 213 | 83 | 120 | 4 | |||||||
|
|
BKOFFST0404 | 4 | 3/8 - 1/2 | 4 1/2 | 8 3/8 | 3 9/32 | 4 23/32 | 8.82 | |||||||
|
|
BKOFFST0608 | 8 | 20 - 22 | 152 | 305 | 108 | 160 | 9 | |||||||
|
|
BKOFFST0608 | 8 | 3/4 - 7/8 | 6 | 12 | 4 1/4 | 6 5/16 | 19.9 | |||||||
|
|
BKOFFST0808 | 8 | 20 - 22 | 203 | 357 | 108 | 210 | 12 | |||||||
|
|
BKOFFST0808 | 8 | 3/4 - 7/8 | 8 | 14 1/16 | 4 1/4 | 8 9/32 | 26.5 | |||||||
|
|
BKOFFST1008 | 8 | 20 - 22 | 254 | 406 | 108 | 260 | 18 | |||||||
|
|
BKOFFST1008 | 8 | 3/4 - 7/8 | 10 | 15 31/32 | 4 1/4 | 10 1/4 | 39.7 |
Frequently Asked Questions
No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.
FAQ-Reference PI-07-02 Rev. B
Snatch block type 601T
Highlights
Smooth, uninterrupted pull due to conical roller bearings
- Coating assures long-term durability
- Lightweight
- Superior stock availability of 99%
- Reliable Green Pin® quality and support
Description
The Green Pin® Snatch Block is a light-weight snatch block type 601T. The snatch block has a smooth, uninterrupted pull due to its conical roller bearings. The coating of the Green Pin® Snatch Block ensures long-term durability, even under harsh conditions. The product is available in a range with a working load limit from 4 up to 8 ton.
Product details
- ProductcodeP-6953
- Materialcarbon steel, fitted with conical roller bearings
- Safety factorMBL equals 4 x WLL
- Finishpainted
- Certification 2.1 2.2 MTCb CE
- NoteWorking Load Limit is on the headfitting
Green Pin® Snatch Block
| Article code | working load limit | diameter wire rope |
|
|
|
|
Net weight
(kg) |
|---|---|---|---|---|---|---|---|
| BKOFFST0404 | 4 | 10 - 12 | 115 | 213 | 83 | 120 | 4 |
| BKOFFST0608 | 8 | 20 - 22 | 152 | 305 | 108 | 160 | 9 |
| BKOFFST0808 | 8 | 20 - 22 | 203 | 357 | 108 | 210 | 12 |
| BKOFFST1008 | 8 | 20 - 22 | 254 | 406 | 108 | 260 | 18 |
Green Pin® Snatch Block
| Article code | working load limit | diameter wire rope (inch) |
|
|
|
|
Net weight
(LBS) |
|---|---|---|---|---|---|---|---|
| BKOFFST0404 | 4 | 3/8 - 1/2 | 4 1/2 | 8 3/8 | 3 9/32 | 4 23/32 | 8.82 |
| BKOFFST0608 | 8 | 3/4 - 7/8 | 6 | 12 | 4 1/4 | 6 5/16 | 19.9 |
| BKOFFST0808 | 8 | 3/4 - 7/8 | 8 | 14 1/16 | 4 1/4 | 8 9/32 | 26.5 |
| BKOFFST1008 | 8 | 3/4 - 7/8 | 10 | 15 31/32 | 4 1/4 | 10 1/4 | 39.7 |
