Green Pin® Sling Hook E

Grade 10 eye sling hook
    Highlights
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
    • Cad drawing Pdf / Print
Description

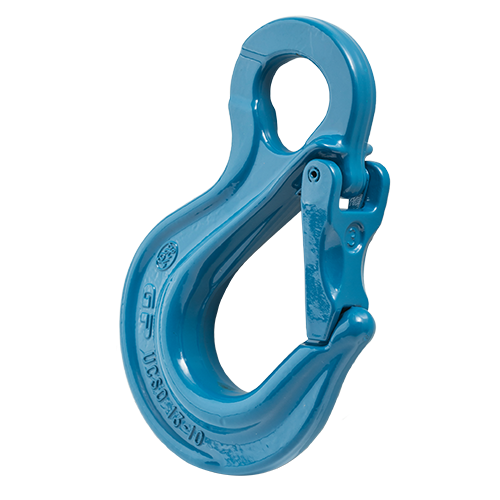

The Green Pin® Sling Hook E is a grade 10 eye sling hook. The sling hook can be used for general lifting applications. It can be quickly connected to the load lifting points thanks to its easy operating latch, which guarantees full safety. To connect simply push the latch, connect the hook to the lifting point, and release the latch. The forged latch guarantees a longer lifespan. It strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin. The eye of the hook can be connected to grade 10 chain with a connecting link or an omega link, to a webbing with a web sling connector or to a wire rope with a thimble. The flat on the eye enables the assembly with an omega link or on a thimble. The Green Pin® Sling Hook E is available in a range to suit 6 mm up to 20 mm grade 10 chain.

Product details
  • Productcode
    UCSO
  • Material
    alloy steel, Grade 10, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted blue
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
    • DGUV
  • Note
    from 10 t without flat part
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
length (mm)
A
USCO
length (inch)
A
USCO
diameter eye inside (mm)
B
USCO
diameter eye inside (inch)
B
USCO
opening hook (inch)
C
USCO
opening hook (mm)
C
USCO
thickness (mm)
D
USCO
thickness (inch)
D
USCO
width (inch)
E
USCO
width (mm)
E
USCO
diameter eye outside (inch)
F
USCO
diameter eye outside (mm)
F
USCO
width outside (inch)
G
USCO
width outside (mm)
G
USCO
length (inch)
H
USCO
length (mm)
H
USCO
width (inch)
I
USCO
width (mm)
I
USCO
thickness (inch)
J
USCO
thickness (mm)
J
USCO
Net weight (KG) Net weight (LBS)
PDF GPUCSO6 1,4 6 86 23 26 15 19 43 73 114 10 6 0.28
PDF GPUCSO6 1,4 7/32 3 5/16 29/32 1 1/32 19/32 3/4 1 11/16 2 27/32 4 1/2 13/32 1/4 0.63
PDF GPUCSO8 2,6 8 103 26 30 19 24 51 87 139 12 8 0.52
PDF GPUCSO8 2,6 5/16 4 1/16 1 1/32 1 3/16 25/32 15/16 2 3 7/16 5 15/32 15/32 5/16 1.14
PDF GPUCSO10 4 10 129 36 33 24 28 65 106 171 15 10 1.09
PDF GPUCSO10 4 3/8 5 3/32 1 13/32 1 5/16 15/16 1 3/32 2 9/16 4 3/16 6 23/32 19/32 13/32 2.40
PDF GPUCSO13 6,8 13 152 41 37 32 39 77 133 209 18 12 1.94
PDF GPUCSO13 6,8 1/2 5 31/32 1 5/8 1 15/32 1 1/4 1 17/32 3 1/32 5 1/4 8 7/32 23/32 15/32 4.28
PDF GPUCSO16 10,3 16 191 52 43 40 43 94 165 255 21 17 3.51
PDF GPUCSO16 10,3 5/8 7 17/32 2 1/16 1 11/16 1 9/16 1 11/16 3 11/16 6 1/2 10 1/32 13/16 5/8 7.74
PDF GPUCSO20 16 20 237 61 61 49 61 115 208 326 28 21 7.08
PDF GPUCSO20 16 3/4 9 11/32 2 13/32 2 13/32 1 15/16 2 13/32 4 17/32 8 3/16 12 27/32 1 3/32 13/16 15.6

Frequently Asked Questions

FAQs
Where can I find the DGUV Type Approval?

DGUV Type Approval
Van Beest puts great emphasis on the quality of products. Recently, we have renewed our DGUV Type Approvals for many of our products. This allows us to H-stamp the components with our unique H number (H94).

DGUV (Deutsche Gesetzliche Unfallversicherung / German Social Accident Insurance) is the umbrella association of the accident insurance institutions for the industrial and public sectors, a leading certification association in Europe.

The test procedure includes verification of materials, verification of the dimensions on individual samples, tensile tests, fatigue tests and some specific tests such as a bending test, a latch lock test and a latch strength test. The results are compared to the specifications mentioned in the EN 1677 norm. With this comprehensive testing procedure and certification of both chain and components, Van Beest supplies the highest quality products that contribute to a safe working environment. Click here to download all the certificates.

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How should I use a Green Pin® Replacement kit for self-locking hooks for grade 8 and 10 (VR)?

Please find the user manual here.

Green Pin® Sling Hook E

Grade 10 eye sling hook

Highlights


  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support

Description


The Green Pin® Sling Hook E is a grade 10 eye sling hook. The sling hook can be used for general lifting applications. It can be quickly connected to the load lifting points thanks to its easy operating latch, which guarantees full safety. To connect simply push the latch, connect the hook to the lifting point, and release the latch. The forged latch guarantees a longer lifespan. It strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin. The eye of the hook can be connected to grade 10 chain with a connecting link or an omega link, to a webbing with a web sling connector or to a wire rope with a thimble. The flat on the eye enables the assembly with an omega link or on a thimble. The Green Pin® Sling Hook E is available in a range to suit 6 mm up to 20 mm grade 10 chain.

Product details


  • ProductcodeUCSO
  • Materialalloy steel, Grade 10, quenched and tempered
  • Safety factorMBL equals 4 x WLL
  • Finishpainted blue
  • Certification 2.1 2.2 3.1 MTCa MPIb DGUV
  • Notefrom 10 t without flat part
www.greenpin.com
Green Pin® Sling Hook E
Technical specifications in milimeters
Article code working load limit for chain diameter A length B diameter eye inside C opening hook D thickness E width F diameter eye outside G width outside H length I width J thickness Net weight
(kg)
GPUCSO6 1,4 6 86 23 26 15 19 43 73 114 10 6 0.28
GPUCSO8 2,6 8 103 26 30 19 24 51 87 139 12 8 0.52
GPUCSO10 4 10 129 36 33 24 28 65 106 171 15 10 1.09
GPUCSO13 6,8 13 152 41 37 32 39 77 133 209 18 12 1.94
GPUCSO16 10,3 16 191 52 43 40 43 94 165 255 21 17 3.51
GPUCSO20 16 20 237 61 61 49 61 115 208 326 28 21 7.08
www.greenpin.com
Green Pin® Sling Hook E
Technical specifications in inches
Article code working load limit for chain diameter (inch) A length (inch) B diameter eye inside (inch) C opening hook (inch) D thickness (inch) E width (inch) F diameter eye outside (inch) G width outside (inch) H length (inch) I width (inch) J thickness (inch) Net weight
(LBS)
GPUCSO6 1,4 7/32 3 5/16 29/32 1 1/32 19/32 3/4 1 11/16 2 27/32 4 1/2 13/32 1/4 0.63
GPUCSO8 2,6 5/16 4 1/16 1 1/32 1 3/16 25/32 15/16 2 3 7/16 5 15/32 15/32 5/16 1.14
GPUCSO10 4 3/8 5 3/32 1 13/32 1 5/16 15/16 1 3/32 2 9/16 4 3/16 6 23/32 19/32 13/32 2.40
GPUCSO13 6,8 1/2 5 31/32 1 5/8 1 15/32 1 1/4 1 17/32 3 1/32 5 1/4 8 7/32 23/32 15/32 4.28
GPUCSO16 10,3 5/8 7 17/32 2 1/16 1 11/16 1 9/16 1 11/16 3 11/16 6 1/2 10 1/32 13/16 5/8 7.74
GPUCSO20 16 3/4 9 11/32 2 13/32 2 13/32 1 15/16 2 13/32 4 17/32 8 3/16 12 27/32 1 3/32 13/16 15.6
www.greenpin.com
Green Pin® Sling Hook E
Technical drawing
USCO
www.greenpin.com
