Green Pin® Self Locking Hook SE RT GR10

Grade 10 self locking hook with swivel and recessed trigger
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

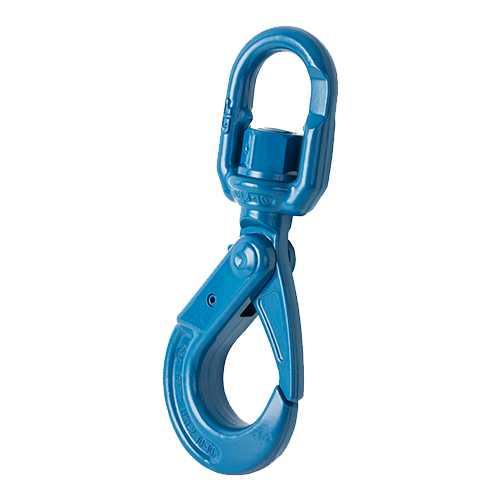

The Green Pin® Self-Locking Hook SE RT is a grade 10 swivel self-locking hook with a recessed trigger. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. The trigger has been recessed into the body of the hook to prevent being snatched or damaged. This hook offers complete safety for lifting as the latch cannot be removed. The large eye is supplied with a flat part, which enables easy assembly of wire rope slings with thimbles or chain slings with omega links. These hooks are fitted with a needle roller thrust bearing. This enables smooth, easy rotation under load. The eye of the hook can also be connected to grade 10 chain with a connecting link or to a webbing with a web sling connector. The Green Pin® Self-Locking Hook SE RT is available in a range to suit 8 mm up to 20 mm grade 10 chain.

Product details
  • Productcode
    UXLERT
  • Material
    alloy steel, Grade 10, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted blue
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MPIb
    • DGUV
  • Note
    equipped with needle roller thrust bearing
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
length (mm)
A
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
length (inch)
A
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
length inside (mm)
B
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
length inside (inch)
B
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
width inside (inch)
C
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
width inside (mm)
C
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
opening hook (mm)
D
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
opening hook (inch)
D
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
thickness (inch)
E
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
thickness (mm)
E
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
width (inch)
F
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
width (mm)
F
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
width outside (inch)
G
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
width outside (mm)
G
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
length (inch)
H
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
length (mm)
H
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
diameter (inch)
I
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
diameter (mm)
I
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
thickness (inch)
J
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
thickness (mm)
J
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
Net weight (KG) Net weight (LBS)
PDF GPUXLE1RT 2,6 8 149 41 37 43 24 28 91 232 14 8 1.38
PDF GPUXLE1RT 2,6 5/16 5 7/8 1 5/8 1 15/32 1 11/16 15/16 1 3/32 3 19/32 9 1/8 9/16 5/16 3.04
PDF GPUXLE2RT 4 10 186 47 48 48 32 34 112 283 16 11 2.54
PDF GPUXLE2RT 4 3/8 7 5/16 1 27/32 1 7/8 1 7/8 1 1/4 1 11/32 4 13/32 11 5/32 5/8 7/16 5.60
PDF GPUXLE3RT 6,8 13 214 60 58 63 37 44 141 337 21 14 4.54
PDF GPUXLE3RT 6,8 1/2 8 7/16 2 3/8 2 9/32 2 15/32 1 15/32 1 23/32 5 9/16 13 9/32 13/16 9/16 10.0
PDF GPUXLE4RT 10,3 16 273 67 73 75 43 56 182 420 25 17 9.48
PDF GPUXLE4RT 10,3 5/8 10 3/4 2 5/8 2 7/8 2 15/16 1 11/16 2 7/32 7 5/32 16 17/32 31/32 21/32 20.9
PDF GPUXLE5RT 16 20 304 87 82 90 52 62 205 478 25 21 12.4
PDF GPUXLE5RT 16 3/4 11 31/32 3 7/16 3 7/32 3 17/32 2 1/16 2 7/16 8 1/16 18 13/16 31/32 13/16 27.3

Frequently Asked Questions

Green Pin® Self Locking Hook SE RT GR10

Grade 10 self locking hook with swivel and recessed trigger

Highlights


  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%

Description


The Green Pin® Self-Locking Hook SE RT is a grade 10 swivel self-locking hook with a recessed trigger. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. The trigger has been recessed into the body of the hook to prevent being snatched or damaged. This hook offers complete safety for lifting as the latch cannot be removed. The large eye is supplied with a flat part, which enables easy assembly of wire rope slings with thimbles or chain slings with omega links. These hooks are fitted with a needle roller thrust bearing. This enables smooth, easy rotation under load. The eye of the hook can also be connected to grade 10 chain with a connecting link or to a webbing with a web sling connector. The Green Pin® Self-Locking Hook SE RT is available in a range to suit 8 mm up to 20 mm grade 10 chain.

Product details


  • ProductcodeUXLERT
  • Materialalloy steel, Grade 10, quenched and tempered
  • Safety factorMBL equals 4 x WLL
  • Finishpainted blue
  • Certification 2.1 2.2 3.1 MPIb DGUV
  • Noteequipped with needle roller thrust bearing
www.greenpin.com
Green Pin® Self Locking Hook SE RT GR10
Technical specifications in milimeters
Article code working load limit for chain diameter A length B length inside C width inside D opening hook E thickness F width G width outside H length I diameter J thickness Net weight
(kg)
GPUXLE1RT 2,6 8 149 41 37 43 24 28 91 232 14 8 1.38
GPUXLE2RT 4 10 186 47 48 48 32 34 112 283 16 11 2.54
GPUXLE3RT 6,8 13 214 60 58 63 37 44 141 337 21 14 4.54
GPUXLE4RT 10,3 16 273 67 73 75 43 56 182 420 25 17 9.48
GPUXLE5RT 16 20 304 87 82 90 52 62 205 478 25 21 12.4
www.greenpin.com
Green Pin® Self Locking Hook SE RT GR10
Technical specifications in inches
Article code working load limit for chain diameter (inch) A length (inch) B length inside (inch) C width inside (inch) D opening hook (inch) E thickness (inch) F width (inch) G width outside (inch) H length (inch) I diameter (inch) J thickness (inch) Net weight
(LBS)
GPUXLE1RT 2,6 5/16 5 7/8 1 5/8 1 15/32 1 11/16 15/16 1 3/32 3 19/32 9 1/8 9/16 5/16 3.04
GPUXLE2RT 4 3/8 7 5/16 1 27/32 1 7/8 1 7/8 1 1/4 1 11/32 4 13/32 11 5/32 5/8 7/16 5.60
GPUXLE3RT 6,8 1/2 8 7/16 2 3/8 2 9/32 2 15/32 1 15/32 1 23/32 5 9/16 13 9/32 13/16 9/16 10.0
GPUXLE4RT 10,3 5/8 10 3/4 2 5/8 2 7/8 2 15/16 1 11/16 2 7/32 7 5/32 16 17/32 31/32 21/32 20.9
GPUXLE5RT 16 3/4 11 31/32 3 7/16 3 7/32 3 17/32 2 1/16 2 7/16 8 1/16 18 13/16 31/32 13/16 27.3
www.greenpin.com
Green Pin® Self Locking Hook SE RT GR10
Technical drawing
Green Pin<sup>®</sup> Self Locking Hook SE RT GR10
www.greenpin.com
