Green Pin® Self Locking Hook SE

Grade 8 swivel self locking hook
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
Description

The Green Pin® Self-Locking Hook SE is a grade 8 swivel self-locking hook with eye. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The large eye, designed with a flat enables an easy assembly on anti-rotating wire rope slings (with thimbles). These hooks are fitted with a needle roller thrust bearing. This enables smooth, easy rotation under load. The eye of the hook can be connected to grade 8 chain with a connecting link or to a webbing with a web sling connector. The flat on the eye enables the assembly with an omega link or on a thimble. The Green Pin® Self-Locking Hook SE is available in a range to suit 7/8 mm up to 18/20 mm grade 8 chain.

Product details
  • Productcode
    GKE
  • Material
    alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted white
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • MPIb
  • Note
    equipped with needle roller thrust bearing
Technical specifications in
mminch

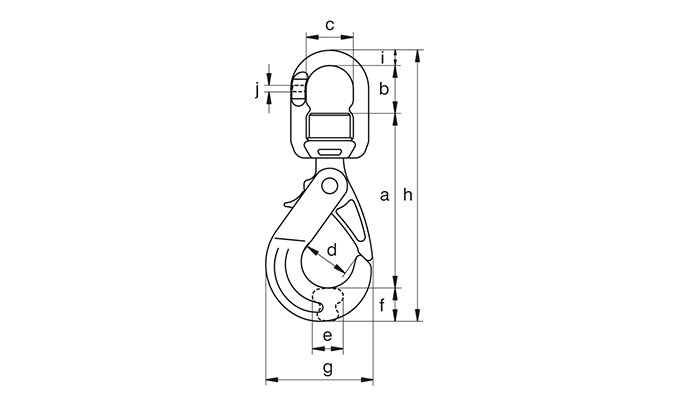

To download a CAD drawing, click on a product capacity below
Pdf
Article code
working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
length (mm) A
length (inch) A
length inside (mm) B
length inside (inch) B
width inside (inch) C
width inside (mm) C
opening hook (mm) D
opening hook (inch) D
thickness (inch) E
thickness (mm) E
width (inch) F
width (mm) F
width outside (inch) G
width outside (mm) G
length (inch) H
length (mm) H
diameter (inch) I
diameter (mm) I
thickness (inch) J
thickness (mm) J
Nett weight KG
Nett weight LBS
GPGKE1 2 7 - 8 122 33 32 32 17 25 77 192 12 6 0.77
GPGKE1 2 1/4"-5/16 4 13/16 1 5/16 1 1/4 1 1/4 21/32 31/32 3 1/32 7 9/16 15/32 1/4 1.70
GPGKE2 3,2 10 148 40 37 43 24 29 92 231 14 8 1.38
GPGKE2 3,2 3/8 5 13/16 1 9/16 1 15/32 1 11/16 15/16 1 5/32 3 5/8 9 3/32 9/16 5/16 3.04
GPGKE3 5,4 13 185 47 48 47 32 34 111 282 16 11 2.56
GPGKE3 5,4 1/2 7 9/32 1 27/32 1 7/8 1 27/32 1 1/4 1 11/32 4 3/8 11 3/32 5/8 7/16 5.65
GPGKE4 8,2 16 213 60 58 61 37 46 142 339 21 14 4.58
GPGKE4 8,2 5/8 8 3/8 2 3/8 2 9/32 2 13/32 1 15/32 1 13/16 5 19/32 13 11/32 13/16 9/16 10.1
GPGKE5 12,8 18 - 20 268 62 73 74 43 57 185 417 25 17 9.51
GPGKE5 12,8 3/4 10 9/16 2 7/16 2 7/8 2 29/32 1 11/16 2 1/4 7 9/32 16 13/32 31/32 21/32 21.0
