Green Pin® Self Locking Hook EN1677-3 CL GR8

Grade 8 clevis self locking hook EN1677-3
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

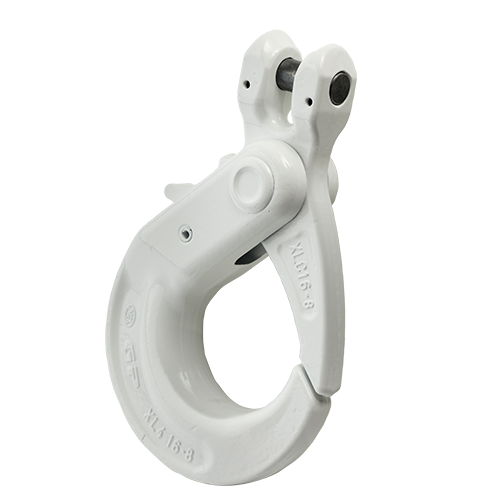

The Green Pin® Self-Locking Hook CL EN1677-3 is a grade 8 clevis self-locking hook according to European standard for components for sling EN 1677-3. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The clevis design enables a direct connection to grade 8 chain. The Green Pin® Self-Locking Hook CL EN1677-3 is available in a range to suit 5 mm up to 18/20 mm grade 8 chain.

Product details
  • Productcode
    XLC
  • Material
    alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted white
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
    • DGUV
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
length (mm)
A
XLC
length (inch)
A
XLC
width (mm)
B
XLC
width (inch)
B
XLC
opening hook (inch)
C
XLC
opening hook (mm)
C
XLC
thickness (mm)
D
XLC
thickness (inch)
D
XLC
width (inch)
E
XLC
width (mm)
E
XLC
width outside (inch)
F
XLC
width outside (mm)
F
XLC
width outside (inch)
G
XLC
width outside (mm)
G
XLC
length (inch)
H
XLC
length (mm)
H
XLC
diameter pin (inch)
I
XLC
diameter pin (mm)
I
XLC
Net weight (KG) Net weight (LBS)
PDF GPXLC05 0,8 5 93 7 32 17 24 28 75 130 8 0.49
PDF GPXLC05 0,8 3/16 3 21/32 9/32 1 1/4 21/32 15/16 1 3/32 2 15/16 5 1/8 5/16 1.08
PDF GPXLC0 1,12 6 93 7 32 17 24 28 75 130 8 0.49
PDF GPXLC0 1,12 7/32 3 21/32 9/32 1 1/4 21/32 15/16 1 3/32 2 15/16 5 1/8 5/16 1.08
PDF GPXLC1 2 7 - 8 116 9 43 24 28 32 91 161 9 0.91
PDF GPXLC1 2 1/4 - 5/16 4 9/16 11/32 1 11/16 15/16 1 3/32 1 1/4 3 19/32 6 11/32 11/32 2.01
PDF GPXLC2 3,2 10 144 12 48 32 34 42 112 201 13 1.77
PDF GPXLC2 3,2 3/8 5 21/32 15/32 1 7/8 1 1/4 1 3/8 1 11/32 4 13/32 7 29/32 1/2 3.90
PDF GPXLC3 5,4 13 169 15 63 37 44 54 141 242 16 3.33
PDF GPXLC3 5,4 1/2 6 21/32 19/32 2 15/32 1 15/32 1 23/32 2 1/8 5 9/16 9 17/32 5/8 7.34
PDF GPXLC4 8,2 16 204 18 75 43 56 68 182 296 20 6.75
PDF GPXLC4 8,2 5/8 8 1/32 23/32 2 15/16 1 11/16 2 7/32 2 11/16 7 5/32 11 21/32 25/32 14.9
PDF GPXLC5 12,8 18 - 20 234 22 90 52 62 82 205 341 24 9.57
PDF GPXLC5 12,8 3/4 9 7/32 7/8 3 17/32 2 1/16 2 7/16 3 7/32 8 1/16 13 7/16 15/16 21.1

Frequently Asked Questions

FAQs
Where can I find the DGUV Type Approval?

DGUV Type Approval
Van Beest puts great emphasis on the quality of products. Recently, we have renewed our DGUV Type Approvals for many of our products. This allows us to H-stamp the components with our unique H number (H94).

DGUV (Deutsche Gesetzliche Unfallversicherung / German Social Accident Insurance) is the umbrella association of the accident insurance institutions for the industrial and public sectors, a leading certification association in Europe.

The test procedure includes verification of materials, verification of the dimensions on individual samples, tensile tests, fatigue tests and some specific tests such as a bending test, a latch lock test and a latch strength test. The results are compared to the specifications mentioned in the EN 1677 norm. With this comprehensive testing procedure and certification of both chain and components, Van Beest supplies the highest quality products that contribute to a safe working environment. Click here to download all the certificates.

How should I use Green Pin® Clevis type fittings?

Please find the user manual here.

How should I use a Green Pin® Replacement kit for self-locking hooks for grade 8 and 10 (VR)?

Please find the user manual here.

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Self Locking Hook EN1677-3 CL GR8

Grade 8 clevis self locking hook EN1677-3

Highlights


  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%

Description


The Green Pin® Self-Locking Hook CL EN1677-3 is a grade 8 clevis self-locking hook according to European standard for components for sling EN 1677-3. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The clevis design enables a direct connection to grade 8 chain. The Green Pin® Self-Locking Hook CL EN1677-3 is available in a range to suit 5 mm up to 18/20 mm grade 8 chain.

Product details


  • ProductcodeXLC
  • Materialalloy steel, Grade 8, quenched and tempered
  • Safety factorMBL equals 4 x WLL
  • Finishpainted white
  • Certification 2.1 2.2 3.1 MTCa MPIb DGUV
