Green Pin® Self Locking Hook CL
Grade 8 clevis self locking hook- Highlights
- Reliable Green Pin® quality and support
- Superior stock availability of 99%
The Green Pin® Self-Locking Hook CL is a grade 8 clevis self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The clevis design enables a direct connection to grade 8 chain. The Green Pin® Self-Locking Hook CL is available in a range to suit 7/8 mm up to 22 mm grade 8 chain.
More-
ProductcodeGKC
-
Materialalloy steel, Grade 8, quenched and tempered
-
Safety factorMBL equals 4 x WLL
-
Finishpainted white
-
Temp. range-40°C up to +200°C
-
Certification
- 2.1
- 2.2
- MTCa
- MPIb
Article code |
working load limit
(ton)
|
working load limit
(ton)
|
for chain diameter
(mm)
|
for chain diameter (inch)
|
length
(mm)

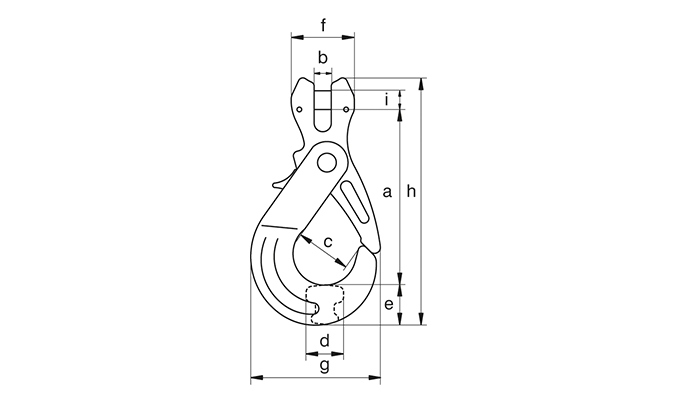

A
|
length (inch)
A
|
width
(mm)
B
|
width (inch)
B
|
opening hook (inch)
C
|
opening hook
(mm)
C
|
thickness
(mm)
D
|
thickness (inch)
D
|
width (inch)
E
|
width
(mm)
E
|
width outside (inch)
F
|
width outside
(mm)
F
|
width outside (inch)
G
|
width outside
(mm)
G
|
length (inch)
H
|
length
(mm)
H
|
diameter pin (inch)
I
|
diameter pin
(mm)
I
|
Net weight (KG) | Net weight (LBS) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GPGKC1 | 2 | 7 - 8 | 96 | 9 | 32 | 17 | 24 | 32 | 75 | 136 | 9 | 0.55 | |||||||||||||
GPGKC1 | 2 | 1/4 - 5/16 | 3 25/32 | 11/32 | 1 1/4 | 21/32 | 15/16 | 1 1/4 | 2 15/16 | 5 11/32 | 11/32 | 1.21 | |||||||||||||
GPGKC2 | 3,2 | 10 | 117 | 12 | 44 | 24 | 28 | 42 | 91 | 167 | 13 | 1.02 | |||||||||||||
GPGKC2 | 3,2 | 3/8 | 4 19/32 | 15/32 | 1 23/32 | 15/16 | 1 3/32 | 1 21/32 | 3 19/32 | 6 9/16 | 1/2 | 2.25 | |||||||||||||
GPGKC3 | 5,4 | 13 | 153 | 15 | 48 | 32 | 33 | 54 | 111 | 217 | 16 | 2.01 | |||||||||||||
GPGKC3 | 5,4 | 1/2 | 6 1/32 | 19/32 | 1 7/8 | 1 1/4 | 1 5/16 | 2 1/8 | 4 3/8 | 8 17/32 | 5/8 | 4.43 | |||||||||||||
GPGKC4 | 8,2 | 16 | 175 | 18 | 63 | 37 | 42 | 68 | 141 | 253 | 20 | 3.70 | |||||||||||||
GPGKC4 | 8,2 | 5/8 | 6 7/8 | 23/32 | 2 15/32 | 1 15/32 | 1 21/32 | 2 11/16 | 5 9/16 | 9 31/32 | 25/32 | 8.15 | |||||||||||||
GPGKC5 | 12,8 | 18 - 20 | 216 | 22 | 75 | 44 | 55 | 82 | 184 | 316 | 24 | 7.54 | |||||||||||||
GPGKC5 | 12,8 | 3/4 | 8 1/2 | 7/8 | 2 15/16 | 1 23/32 | 2 5/32 | 3 7/32 | 7 1/4 | 12 7/16 | 15/16 | 16.6 | |||||||||||||
GPGKC6 | 15,5 | 22 | 243 | 25 | 90 | 52 | 61 | 97 | 205 | 351 | 28 | 10.3 | |||||||||||||
GPGKC6 | 15,5 | 7/8 | 9 9/16 | 31/32 | 3 17/32 | 2 1/16 | 2 13/32 | 3 13/16 | 8 1/16 | 13 13/16 | 1 3/32 | 22.7 |
Frequently Asked Questions
Please find the user manual here.
Please find the user manual here.
You can find the Working Load Limit tables for chain assemblies here:
No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.
FAQ-Reference PI-07-02 Rev. B
If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:
- On the product page, go to the table with dimensions
- Select the productsize that you are interested in
- A Download button will appear
If no Download button appears, no CAD-drawing for this product is available.
BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical
Grade 8 clevis self locking hook
Highlights
- Reliable Green Pin® quality and support
- Superior stock availability of 99%
Description
The Green Pin® Self-Locking Hook CL is a grade 8 clevis self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The clevis design enables a direct connection to grade 8 chain. The Green Pin® Self-Locking Hook CL is available in a range to suit 7/8 mm up to 22 mm grade 8 chain.
Product details
- ProductcodeGKC
- Materialalloy steel, Grade 8, quenched and tempered
- Safety factorMBL equals 4 x WLL
- Finishpainted white
- Certification 2.1 2.2 MTCa MPIb
Article code | working load limit | for chain diameter |
|
|
|
|
|
|
|
|
|
Net weight
(kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
GPGKC1 | 2 | 7 - 8 | 96 | 9 | 32 | 17 | 24 | 32 | 75 | 136 | 9 | 0.55 |
GPGKC2 | 3,2 | 10 | 117 | 12 | 44 | 24 | 28 | 42 | 91 | 167 | 13 | 1.02 |
GPGKC3 | 5,4 | 13 | 153 | 15 | 48 | 32 | 33 | 54 | 111 | 217 | 16 | 2.01 |
GPGKC4 | 8,2 | 16 | 175 | 18 | 63 | 37 | 42 | 68 | 141 | 253 | 20 | 3.70 |
GPGKC5 | 12,8 | 18 - 20 | 216 | 22 | 75 | 44 | 55 | 82 | 184 | 316 | 24 | 7.54 |
GPGKC6 | 15,5 | 22 | 243 | 25 | 90 | 52 | 61 | 97 | 205 | 351 | 28 | 10.3 |
Article code | working load limit | for chain diameter (inch) |
|
|
|
|
|
|
|
|
|
Net weight
(LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
GPGKC1 | 2 | 1/4 - 5/16 | 3 25/32 | 11/32 | 1 1/4 | 21/32 | 15/16 | 1 1/4 | 2 15/16 | 5 11/32 | 11/32 | 1.21 |
GPGKC2 | 3,2 | 3/8 | 4 19/32 | 15/32 | 1 23/32 | 15/16 | 1 3/32 | 1 21/32 | 3 19/32 | 6 9/16 | 1/2 | 2.25 |
GPGKC3 | 5,4 | 1/2 | 6 1/32 | 19/32 | 1 7/8 | 1 1/4 | 1 5/16 | 2 1/8 | 4 3/8 | 8 17/32 | 5/8 | 4.43 |
GPGKC4 | 8,2 | 5/8 | 6 7/8 | 23/32 | 2 15/32 | 1 15/32 | 1 21/32 | 2 11/16 | 5 9/16 | 9 31/32 | 25/32 | 8.15 |
GPGKC5 | 12,8 | 3/4 | 8 1/2 | 7/8 | 2 15/16 | 1 23/32 | 2 5/32 | 3 7/32 | 7 1/4 | 12 7/16 | 15/16 | 16.6 |
GPGKC6 | 15,5 | 7/8 | 9 9/16 | 31/32 | 3 17/32 | 2 1/16 | 2 13/32 | 3 13/16 | 8 1/16 | 13 13/16 | 1 3/32 | 22.7 |
