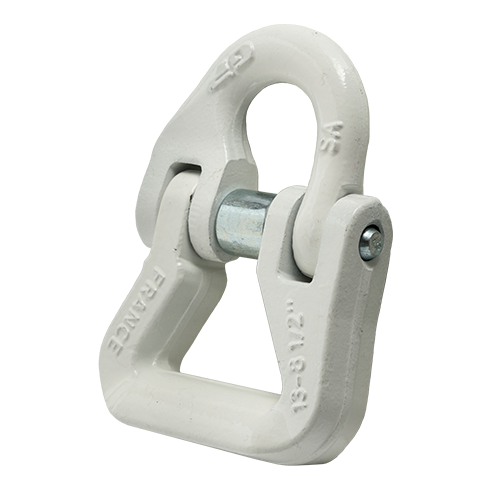

Green Pin® Round Web Sling Connecting Link

Grade 8 round web sling connecting link
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
Description

The Green Pin® Flat Web Sling Connecting Link is a grade 8 connecting link to be used with flat web sling. The flat half of this connecting link is designed to connect flat webbing slings directly to master links or to an eye hook, thanks to the other round half connecting link. The Green Pin® Flat Web Sling Connecting Link is available in a range to suit 2 t. up to 5.4 t. flat webbings.

Product details
  • Productcode
    MJS
  • Material
    alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted white
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
Technical specifications in
mminch
Pdf
Article code
working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
diameter (mm) A
diameter (inch) A
width outside (inch) B
width outside (mm) B
width inside (inch) C
width inside (mm) C
length inside (inch) D
length inside (mm) D
length (inch) E
length (mm) E
width inside (inch) F
width inside (mm) F
diameter eye (inch) G
diameter eye (mm) G
thickness (inch) H
thickness (mm) H
Nett weight KG
Nett weight LBS
GPMJS7/8 2 7 - 8 9 66 19 21 61 40 14 14 0.31
GPMJS7/8 2 1/4"-5/16 11/32 2 19/32 3/4 13/16 2 13/32 1 9/16 9/16 9/16 0.68
GPMJS10 3,2 10 12 76 25 24 74 45 19 15 0.51
GPMJS10 3,2 3/8 15/32 3 31/32 15/16 2 29/32 1 25/32 3/4 19/32 1.13
GPMJS13 5,4 13 16 87 30 30 91 51 24 19 1.01
GPMJS13 5,4 1/2 5/8 3 7/16 1 3/16 1 3/16 3 19/32 2 15/16 3/4 2.23

Frequently Asked Questions

FAQs
Where can I find the Working Load Limit table?

You can find the Working Load Limit tables for Chain Fittings here:

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02.

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical
