Green Pin® Rotating Hoist Ring UNC

Grade 8 rotating hoist ring UNC
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

The Green Pin® Rotating Hoist Ring UNC is a grade 8 rotating hoist ring with UNC thread. This hoist ring with UNC thread can rotate 360° and pivot 180°. It has UNC threads as standard. The cylindric head of the screw prevents jamming during rotation of the hoist ring. WLL and CE marking are mentioned on the product. The minimum safety factor is 5:1. The Green Pin® Rotating Hoist Ring UNC is available in a range with a working load limit from 0.4t up to 13.6 t.

Product details
  • Productcode
    ADAUNC
  • Material
    alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted white
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
    • CE
  • Note
    WLL indicated hereunder are given in the worst conditions of use, i.e. 90°
Contact
Technical specifications in
mminch
Pdf Article code working load limit (ton)
working load limit (ton)
Torque (nm)
Torque (nm)
diameter thread (inch)
A
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
diameter thread (inch)
A
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
width inside (mm)
B
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
width inside (inch)
B
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
length inside (inch)
C
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
length inside (mm)
C
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
diameter (mm)
D
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
diameter (inch)
D
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
length (inch)
E
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
length (mm)
E
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
thickness base (inch)
F
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
thickness base (mm)
F
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
width outside (inch)
G
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
width outside (mm)
G
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
diameter base (inch)
H
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
diameter base (mm)
H
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
diameter base (inch)
I
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
diameter base (mm)
I
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
length inside (inch)
J
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
length inside (mm)
J
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
Hex Key (inch)
K
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
Hex Key (mm)
K
Green Pin<sup>®</sup> Rotating Hoist Ring UNC
Net weight (KG) Net weight (LBS)
PDF GPADA08UNC 0,4 6,5 5/16 36 42 12 18 35 69 34 35 43 6 0.43
PDF GPADA08UNC 0,4 6,5 5/16 1 13/32 1 21/32 15/32 23/32 1 3/8 2 23/32 1 11/32 1 3/8 1 11/16 1/4" 0.95
PDF GPADA10UNC 0,6 13 3/8 36 40 12 18 37 69 34 35 43 8 0.44
PDF GPADA10UNC 0,6 13 3/8 1 13/32 1 9/16 15/32 23/32 1 15/32 2 23/32 1 11/32 1 3/8 1 11/16 5/16" 0.97
PDF GPADA12UNC 1 22 1/2 36 38 12 24 39 69 34 35 43 10 0.46
PDF GPADA12UNC 1 22 1/2 1 13/32 1 1/2 15/32 15/16 1 17/32 2 23/32 1 11/32 1 3/8 1 11/16 13/32 1.01
PDF GPADA16UNC 1,7 55 5/8 36 43 12 31 43 69 34 35 52 13 0.55
PDF GPADA16UNC 1,7 55 5/8 1 13/32 1 11/16 15/32 1 7/32 1 11/16 2 23/32 1 11/32 1 3/8 2 1/16 1/2" 1.20
PDF GPADA20UNC 2,5 110 3/4 36 39 12 31 47 69 34 35 52 16 0.55
PDF GPADA20UNC 2,5 110 3/4 1 13/32 1 17/32 15/32 1 7/32 1 27/32 2 23/32 1 11/32 1 3/8 2 2/16 5/8" 1.21
PDF GPADA22UNC 3,5 150 7/8 53 57 19 35 70 104 49 52 71 19 1.88
PDF GPADA22UNC 3,5 150 7/8 2 3/32 2 1/4 3/4 1 3/8 2 3/4 4 3/32 1 15/16 2 1/16 2 25/32 3/4" 4.15
PDF GPADA24UNC 4,5 190 1 53 54 19 41 73 104 49 52 71 19 1.93
PDF GPADA24UNC 4,5 190 1 2 3/32 2 1/8 3/4 1 5/8 2 7/8 4 3/32 1 15/16 2 1/16 2 25/32 3/4" 4.26
PDF GPADA32UNC 6,8 380 1 1/4 53 62 19 55 64 104 49 52 71 19 2.11
PDF GPADA32UNC 6,8 380 1 1/4 2 3/32 2 15/32 3/4 2 5/32 2 17/32 4 3/32 1 15/16 2 1/16 2 25/32 3/4 4.65
PDF GPADA38UNC 10,8 600 1 1/2 73 92 30 75 83 146 68 72 98 19 5.55
PDF GPADA38UNC 10,8 600 1 1/2 2 7/8" 3 5/8" 1 3/16" 2 15/16" 3 9/32" 5 3/4" 2 11/16" 2 27/32 3 27/32" 3/4" 12.2
PDF GPADA50UNC 13,6 1000 2 73 96 30 75 80 146 68 72 98 19 6.20
PDF GPADA50UNC 13,6 1000 2 2 7/8 3 25/32 1 3/16 2 15/16 3 5/32 5 3/4 2 11/16 2 27/32 3 27/32 3/4 13.7

Frequently Asked Questions

FAQs
How should I use Green Pin® Lifting eyes (EL/AL/OL/ADA/PAS)?

Please find the user manual here.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Rotating Hoist Ring UNC

Grade 8 rotating hoist ring UNC

Highlights


  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%

Description


The Green Pin® Rotating Hoist Ring UNC is a grade 8 rotating hoist ring with UNC thread. This hoist ring with UNC thread can rotate 360° and pivot 180°. It has UNC threads as standard. The cylindric head of the screw prevents jamming during rotation of the hoist ring. WLL and CE marking are mentioned on the product. The minimum safety factor is 5:1. The Green Pin® Rotating Hoist Ring UNC is available in a range with a working load limit from 0.4t up to 13.6 t.

Product details


  • ProductcodeADAUNC
  • Materialalloy steel, Grade 8, quenched and tempered
  • Safety factorMBL equals 5 x WLL
  • Finishpainted white
  • Certification 2.1 2.2 3.1 MTCa MPIb CE
  • NoteWLL indicated hereunder are given in the worst conditions of use, i.e. 90°
www.greenpin.com
Green Pin® Rotating Hoist Ring UNC
Technical specifications in milimeters
Article code working load limit Torque A diameter thread (inch) B width inside C length inside D diameter E length F thickness base G width outside H diameter base I diameter base J length inside K Hex Key Net weight
(kg)
GPADA08UNC 0,4 6,5 5/16 36 42 12 18 35 69 34 35 43 6 0.43
GPADA10UNC 0,6 13 3/8 36 40 12 18 37 69 34 35 43 8 0.44
GPADA12UNC 1 22 1/2 36 38 12 24 39 69 34 35 43 10 0.46
GPADA16UNC 1,7 55 5/8 36 43 12 31 43 69 34 35 52 13 0.55
GPADA20UNC 2,5 110 3/4 36 39 12 31 47 69 34 35 52 16 0.55
GPADA22UNC 3,5 150 7/8 53 57 19 35 70 104 49 52 71 19 1.88
GPADA24UNC 4,5 190 1 53 54 19 41 73 104 49 52 71 19 1.93
GPADA32UNC 6,8 380 1 1/4 53 62 19 55 64 104 49 52 71 19 2.11
GPADA38UNC 10,8 600 1 1/2 73 92 30 75 83 146 68 72 98 19 5.55
GPADA50UNC 13,6 1000 2 73 96 30 75 80 146 68 72 98 19 6.20
www.greenpin.com
Green Pin® Rotating Hoist Ring UNC
Technical specifications in inches
Article code working load limit Torque A diameter thread (inch) B width inside (inch) C length inside (inch) D diameter (inch) E length (inch) F thickness base (inch) G width outside (inch) H diameter base (inch) I diameter base (inch) J length inside (inch) K Hex Key (inch) Net weight
(LBS)
GPADA08UNC 0,4 6,5 5/16 1 13/32 1 21/32 15/32 23/32 1 3/8 2 23/32 1 11/32 1 3/8 1 11/16 1/4" 0.95
GPADA10UNC 0,6 13 3/8 1 13/32 1 9/16 15/32 23/32 1 15/32 2 23/32 1 11/32 1 3/8 1 11/16 5/16" 0.97
GPADA12UNC 1 22 1/2 1 13/32 1 1/2 15/32 15/16 1 17/32 2 23/32 1 11/32 1 3/8 1 11/16 13/32 1.01
GPADA16UNC 1,7 55 5/8 1 13/32 1 11/16 15/32 1 7/32 1 11/16 2 23/32 1 11/32 1 3/8 2 1/16 1/2" 1.20
GPADA20UNC 2,5 110 3/4 1 13/32 1 17/32 15/32 1 7/32 1 27/32 2 23/32 1 11/32 1 3/8 2 2/16 5/8" 1.21
GPADA22UNC 3,5 150 7/8 2 3/32 2 1/4 3/4 1 3/8 2 3/4 4 3/32 1 15/16 2 1/16 2 25/32 3/4" 4.15
GPADA24UNC 4,5 190 1 2 3/32 2 1/8 3/4 1 5/8 2 7/8 4 3/32 1 15/16 2 1/16 2 25/32 3/4" 4.26
GPADA32UNC 6,8 380 1 1/4 2 3/32 2 15/32 3/4 2 5/32 2 17/32 4 3/32 1 15/16 2 1/16 2 25/32 3/4 4.65
GPADA38UNC 10,8 600 1 1/2 2 7/8" 3 5/8" 1 3/16" 2 15/16" 3 9/32" 5 3/4" 2 11/16" 2 27/32 3 27/32" 3/4" 12.2
GPADA50UNC 13,6 1000 2 2 7/8 3 25/32 1 3/16 2 15/16 3 5/32 5 3/4 2 11/16 2 27/32 3 27/32 3/4 13.7
www.greenpin.com
Green Pin® Rotating Hoist Ring UNC

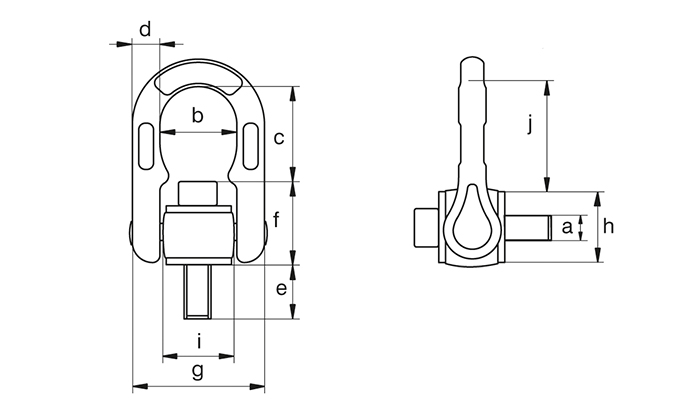

Technical drawing
