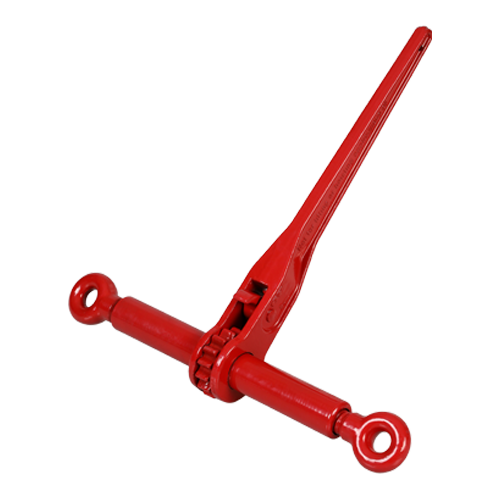

Green Pin® Ratchet Loadbinder EN12195-3

Ratchet type loadbinder without hooks according to EN 12195-3
    Highlights
  • Ratchet allows for precise setting of lashing length and tension
  • Conforms to European lashing norm EN 12195-3
  • Supplied without hooks to accommodate your custom solution
  • Safety prevents unintentional unscrewing
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

The Green Pin® Ratchet Loadbinder EN12195-3 is a ratchet type loadbinder without hooks according to European lashing norm EN 12195-3. The ratchet enables the precise setting of the lashing length and tension. As the loadbinder is supplied without hooks, it is suitable for custom applications. The loadbinder is also equipped with a safety latch that prevents the chain from sliding back. The Green Pin® Ratchet Loadbinder EN12195-3 is available in a range to suit 8 mm up to 16 mm grade 8 chain.

Product details
  • Productcode
    P-7190
  • Material
    drop forged steel, Grade 8
  • Safety factor
    MBL equals 2 x Lashing Capacity
  • Finish
    painted red
  • Certification
    • 2.1
    • 2.2
  • Standard
    EN 12195-3
  • Note
    Stf = 3000 daN
Contact
Technical specifications in
mminch
Pdf Article code chain size (inch)
chain size (mm)
lashing capacity (ton)
lashing capacity (ton)
proof load (ton)
proof load (ton)
minimum breaking load (ton)
minimum breaking load (ton)
take up (inch)
take-up (mm)
length handle (mm)
A
P-7190 schematic
length handle (inch)
A
P-7190 schematic
diameter (inch)
B
P-7190 schematic
diameter (mm)
B
P-7190 schematic
thickness (inch)
C
P-7190 schematic
thickness (mm)
C
P-7190 schematic
length barrel (inch)
D
P-7190 schematic
length barrel (mm)
D
P-7190 schematic
length open position (inch)
E
P-7190 schematic
length open position (mm)
E
P-7190 schematic
length closed position (inch)
F
P-7190 schematic
length closed position (mm)
F
P-7190 schematic
diameter eye inside (inch)
G
P-7190 schematic
diameter eye inside (mm)
G
P-7190 schematic
diameter eye outside (inch)
H
P-7190 schematic
diameter eye outside (mm)
H
P-7190 schematic
Net weight (KG) Net weight (LBS)
LCRR08ZHEN 8 4 5 8 160 387 65 15 255 534 374 18 50 3.31
LCRR08ZHEN 5/16 4 5 8 6 9/32 15 1/4 2 9/16 19/32 10 1/32 21 1/32 14 23/32 23/32 1 31/32 7.30
LCRR10ZHEN 10 6,3 7,9 12,6 164 387 65 15 255 543 379 20 55 3.51
LCRR10ZHEN 3/8 6,3 7,9 12,6 6 7/16 15 1/4 2 9/16 19/32 10 1/32 21 3/8 14 29/32 25/32 2 5/32 7.74
LCRR13ZHEN 13 10 12,5 21,2 150 387 65 15 260 564 414 26 66 3.96
LCRR13ZHEN 1/2 10 12,5 21,2 5 29/32 15 1/4 2 9/16 19/32 10 1/4 22 3/16 16 5/16 1 1/32 2 19/32 8.73
LCRR16ZHEN 16 16 20 32,2 144 387 65 15 260 564 420 30 71 4.11
LCRR16ZHEN 5/8 16 20 32,2 5 11/16 15 1/4 2 9/16 19/32 10 1/4 22 3/16 16 9/16 1 3/16 2 25/32 9.06

Frequently Asked Questions

FAQs
Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Green Pin® Ratchet Loadbinder EN12195-3

Ratchet type loadbinder without hooks according to EN 12195-3

Highlights


  • Ratchet allows for precise setting of lashing length and tension
  • Conforms to European lashing norm EN 12195-3
  • Supplied without hooks to accommodate your custom solution
  • Safety prevents unintentional unscrewing
  • Superior stock availability of 99%

Description


The Green Pin® Ratchet Loadbinder EN12195-3 is a ratchet type loadbinder without hooks according to European lashing norm EN 12195-3. The ratchet enables the precise setting of the lashing length and tension. As the loadbinder is supplied without hooks, it is suitable for custom applications. The loadbinder is also equipped with a safety latch that prevents the chain from sliding back. The Green Pin® Ratchet Loadbinder EN12195-3 is available in a range to suit 8 mm up to 16 mm grade 8 chain.

Product details


  • ProductcodeP-7190
  • Materialdrop forged steel, Grade 8
  • Safety factorMBL equals 2 x Lashing Capacity
  • Finishpainted red
  • Certification 2.1 2.2
  • StandardEN 12195-3
  • NoteStf = 3000 daN
www.greenpin.com
Green Pin® Ratchet Loadbinder EN12195-3
Technical specifications in milimeters
Article code chain size lashing capacity proof load minimum breaking load take-up A length handle B diameter C thickness D length barrel E length open position F length closed position G diameter eye inside H diameter eye outside Net weight
(kg)
LCRR08ZHEN 8 4 5 8 160 387 65 15 255 534 374 18 50 3.31
LCRR10ZHEN 10 6,3 7,9 12,6 164 387 65 15 255 543 379 20 55 3.51
LCRR13ZHEN 13 10 12,5 21,2 150 387 65 15 260 564 414 26 66 3.96
LCRR16ZHEN 16 16 20 32,2 144 387 65 15 260 564 420 30 71 4.11
www.greenpin.com
Green Pin® Ratchet Loadbinder EN12195-3
Technical specifications in inches
Article code chain size (inch) lashing capacity proof load minimum breaking load take up (inch) A length handle (inch) B diameter (inch) C thickness (inch) D length barrel (inch) E length open position (inch) F length closed position (inch) G diameter eye inside (inch) H diameter eye outside (inch) Net weight
(LBS)
LCRR08ZHEN 5/16 4 5 8 6 9/32 15 1/4 2 9/16 19/32 10 1/32 21 1/32 14 23/32 23/32 1 31/32 7.30
LCRR10ZHEN 3/8 6,3 7,9 12,6 6 7/16 15 1/4 2 9/16 19/32 10 1/32 21 3/8 14 29/32 25/32 2 5/32 7.74
LCRR13ZHEN 1/2 10 12,5 21,2 5 29/32 15 1/4 2 9/16 19/32 10 1/4 22 3/16 16 5/16 1 1/32 2 19/32 8.73
LCRR16ZHEN 5/8 16 20 32,2 5 11/16 15 1/4 2 9/16 19/32 10 1/4 22 3/16 16 9/16 1 3/16 2 25/32 9.06
www.greenpin.com
Green Pin® Ratchet Loadbinder EN12195-3
Technical drawing
P-7190 schematic
