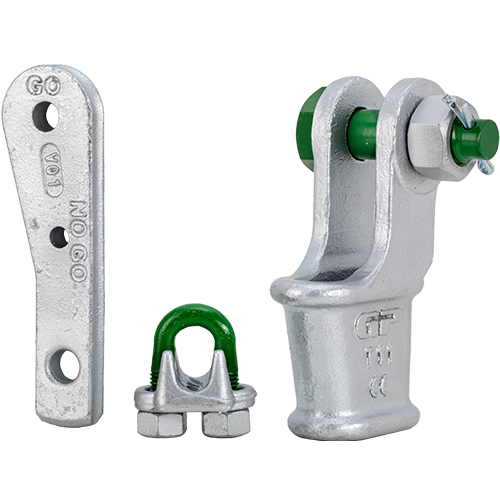

Green Pin® Open Long Wedge Socket BN

Open wedge socket with longer wedge, wire rope clip and safety bolt
    Highlights
  • Triple safety due to long wedge with wire rope clip attached, cotter pin & safety bolt
  • No risk of the wedge falling out of the socket
  • Always use correct rope size with go/no go holes
  • Safer: length of dead-end wire rope is always correct
  • Extra piece of wire rope, to completely fill the clip's opening, is no longer needed
    • Cad drawing Pdf / Print
Description

The Green Pin® Open Long Wedge Socket BN is an open wedge socket with a safety bolt. The socket offers a triple safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. To enhance further safety, the socket is equipped with a long wedge to which a Green Pin® Wire Rope Clip can be connected to hold the wire rope in place. Furthermore, the long wedge provides the possibility to verify whether the correct wire rope size is used, by using the "GO" and "NO GO" holes. The socket is made from high tensile, galvanized steel, which ensures its long-term durability. The Open Long Wedge Socket BN is available for wire rope with a diameter from 9-10 up to 30-32 mm.

Product details
  • Productcode
    G-6429
  • Material
    high tensile steel
  • Finish
    hot dipped galvanized
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • CE
  • Standard
    ASME B30.26 and generally to EN 13411-6
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code Number (inch)
Number (mm)
minimum breaking load (ton)
minimum breaking load (ton)
diameter wire rope (mm)
diameter wire rope (inch)
length (inch)
A
Green Pin<sup>®</sup> Open Long Wedge Socket BN
length (mm)
A
Green Pin<sup>®</sup> Open Long Wedge Socket BN
length to center pin (inch)
B
Green Pin<sup>®</sup> Open Long Wedge Socket BN
length to center pin (mm)
B
Green Pin<sup>®</sup> Open Long Wedge Socket BN
width (inch)
C
Green Pin<sup>®</sup> Open Long Wedge Socket BN
width (mm)
C
Green Pin<sup>®</sup> Open Long Wedge Socket BN
width inside (inch)
D
Green Pin<sup>®</sup> Open Long Wedge Socket BN
width inside (mm)
D
Green Pin<sup>®</sup> Open Long Wedge Socket BN
diameter pin (inch)
E
Green Pin<sup>®</sup> Open Long Wedge Socket BN
diameter pin (mm)
E
Green Pin<sup>®</sup> Open Long Wedge Socket BN
thickness side plates (inch)
F
Green Pin<sup>®</sup> Open Long Wedge Socket BN
thickness side plates (mm)
F
Green Pin<sup>®</sup> Open Long Wedge Socket BN
diameter eye (inch)
G
Green Pin<sup>®</sup> Open Long Wedge Socket BN
diameter eye (mm)
G
Green Pin<sup>®</sup> Open Long Wedge Socket BN
Net weight (KG) Net weight (LBS)
PDF SKGOW010SBL 0.5 12 9 - 10 165 142 83 20,5 20 11 46 1.50
PDF SKGOW010SBL 0.5 12 3/8 6 1/2 5 19/32 3 9/32 13/16 25/32 7/16 1 13/16 3.31
PDF SKGOW013SBL 1 20 11 - 13 175 146 101 25 25 12 57 3.24
PDF SKGOW013SBL 1 20 1/2 6 7/8 5 3/4 3 31/32 1 1 15/32 2 1/4 7.14
PDF SKGOW016SBL 2 25 14 - 16 211 176 124 31 30 15 70 4.80
PDF SKGOW016SBL 2 25 5/8 8 5/16 6 29/32 4 7/8 1 1/4 1 3/16 19/32 2 3/4 10.6
PDF SKGOW019SBL 3 40 18 - 19 252 212 138 38 35 16 80 8.30
PDF SKGOW019SBL 3 40 3/4 9 15/16 8 11/32 5 7/16 1 17/32 1 3/8 5/8 3 5/32 18.3
PDF SKGOW022SBL 4 55 20 - 22 288 240 148 44 41 19 95 11.0
PDF SKGOW022SBL 4 55 7/8 11 11/32 9 1/2 5 13/16 1 3/4 1 5/8 3/4 3 3/4 24.3
PDF SKGOW025SBL 5 75 24 - 26 329 274 176 51 50 22 110 19.9
PDF SKGOW025SBL 5 75 1 12 15/16 10 25/32 6 29/32 2 1 31/32 7/8 4 5/16 43.9
PDF SKGOW028SBL 6 90 27 - 29 375 310 193 57 57 25 130 21.0
PDF SKGOW028SBL 6 90 1 1/8 14 3/4 12 3/16 7 19/32 2 1/4 2 1/4 1 5 1/8 46.3
PDF SKGOW032SBL 7 110 30 - 32 423 350 210 63 63 28 146 33.0
PDF SKGOW032SBL 7 110 1 1/4 16 11/16 13 25/32 8 9/32 2 1/2 2 1/2 1 1/8 5 3/4 72.8

Frequently Asked Questions

FAQs
How should I use the Green Pin® Open Long Wedge Socket?

Please find the user manual here.

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Open Long Wedge Socket BN

Open wedge socket with longer wedge, wire rope clip and safety bolt

Highlights


  • Triple safety due to long wedge with wire rope clip attached, cotter pin & safety bolt
  • No risk of the wedge falling out of the socket
  • Always use correct rope size with go/no go holes
  • Safer: length of dead-end wire rope is always correct
  • Extra piece of wire rope, to completely fill the clip's opening, is no longer needed

Description


The Green Pin® Open Long Wedge Socket BN is an open wedge socket with a safety bolt. The socket offers a triple safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. To enhance further safety, the socket is equipped with a long wedge to which a Green Pin® Wire Rope Clip can be connected to hold the wire rope in place. Furthermore, the long wedge provides the possibility to verify whether the correct wire rope size is used, by using the "GO" and "NO GO" holes. The socket is made from high tensile, galvanized steel, which ensures its long-term durability. The Open Long Wedge Socket BN is available for wire rope with a diameter from 9-10 up to 30-32 mm.

Product details


  • ProductcodeG-6429
  • Materialhigh tensile steel
  • Finishhot dipped galvanized
  • Certification 2.1 2.2 3.1 CE
  • StandardASME B30.26 and generally to EN 13411-6
www.greenpin.com
Green Pin® Open Long Wedge Socket BN
Technical specifications in milimeters
Article code Number minimum breaking load diameter wire rope A length B length to center pin C width D width inside E diameter pin F thickness side plates G diameter eye Net weight
(kg)
SKGOW010SBL 0.5 12 9 - 10 165 142 83 20,5 20 11 46 1.50
SKGOW013SBL 1 20 11 - 13 175 146 101 25 25 12 57 3.24
SKGOW016SBL 2 25 14 - 16 211 176 124 31 30 15 70 4.80
SKGOW019SBL 3 40 18 - 19 252 212 138 38 35 16 80 8.30
SKGOW022SBL 4 55 20 - 22 288 240 148 44 41 19 95 11.0
SKGOW025SBL 5 75 24 - 26 329 274 176 51 50 22 110 19.9
SKGOW028SBL 6 90 27 - 29 375 310 193 57 57 25 130 21.0
SKGOW032SBL 7 110 30 - 32 423 350 210 63 63 28 146 33.0
www.greenpin.com
Green Pin® Open Long Wedge Socket BN
Technical specifications in inches
Article code Number minimum breaking load diameter wire rope (inch) A length (inch) B length to center pin (inch) C width (inch) D width inside (inch) E diameter pin (inch) F thickness side plates (inch) G diameter eye (inch) Net weight
(LBS)
SKGOW010SBL 0.5 12 3/8 6 1/2 5 19/32 3 9/32 13/16 25/32 7/16 1 13/16 3.31
SKGOW013SBL 1 20 1/2 6 7/8 5 3/4 3 31/32 1 1 15/32 2 1/4 7.14
SKGOW016SBL 2 25 5/8 8 5/16 6 29/32 4 7/8 1 1/4 1 3/16 19/32 2 3/4 10.6
SKGOW019SBL 3 40 3/4 9 15/16 8 11/32 5 7/16 1 17/32 1 3/8 5/8 3 5/32 18.3
SKGOW022SBL 4 55 7/8 11 11/32 9 1/2 5 13/16 1 3/4 1 5/8 3/4 3 3/4 24.3
SKGOW025SBL 5 75 1 12 15/16 10 25/32 6 29/32 2 1 31/32 7/8 4 5/16 43.9
SKGOW028SBL 6 90 1 1/8 14 3/4 12 3/16 7 19/32 2 1/4 2 1/4 1 5 1/8 46.3
SKGOW032SBL 7 110 1 1/4 16 11/16 13 25/32 8 9/32 2 1/2 2 1/2 1 1/8 5 3/4 72.8
www.greenpin.com
Green Pin® Open Long Wedge Socket BN
Technical drawing
Green Pin<sup>®</sup> Open Long Wedge Socket BN
