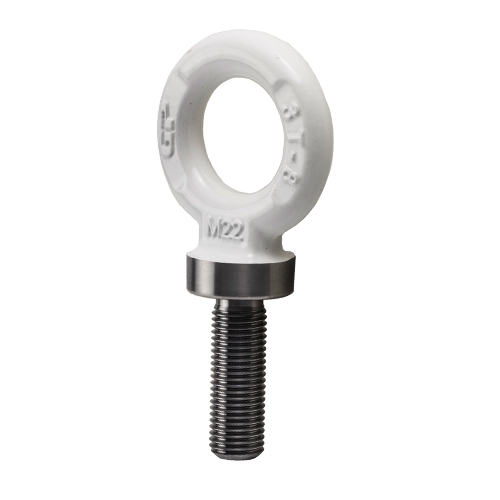

Green Pin® Lifting Eye UNC

Grade 8 lifting eye UNC
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

The Green Pin® Lifting Eye UNC is a grade 8 lifting eye with UNC thread. Our extensive range of alloy steel lifting eyes, incorporates 13 different UNC threads. The WLL for lifting points are valid within 45° to the vertical only, but can be even side loaded with reduction of the WLL. The longer thread length of the ALUNC makes a through-hole mounting with a nut and washer on the other side possible. The nut on the bolt should at least be class 8, but class 10 or 12 is recommended. WLL and CE marking are stamped on the body. Safety factor is 5:1. The thread length of the lifting eye should be adapted to the material of the load. The Green Pin® Lifting Eye UNC is available in a range with a working load limit from 0.2t up to 25t.

Product details
  • Productcode
    ALUNC
  • Material
    alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted white
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
    • CE
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
diameter thread (inch)
A
diameter thread (inch)
A
diameter base (inch)
B
diameter base (mm)
B
diameter eye outside (inch)
C
diameter eye outside (mm)
C
diameter eye inside (inch)
D
diameter eye inside (mm)
D
length (inch)
E
length (mm)
E
thickness base (inch)
F
thickness base (mm)
F
diameter (inch)
G
diameter (mm)
G
Net weight (KG) Net weight (LBS)
PDF GPAL06UNC 0,2 1/4 20 34 20 20 17 7 0.05
PDF GPAL06UNC 0,2 1/4 25/32 1 11/32 25/32 25/32 21/32 9/32 0.11
PDF GPAL10UNC 0,7 3/8 20 38 22 30 19 8 0.08
PDF GPAL10UNC 0,7 3/8 25/32 1 1/2 7/8 1 3/16 3/4 5/16 0.17
PDF GPAL12UNC 1 1/2 25 47 27 36 23 10 0.14
PDF GPAL12UNC 1 1/2 31/32 1 27/32 1 1/32 1 13/32 29/32 13/32 0.31
PDF GPAL16UNC 1,5 5/8 36 63 35 53 31 14 0.38
PDF GPAL16UNC 1,5 5/8 1 13/32 2 9/16 1 3/8 2 3/32 1 3/16 9/16 0.83
PDF GPAL20UNC 2,5 3/4 40 72 40 58 34 16 0.55
PDF GPAL20UNC 2,5 3/4 1 9/16 2 7/8 1 17/32 2 9/32 1 11/32 5/8 1.21
PDF GPAL22UNC 3 7/8 42 82 45 64 38 19 0.81
PDF GPAL22UNC 3 7/8 1 21/32 3 7/32 1 23/32 2 17/32 1 1/2 3/4 1.78
PDF GPAL24UNC 4 1 55 95 55 84 40 20 1.14
PDF GPAL24UNC 4 1 2 5/32 3 3/4 2 1/8 3 5/16 1 9/16 25/32 2.51
PDF GPAL27UNC 5 1 1/8 55 95 55 84 40 20 1.21
PDF GPAL27UNC 5 1 1/8 2 5/32 3 3/4 2 1/8 3 5/16 1 9/16 25/32 2.67
PDF GPAL30UNC 6 1 1/4 60 108 60 99 51 24 1.90
PDF GPAL30UNC 6 1 1/4 2 3/8 4 1/4 2 5/16 3 29/32 1 15/16 15/16 4.20
PDF GPAL36UNC 8 1 1/2 65 118 68 117 48 25 2.52
PDF GPAL36UNC 8 1 1/2 2 9/16 4 21/32 2 5/8 4 19/32 1 25/32 31/32 5.56
PDF GPAL42UNC 10 1 3/4 70 142 80 135 61 31 4.26
PDF GPAL42UNC 10 1 3/4 2 3/4 5 19/32 3 5/32 5 5/16 2 13/32 1 7/32 9.39
PDF GPAL45UNC 15 2 70 142 80 135 61 31 4.66
PDF GPAL45UNC 15 2 2 3/4 5 19/32 3 5/32 5 5/16 2 13/32 1 7/32 10.3
PDF GPAL56UNC 25 2 1/2 95 181 97 150 69 42 9.55
PDF GPAL56UNC 25 2 1/2 3 3/4 7 1/8 3 13/16 5 29/32 2 23/32 1 21/32 21.1

Frequently Asked Questions

FAQs
How should I use Green Pin® Lifting eyes (EL/AL/OL/ADA/PAS)?

Please find the user manual here.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Lifting Eye UNC

Grade 8 lifting eye UNC

Highlights


  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%

Description


The Green Pin® Lifting Eye UNC is a grade 8 lifting eye with UNC thread. Our extensive range of alloy steel lifting eyes, incorporates 13 different UNC threads. The WLL for lifting points are valid within 45° to the vertical only, but can be even side loaded with reduction of the WLL. The longer thread length of the ALUNC makes a through-hole mounting with a nut and washer on the other side possible. The nut on the bolt should at least be class 8, but class 10 or 12 is recommended. WLL and CE marking are stamped on the body. Safety factor is 5:1. The thread length of the lifting eye should be adapted to the material of the load. The Green Pin® Lifting Eye UNC is available in a range with a working load limit from 0.2t up to 25t.

Product details


  • ProductcodeALUNC
  • Materialalloy steel, Grade 8, quenched and tempered
  • Safety factorMBL equals 5 x WLL
  • Finishpainted white
  • Certification 2.1 2.2 3.1 MTCa MPIb CE
www.greenpin.com
Green Pin® Lifting Eye UNC
Technical specifications in milimeters
Article code working load limit A diameter thread (inch) B diameter base C diameter eye outside D diameter eye inside E length F thickness base G diameter Net weight
(kg)
GPAL06UNC 0,2 1/4 20 34 20 20 17 7 0.05
GPAL10UNC 0,7 3/8 20 38 22 30 19 8 0.08
GPAL12UNC 1 1/2 25 47 27 36 23 10 0.14
GPAL16UNC 1,5 5/8 36 63 35 53 31 14 0.38
GPAL20UNC 2,5 3/4 40 72 40 58 34 16 0.55
GPAL22UNC 3 7/8 42 82 45 64 38 19 0.81
GPAL24UNC 4 1 55 95 55 84 40 20 1.14
GPAL27UNC 5 1 1/8 55 95 55 84 40 20 1.21
GPAL30UNC 6 1 1/4 60 108 60 99 51 24 1.90
GPAL36UNC 8 1 1/2 65 118 68 117 48 25 2.52
GPAL42UNC 10 1 3/4 70 142 80 135 61 31 4.26
GPAL45UNC 15 2 70 142 80 135 61 31 4.66
GPAL56UNC 25 2 1/2 95 181 97 150 69 42 9.55
www.greenpin.com
Green Pin® Lifting Eye UNC
Technical specifications in milimeters
Article code working load limit A diameter thread (inch) B diameter base C diameter eye outside D diameter eye inside E length F thickness base G diameter Net weight
(kg)
GPAL06UNC 0,2 1/4 20 34 20 20 17 7 0.05
GPAL10UNC 0,7 3/8 20 38 22 30 19 8 0.08
GPAL12UNC 1 1/2 25 47 27 36 23 10 0.14
GPAL16UNC 1,5 5/8 36 63 35 53 31 14 0.38
GPAL20UNC 2,5 3/4 40 72 40 58 34 16 0.55
GPAL22UNC 3 7/8 42 82 45 64 38 19 0.81
GPAL24UNC 4 1 55 95 55 84 40 20 1.14
GPAL27UNC 5 1 1/8 55 95 55 84 40 20 1.21
GPAL30UNC 6 1 1/4 60 108 60 99 51 24 1.90
GPAL36UNC 8 1 1/2 65 118 68 117 48 25 2.52
GPAL42UNC 10 1 3/4 70 142 80 135 61 31 4.26
GPAL45UNC 15 2 70 142 80 135 61 31 4.66
GPAL56UNC 25 2 1/2 95 181 97 150 69 42 9.55
www.greenpin.com
Green Pin® Lifting Eye UNC
Technical specifications in inches
Article code working load limit A diameter thread (inch) B diameter base (inch) C diameter eye outside (inch) D diameter eye inside (inch) E length (inch) F thickness base (inch) G diameter (inch) Net weight
(LBS)
GPAL06UNC 0,2 1/4 25/32 1 11/32 25/32 25/32 21/32 9/32 0.11
GPAL10UNC 0,7 3/8 25/32 1 1/2 7/8 1 3/16 3/4 5/16 0.17
GPAL12UNC 1 1/2 31/32 1 27/32 1 1/32 1 13/32 29/32 13/32 0.31
GPAL16UNC 1,5 5/8 1 13/32 2 9/16 1 3/8 2 3/32 1 3/16 9/16 0.83
GPAL20UNC 2,5 3/4 1 9/16 2 7/8 1 17/32 2 9/32 1 11/32 5/8 1.21
GPAL22UNC 3 7/8 1 21/32 3 7/32 1 23/32 2 17/32 1 1/2 3/4 1.78
GPAL24UNC 4 1 2 5/32 3 3/4 2 1/8 3 5/16 1 9/16 25/32 2.51
GPAL27UNC 5 1 1/8 2 5/32 3 3/4 2 1/8 3 5/16 1 9/16 25/32 2.67
GPAL30UNC 6 1 1/4 2 3/8 4 1/4 2 5/16 3 29/32 1 15/16 15/16 4.20
GPAL36UNC 8 1 1/2 2 9/16 4 21/32 2 5/8 4 19/32 1 25/32 31/32 5.56
GPAL42UNC 10 1 3/4 2 3/4 5 19/32 3 5/32 5 5/16 2 13/32 1 7/32 9.39
GPAL45UNC 15 2 2 3/4 5 19/32 3 5/32 5 5/16 2 13/32 1 7/32 10.3
GPAL56UNC 25 2 1/2 3 3/4 7 1/8 3 13/16 5 29/32 2 23/32 1 21/32 21.1
www.greenpin.com
Green Pin® Lifting Eye UNC
Technical specifications in inches
Article code working load limit A diameter thread (inch) B diameter base (inch) C diameter eye outside (inch) D diameter eye inside (inch) E length (inch) F thickness base (inch) G diameter (inch) Net weight
(LBS)
GPAL06UNC 0,2 1/4 25/32 1 11/32 25/32 25/32 21/32 9/32 0.11
GPAL10UNC 0,7 3/8 25/32 1 1/2 7/8 1 3/16 3/4 5/16 0.17
GPAL12UNC 1 1/2 31/32 1 27/32 1 1/32 1 13/32 29/32 13/32 0.31
GPAL16UNC 1,5 5/8 1 13/32 2 9/16 1 3/8 2 3/32 1 3/16 9/16 0.83
GPAL20UNC 2,5 3/4 1 9/16 2 7/8 1 17/32 2 9/32 1 11/32 5/8 1.21
GPAL22UNC 3 7/8 1 21/32 3 7/32 1 23/32 2 17/32 1 1/2 3/4 1.78
GPAL24UNC 4 1 2 5/32 3 3/4 2 1/8 3 5/16 1 9/16 25/32 2.51
GPAL27UNC 5 1 1/8 2 5/32 3 3/4 2 1/8 3 5/16 1 9/16 25/32 2.67
GPAL30UNC 6 1 1/4 2 3/8 4 1/4 2 5/16 3 29/32 1 15/16 15/16 4.20
GPAL36UNC 8 1 1/2 2 9/16 4 21/32 2 5/8 4 19/32 1 25/32 31/32 5.56
GPAL42UNC 10 1 3/4 2 3/4 5 19/32 3 5/32 5 5/16 2 13/32 1 7/32 9.39
GPAL45UNC 15 2 2 3/4 5 19/32 3 5/32 5 5/16 2 13/32 1 7/32 10.3
GPAL56UNC 25 2 1/2 3 3/4 7 1/8 3 13/16 5 29/32 2 23/32 1 21/32 21.1
www.greenpin.com
Green Pin® Lifting Eye UNC
Technical drawing
