Green Pin® Lifting Eye DIN580-Length S/S-GR5

Grade 5 stainless steel lifting eye length as DIN580
    Highlights
  • Stainless steel assures long-term durability
  • Reliable Green Pin® quality and support
    • Cad drawing Pdf / Print
Description

The Green Pin® Stainless Steel Lifting Eye DIN580 is a grade 5 stainless steel lifting eye with a shorter length in conformity with the DIN580 standard. The non-corrosive nature of stainless steel makes it the perfect choice for use in industries such as foods, nuclear and sailing. The WLL for lifting points are valid for in-line lifting only, but can be side loaded with reduction of the WLL. Safety factor is 5:1. The thread length of the lifting eye should be adapted to the material of the load. The Green Pin® Stainless Steel Lifting Eye DIN580 is available in a range with a working load limit from 0.2 t. up to 3 t.

Product details
  • Productcode
    ALDINI
  • Material
    AISI 316L, grade 5
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    polished
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • CE
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
diameter thread (inch)
A
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter thread (mm)
A
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter base (inch)
B
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter base (mm)
B
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter eye outside (inch)
C
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter eye outside (mm)
C
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter eye inside (inch)
D
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter eye inside (mm)
D
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
length (inch)
E
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
length (mm)
E
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
thickness base (inch)
F
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
thickness base (mm)
F
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter (inch)
G
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
diameter (mm)
G
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
Net weight (KG) Net weight (LBS)
PDF GPAL08DINI 0,2 8 20 34 20 13 16,5 7 0.05
PDF GPAL08DINI 0,2 5/16 25/32 1 11/32 25/32 1/2 21/32 9/32 0.11
PDF GPAL10DINI 0,4 10 20 38 22 17 19 8 0.07
PDF GPAL10DINI 0,4 13/32 25/32 1 1/2 7/8 21/32 3/4 5/16 0.16
PDF GPAL12DINI 0,6 12 25 47 27 21 23 10 0.13
PDF GPAL12DINI 0,6 15/32 31/32 1 27/32 1 1/16 13/16 29/32 13/32 0.28
PDF GPAL14DINI 0,8 14 30 57 30 27 27 13,5 0.24
PDF GPAL14DINI 0,8 9/16 1 3/16 2 1/4 1 3/16 1 1/16 1 1/16 17/32 0.53
PDF GPAL16DINI 1 16 36 63 35 27 31 14 0.34
PDF GPAL16DINI 1 5/8 1 13/32 2 15/32 1 3/8 1 1/16 1 7/32 9/16 0.75
PDF GPAL18DINI 1,5 18 36 63 35 30 31 14 0.35
PDF GPAL18DINI 1,5 23/32 1 13/32 2 15/32 1 3/8 1 3/16 1 7/32 9/16 0.77
PDF GPAL20DINI 2 20 40 72 40 30 34 16 0.52
PDF GPAL20DINI 2 25/32 1 9/16 2 27/32 1 9/16 1 3/16 1 11/32 5/8 1.15
PDF GPAL22DINI 2,5 22 42 82 45 35 38 18,5 0.71
PDF GPAL22DINI 2,5 7/8 1 21/32 3 7/32 1 25/32 1 3/8 1 1/2 3/4 1.57
PDF GPAL24DINI 3 24 55 95 55 36 40 20 0.98
PDF GPAL24DINI 3 15/16 2 5/32 3 3/4 2 5/32 1 13/32 1 9/16 25/32 2.16

Frequently Asked Questions

FAQs
Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Lifting Eye DIN580-Length S/S-GR5

Grade 5 stainless steel lifting eye length as DIN580

Highlights


  • Stainless steel assures long-term durability
  • Reliable Green Pin® quality and support

Description


The Green Pin® Stainless Steel Lifting Eye DIN580 is a grade 5 stainless steel lifting eye with a shorter length in conformity with the DIN580 standard. The non-corrosive nature of stainless steel makes it the perfect choice for use in industries such as foods, nuclear and sailing. The WLL for lifting points are valid for in-line lifting only, but can be side loaded with reduction of the WLL. Safety factor is 5:1. The thread length of the lifting eye should be adapted to the material of the load. The Green Pin® Stainless Steel Lifting Eye DIN580 is available in a range with a working load limit from 0.2 t. up to 3 t.

Product details


  • ProductcodeALDINI
  • MaterialAISI 316L, grade 5
  • Safety factorMBL equals 5 x WLL
  • Finishpolished
  • Certification 2.1 2.2 3.1 CE
www.greenpin.com
Green Pin® Lifting Eye DIN580-Length S/S-GR5
Technical specifications in milimeters
Article code working load limit A diameter thread B diameter base C diameter eye outside D diameter eye inside E length F thickness base G diameter Net weight
(kg)
GPAL08DINI 0,2 8 20 34 20 13 16,5 7 0.05
GPAL10DINI 0,4 10 20 38 22 17 19 8 0.07
GPAL12DINI 0,6 12 25 47 27 21 23 10 0.13
GPAL14DINI 0,8 14 30 57 30 27 27 13,5 0.24
GPAL16DINI 1 16 36 63 35 27 31 14 0.34
GPAL18DINI 1,5 18 36 63 35 30 31 14 0.35
GPAL20DINI 2 20 40 72 40 30 34 16 0.52
GPAL22DINI 2,5 22 42 82 45 35 38 18,5 0.71
GPAL24DINI 3 24 55 95 55 36 40 20 0.98
www.greenpin.com
Green Pin® Lifting Eye DIN580-Length S/S-GR5
Technical specifications in inches
Article code working load limit A diameter thread (inch) B diameter base (inch) C diameter eye outside (inch) D diameter eye inside (inch) E length (inch) F thickness base (inch) G diameter (inch) Net weight
(LBS)
GPAL08DINI 0,2 5/16 25/32 1 11/32 25/32 1/2 21/32 9/32 0.11
GPAL10DINI 0,4 13/32 25/32 1 1/2 7/8 21/32 3/4 5/16 0.16
GPAL12DINI 0,6 15/32 31/32 1 27/32 1 1/16 13/16 29/32 13/32 0.28
GPAL14DINI 0,8 9/16 1 3/16 2 1/4 1 3/16 1 1/16 1 1/16 17/32 0.53
GPAL16DINI 1 5/8 1 13/32 2 15/32 1 3/8 1 1/16 1 7/32 9/16 0.75
GPAL18DINI 1,5 23/32 1 13/32 2 15/32 1 3/8 1 3/16 1 7/32 9/16 0.77
GPAL20DINI 2 25/32 1 9/16 2 27/32 1 9/16 1 3/16 1 11/32 5/8 1.15
GPAL22DINI 2,5 7/8 1 21/32 3 7/32 1 25/32 1 3/8 1 1/2 3/4 1.57
GPAL24DINI 3 15/16 2 5/32 3 3/4 2 5/32 1 13/32 1 9/16 25/32 2.16
www.greenpin.com
Green Pin® Lifting Eye DIN580-Length S/S-GR5

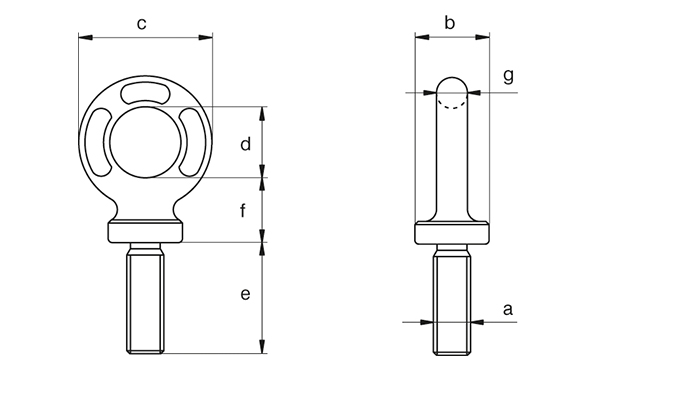

Technical drawing
Green Pin<sup>®</sup> Lifting Eye DIN580-Length S/S-GR5
