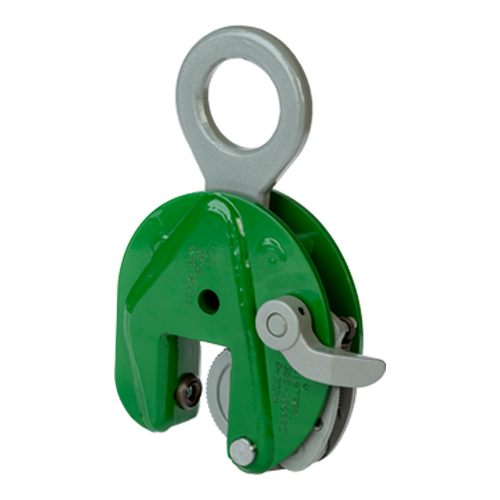

Green Pin® Lifting Clamp V-type

Plate clamp for lifting and vertical transportation
    Highlights
  • Extremely safe due to innovative plate-locking system
  • Easy to handle due to light weight
  • Sturdy build and coating assure long-term durability
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
Description

The Green Pin® Lifting Clamp V-type is a plate clamp for lifting and vertical transportation. Because of its innovative plate-locking system, the Green Pin® Lifting Clamp V-type is extremely safe to use. It is also easy to handle due to its light-weight and sturdy built. Long-term durability is assured as a result of the plate lifting clamp's long-lasting coating. The Green Pin® Lifting Clamp V-type is available in a range with a working load limit from 0.75 up to 20 ton. This product is also available in a version with an enlarged clamp opening: Green Pin BigMouth® Lifting Clamp V-type.

Product details
  • Productcode
    P-6615
  • Material
    carbon and alloy steel
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted
  • Temp. range
    -40°C up to +100°C
  • Certification
    • 2.1
    • 2.2
    • MTCb
    • CE
  • Standard
    Generally to EN 13115, ASME B30.20-2010 and AS 4991

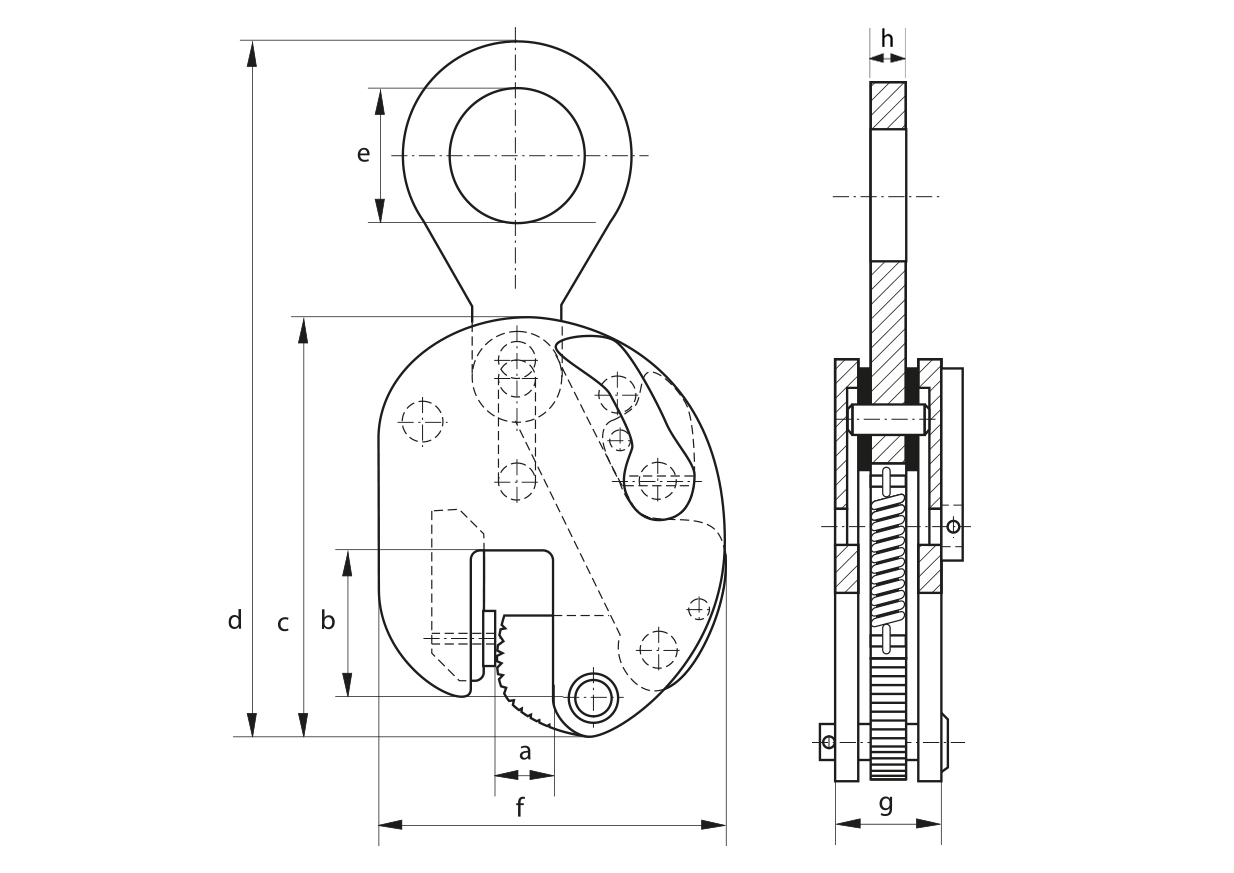

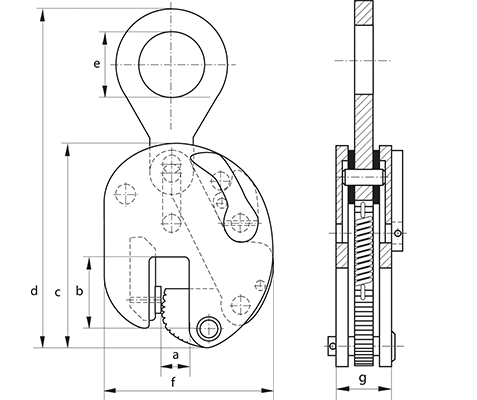

Technical specifications in
mminch
Pdf
Article code
type ()
type ()
working load limit (ton)
working load limit (ton)
width opening (mm) A
width opening (inch) A
length opening (inch) B
length opening (mm) B
width (inch) C
width (mm) C
length (inch) D
length (mm) D
diameter eye inside (inch) E
diameter eye inside (mm) E
width (inch) F
width (mm) F
thickness (inch) G
thickness (mm) G
thickness (inch) H
thickness (mm) H
Nett weight KG
Nett weight LBS
PK007E 0.75 V 0,75 0 - 13 47 37 202 30 100 37 10 1.73
PK007E 0.75 V 0,75 0 - 1/2 1 27/32 1 15/32 7 15/16 1 3/16 3 15/16 1 15/32 13/32 3.82
PK010E 1 V 1 0 - 25 56 37 263 45 141 47 15 6.60
PK010E 1 V 1 0 - 31/32 2 7/32 1 15/32 10 11/32 1 25/32 5 9/16 1 27/32 19/32 14.6
PK020E 2 V 2 0 - 35 78 56 336 64 183 56 16 14.7
PK020E 2 V 2 0 - 1 3/8 3 1/16 2 7/32 13 7/32 2 17/32 7 7/32 2 7/32 5/8 32.5
PK030E 3 V 3 0 - 35 78 56 336 64 183 56 16 15.9
PK030E 3 V 3 0 - 1 3/8 3 1/16 2 7/32 13 7/32 2 17/32 7 7/32 2 7/32 5/8 35.1
PK045E 4.5 V 4,5 0 - 45 85 60 425 70 228 78 20 16
PK045E 4.5 V 4,5 0 - 1 25/32 3 11/32 2 3/8 16 23/32 2 3/4 8 31/32 3 1/16 25/32 35.3
PK060E 6 V 6 0 - 50 114 82 490 75 259 78 20 23.2
PK060E 6 V 6 0 - 1 31/32 4 1/2 3 7/32 19 5/16 2 15/16 10 3/16 3 1/16 25/32 51.2
PK075E 7.5 V 7,5 0 - 55 111 70 522 75 267 86 20 35
PK075E 7.5 V 7,5 0 - 2 5/32 4 3/8 2 3/4 20 4/8 2 15/16 10 1/2 3 3/8 25/32 77.2
PK090E 9 V 9 0 - 55 111 70 522 75 267 86 20 48
PK090E 9 V 9 0 - 2 5/32 4 3/8 2 3/4 20 4/8 2 15/16 10 1/2 3 3/8 25/32 106
PK120E 12 V 12 0 - 52 148 100 617 85 295 94 44 76
PK120E 12 V 12 0 - 2 1/16 5 13/16 3 15/16 24 5/16 3 11/32 11 5/8 3 11/16 1 23/32 168
PK150E 15 V 15 0 - 76 209 136 810 86 373 106 49 90.0
PK150E 15 V 15 0 - 3 8 7/32 5 11/32 31 7/8 3 3/8 14 11/16 4 3/16 1 15/16 198
PK200E 20 V 20 0 - 80 250 153 933 100 563 140 66 132
PK200E 20 V 20 0 - 3 5/32 9 27/32 6 1/32 36 23/32 3 15/16 22 5/32 5 1/2 2 19/32 291

Frequently Asked Questions

FAQs
Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02.

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How should I use a Green Pin® Plate lifting clamp, type E/ES/EU/EUS?

Please find the user manual here.
