Green Pin® Lifting Clamp U-type

Universal plate clamp for lifting and transportation in all directions
    Highlights
  • Suitable for both inline- and side loading
  • Extremely safe due to innovative plate-locking system
  • Easy to handle due to light weight
  • Sturdy build and coating assure long-term durability
  • Top choice in plate lifting clamps
    • Cad drawing Pdf / Print
Description

The Green Pin® Lifting Clamp U-type is a universal plate clamp used for lifting and horizontal transportation. This plate lifting clamp is the top choice in the Green Pin® lifting clamp range. The lifting clamp is suitable for both inline- and side loading and is extremely safe to use due to its innovative plate-locking system. Its durability is assured due to the product's sturdy built and long-lasting coating. The Green Pin® Lifting Clamp U-type is available in a range with a working load limit from 0.75 up to 12 ton. This product is also available in a version with an enlarged clamp opening: the Green Pin BigMouth® Lifting Clamp U-type.

Product details
  • Productcode
    P-6625
  • Material
    carbon and alloy steel
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted
  • Temp. range
    -40°C up to +100°C
  • Certification
    • 2.1
    • 2.2
    • MTCb
    • CE
  • Standard
    Generally to EN 13115, ASME B30.20-2010 and AS 4991
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code type (inch)
type (mm)
working load limit (ton)
working load limit (ton)
width opening (mm)
A
width opening (inch)
A
length opening (inch)
B
length opening (mm)
B
width (inch)
C
width (mm)
C
length (inch)
D
length (mm)
D
diameter eye inside (inch)
E
diameter eye inside (mm)
E
width (inch)
F
width (mm)
F
thickness (inch)
G
thickness (mm)
G
thickness (inch)
H
thickness (mm)
H
Net weight (KG) Net weight (LBS)
PK007EU 0.75 U 0,75 0 - 13 47 37 203 30 100 37 10 1.95
PK007EU 0.75 U 0,75 0 - 1/2 1 27/32 1 15/32 8 1 3/16 3 15/16 1 15/32 13/32 4.29
PK020EU 2 U 2 0 - 35 78 56 372 70 183 56 16 8
PK020EU 2 U 2 0 - 1 3/8 3 1/16 2 7/32 14 21/32 2 3/4 7 7/32 2 7/32 5/8 17.6
PK030EU 3 U 3 0 - 35 78 56 372 70 183 56 16 18.0
PK030EU 3 U 3 0 - 1 3/8 3 1/16 2 7/32 14 21/32 2 3/4 7 7/32 2 7/32 5/8 39.8
PK060EU 6 U 6 0 - 50 114 82 527 78 259 78 32 27.5
PK060EU 6 U 6 1 9/16 - 3 17/32 4 1/2 3 7/32 20 3/4 3 1/16 10 3/16 3 1/16 1 1/4 60.6
PK060EU 6 U 6 1 9/16 - 3 17/32 4 1/2 3 7/32 20 3/4 3 1/16 10 3/16 3 1/16 1 1/4 60.6
PK075EU 7.5 U 7,5 0 - 55 111 70 560 78 267 86 32 35
PK075EU 7.5 U 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 77.2
PK075EU 7.5 U 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 77.2
PK090EU 9 U 9 0 - 55 111 70 560 78 267 86 32 48
PK090EU 9 U 9 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 106
PK090EU 9 U 9 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 106
PK120EU 12 U 12 0 - 52 148 100 648 85 295 94 48 82
PK120EU 12 U 12 1 31/32 - 3 15/16 5 13/16 3 15/16 25 1/2 3 11/32 11 5/8 3 11/16 1 7/8 181
PK120EU 12 U 12 1 31/32 - 3 15/16 5 13/16 3 15/16 25 1/2 3 11/32 11 5/8 3 11/16 1 7/8 181

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

How should I use a Green Pin® Plate lifting clamp, type E/ES/EU/EUS?

Please find the user manual here.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Lifting Clamp U-type

Universal plate clamp for lifting and transportation in all directions

Highlights


  • Suitable for both inline- and side loading
  • Extremely safe due to innovative plate-locking system
  • Easy to handle due to light weight
  • Sturdy build and coating assure long-term durability
  • Top choice in plate lifting clamps

Description


The Green Pin® Lifting Clamp U-type is a universal plate clamp used for lifting and horizontal transportation. This plate lifting clamp is the top choice in the Green Pin® lifting clamp range. The lifting clamp is suitable for both inline- and side loading and is extremely safe to use due to its innovative plate-locking system. Its durability is assured due to the product's sturdy built and long-lasting coating. The Green Pin® Lifting Clamp U-type is available in a range with a working load limit from 0.75 up to 12 ton. This product is also available in a version with an enlarged clamp opening: the Green Pin BigMouth® Lifting Clamp U-type.

Product details


  • ProductcodeP-6625
  • Materialcarbon and alloy steel
  • Safety factorMBL equals 5 x WLL
  • Finishpainted
  • Certification 2.1 2.2 MTCb CE
  • StandardGenerally to EN 13115, ASME B30.20-2010 and AS 4991
www.greenpin.com
Green Pin® Lifting Clamp U-type
Technical specifications in milimeters
Article code type working load limit A width opening B length opening C width D length E diameter eye inside F width G thickness H thickness Net weight
(kg)
PK007EU 0.75 U 0,75 0 - 13 47 37 203 30 100 37 10 1.95
PK020EU 2 U 2 0 - 35 78 56 372 70 183 56 16 8
PK030EU 3 U 3 0 - 35 78 56 372 70 183 56 16 18.0
PK060EU 6 U 6 0 - 50 114 82 527 78 259 78 32 27.5
PK075EU 7.5 U 7,5 0 - 55 111 70 560 78 267 86 32 35
PK090EU 9 U 9 0 - 55 111 70 560 78 267 86 32 48
PK120EU 12 U 12 0 - 52 148 100 648 85 295 94 48 82
www.greenpin.com
Green Pin® Lifting Clamp U-type
Technical specifications in inches
Article code type working load limit A width opening (inch) B length opening C width (inch) D length (inch) E diameter eye inside (inch) F width (inch) G thickness (inch) H thickness (inch) Net weight
(LBS)
PK007EU 0.75 U 0,75 0 - 1/2 1 27/32 1 15/32 8 1 3/16 3 15/16 1 15/32 13/32 4.29
PK020EU 2 U 2 0 - 1 3/8 3 1/16 2 7/32 14 21/32 2 3/4 7 7/32 2 7/32 5/8 17.6
PK030EU 3 U 3 0 - 1 3/8 3 1/16 2 7/32 14 21/32 2 3/4 7 7/32 2 7/32 5/8 39.8
PK060EU 6 U 6 1 9/16 - 3 17/32 4 1/2 3 7/32 20 3/4 3 1/16 10 3/16 3 1/16 1 1/4 60.6
PK060EU 6 U 6 1 9/16 - 3 17/32 4 1/2 3 7/32 20 3/4 3 1/16 10 3/16 3 1/16 1 1/4 60.6
PK075EU 7.5 U 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 77.2
PK075EU 7.5 U 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 77.2
PK090EU 9 U 9 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 106
PK090EU 9 U 9 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 10 1/2 3 3/8 1 1/4 106
PK120EU 12 U 12 1 31/32 - 3 15/16 5 13/16 3 15/16 25 1/2 3 11/32 11 5/8 3 11/16 1 7/8 181
PK120EU 12 U 12 1 31/32 - 3 15/16 5 13/16 3 15/16 25 1/2 3 11/32 11 5/8 3 11/16 1 7/8 181
www.greenpin.com
Green Pin® Lifting Clamp U-type

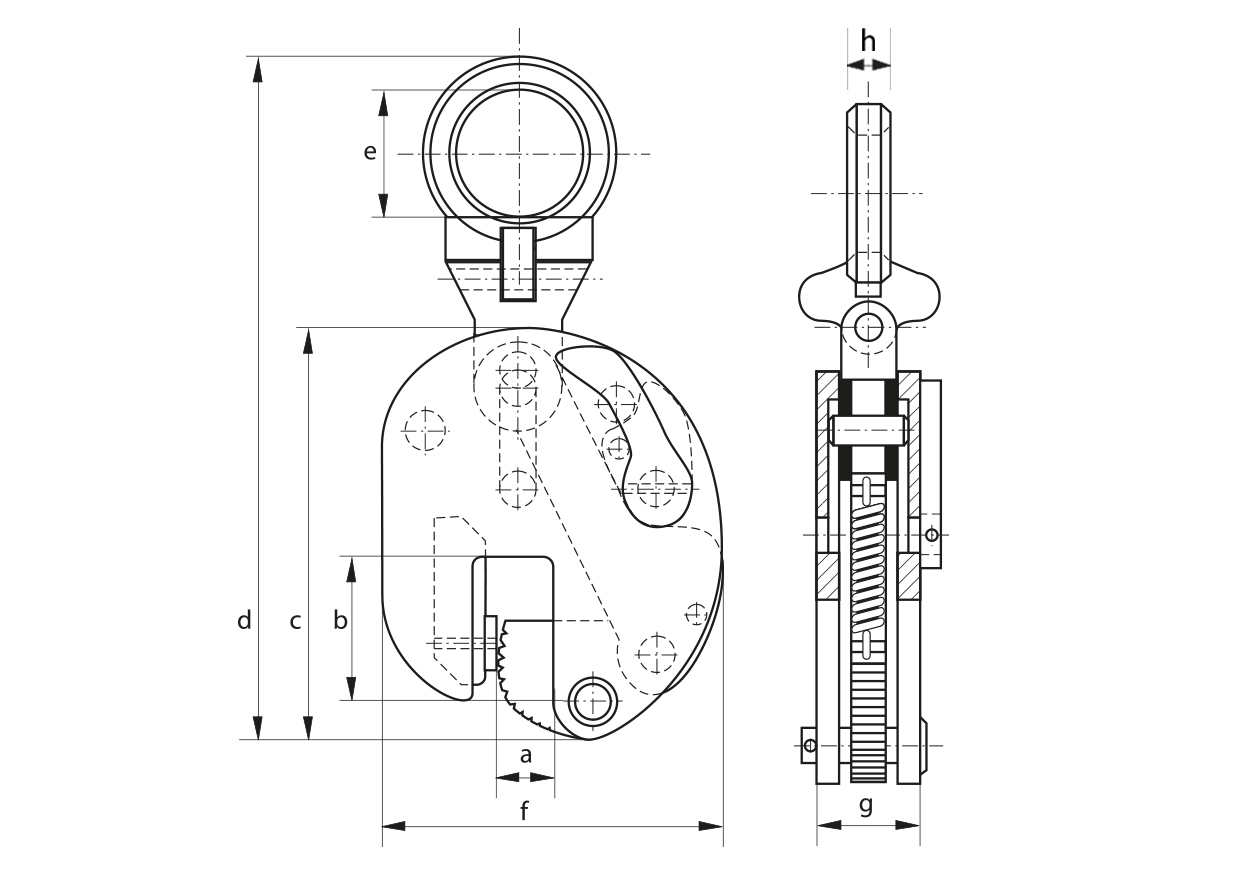

Technical drawing
