Green Pin® Grab Hook CL GR10

Grade 10 clevis grab hook
    Highlights
  • Easy assembly
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
    • Cad drawing Pdf / Print
Description

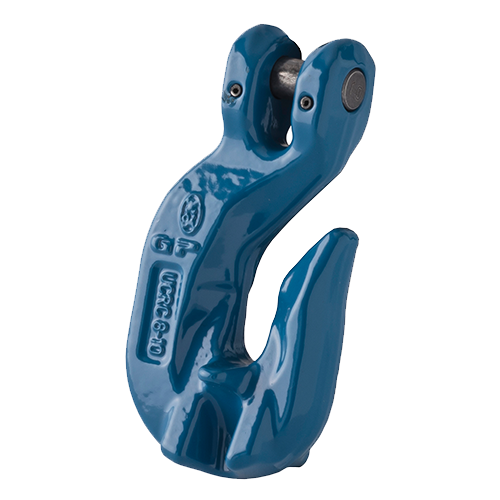

The Green Pin® Grab Hook CL is a grade 10 clevis grab hook. Grab hooks are designed with a special curved narrow throat used to "grab" and shorten or hold a length of chain used in general lifting applications. In case of asymmetric load, the grab hook can be used to adjust one or more legs of the sling. The curved design of this throat makes inserting the chain easier and quicker. Once fitted the chain is perfectly secured, because the curved throat avoids the chain to slip out and two pitches support the link properly. The clevis design enables a direct connection to grade 10 chain. When connecting the clevis hook to a master link, use at least 3 grade 10 chain links between the hook and the connecting link fixed on the master link. 100% load capacity. The Green Pin® Grab Hook CL is available in a range to suit 6 mm up to 16 mm grade 10 chain.

Product details
  • Productcode
    UCRC
  • Material
    alloy steel, Grade 10, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted blue
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
length (mm)
A
UCRC schematic
length (inch)
A
UCRC schematic
width (mm)
B
UCRC schematic
width (inch)
B
UCRC schematic
width outside (inch)
C
UCRC schematic
width outside (mm)
C
UCRC schematic
opening (mm)
D
UCRC schematic
opening (inch)
D
UCRC schematic
thickness (inch)
E
UCRC schematic
thickness (mm)
E
UCRC schematic
width (inch)
F
UCRC schematic
width (mm)
F
UCRC schematic
width outside (inch)
G
UCRC schematic
width outside (mm)
G
UCRC schematic
length outside (inch)
H
UCRC schematic
length outside (mm)
H
UCRC schematic
diameter pin (inch)
I
UCRC schematic
diameter pin (mm)
I
UCRC schematic
Net weight (KG) Net weight (LBS)
PDF GPUCRC6 1,4 6 52 7 28 8 24 25 42 91 8 0.35
PDF GPUCRC6 1,4 7/32 2 1/16 9/32 1 3/32 5/16 15/16 31/32 1 21/32 3 19/32 5/16 0.77
GPUCRC7 1,95 8 64 9 32 10 37 28 53 108 10 0.35
GPUCRC7 1,95 5/16 2 17/32 11/32 1 1/4 13/32 1 15/32 1 3/32 2 3/32 4 1/4 13/32 0.77
PDF GPUCRC8 2,6 8 64 9 32 10 37 28 53 108 10 0.35
PDF GPUCRC8 2,6 5/16 2 17/32 11/32 1 1/4 13/32 1 15/32 1 3/32 2 3/32 4 1/4 13/32 0.77
PDF GPUCRC10 4 10 89 11 42 12 42 39 66 151 13 1.06
PDF GPUCRC10 4 3/8 3 1/2 7/16 1 21/32 15/32 1 21/32 1 17/32 2 19/32 5 15/16 1/2 2.34
PDF GPUCRC13 6,8 13 103 15 54 15 56 40 87 173 16 1.70
PDF GPUCRC13 6,8 1/2 4 1/16 19/32 2 1/8 19/32 2 7/32 1 9/16 3 7/16 6 13/16 5/8 3.75
PDF GPUCRC16 10,3 16 120 18 67 19 65 58 106 214 20 3.76
PDF GPUCRC16 10,3 5/8 4 23/32 23/32 2 5/8 3/4 2 9/16 2 9/32 4 3/16 8 7/16 25/32 8.29

Frequently Asked Questions

FAQs
How should I use Green Pin® Clevis type fittings?

Please find the user manual here.

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Grab Hook CL GR10

Grade 10 clevis grab hook

Highlights


  • Easy assembly
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support

Description


The Green Pin® Grab Hook CL is a grade 10 clevis grab hook. Grab hooks are designed with a special curved narrow throat used to "grab" and shorten or hold a length of chain used in general lifting applications. In case of asymmetric load, the grab hook can be used to adjust one or more legs of the sling. The curved design of this throat makes inserting the chain easier and quicker. Once fitted the chain is perfectly secured, because the curved throat avoids the chain to slip out and two pitches support the link properly. The clevis design enables a direct connection to grade 10 chain. When connecting the clevis hook to a master link, use at least 3 grade 10 chain links between the hook and the connecting link fixed on the master link. 100% load capacity. The Green Pin® Grab Hook CL is available in a range to suit 6 mm up to 16 mm grade 10 chain.

Product details


  • ProductcodeUCRC
  • Materialalloy steel, Grade 10, quenched and tempered
  • Safety factorMBL equals 4 x WLL
  • Finishpainted blue
  • Certification 2.1 2.2 3.1 MTCa MPIb
www.greenpin.com
Green Pin® Grab Hook CL GR10
Technical specifications in milimeters
Article code working load limit for chain diameter A length B width C width outside D opening E thickness F width G width outside H length outside I diameter pin Net weight
(kg)
GPUCRC6 1,4 6 52 7 28 8 24 25 42 91 8 0.35
GPUCRC7 1,95 8 64 9 32 10 37 28 53 108 10 0.35
GPUCRC8 2,6 8 64 9 32 10 37 28 53 108 10 0.35
GPUCRC10 4 10 89 11 42 12 42 39 66 151 13 1.06
GPUCRC13 6,8 13 103 15 54 15 56 40 87 173 16 1.70
GPUCRC16 10,3 16 120 18 67 19 65 58 106 214 20 3.76
www.greenpin.com
Green Pin® Grab Hook CL GR10
Technical specifications in inches
Article code working load limit for chain diameter (inch) A length (inch) B width (inch) C width outside (inch) D opening (inch) E thickness (inch) F width (inch) G width outside (inch) H length outside (inch) I diameter pin (inch) Net weight
(LBS)
GPUCRC6 1,4 7/32 2 1/16 9/32 1 3/32 5/16 15/16 31/32 1 21/32 3 19/32 5/16 0.77
GPUCRC7 1,95 5/16 2 17/32 11/32 1 1/4 13/32 1 15/32 1 3/32 2 3/32 4 1/4 13/32 0.77
GPUCRC8 2,6 5/16 2 17/32 11/32 1 1/4 13/32 1 15/32 1 3/32 2 3/32 4 1/4 13/32 0.77
GPUCRC10 4 3/8 3 1/2 7/16 1 21/32 15/32 1 21/32 1 17/32 2 19/32 5 15/16 1/2 2.34
GPUCRC13 6,8 1/2 4 1/16 19/32 2 1/8 19/32 2 7/32 1 9/16 3 7/16 6 13/16 5/8 3.75
GPUCRC16 10,3 5/8 4 23/32 23/32 2 5/8 3/4 2 9/16 2 9/32 4 3/16 8 7/16 25/32 8.29
www.greenpin.com
Green Pin® Grab Hook CL GR10
Technical drawing
UCRC schematic
www.greenpin.com
