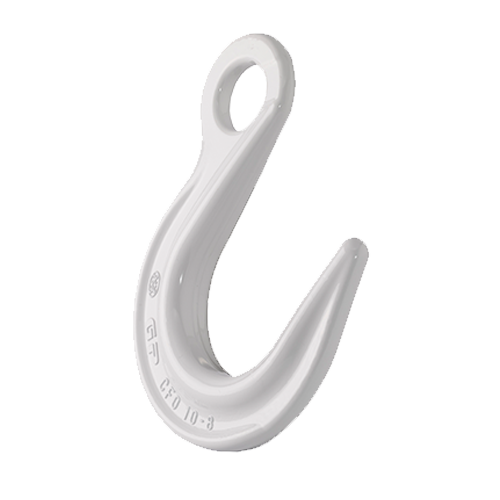

Green Pin® Foundry Hook E

Grade 8 eye foundry hook
    Highlights
  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%
    • Cad drawing Pdf / Print
Description

The Green Pin® Foundry Hook E is a grade 8 eye foundry hook. The throats are designed to accommodate standard trunnions, whereas the tips enable easy insertion into the holes of the melting pots. These hooks must be used for specific applications in foundries as they do not have safety latches. The Green Pin® Foundry Hook E is available in a range to suit 6 mm up to 32 mm grade 8 chain.

Product details
  • Productcode
    CFO
  • Material
    alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL
  • Finish
    painted white
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
    • DGUV
  • Note
    from 8.2 t without flat part
Contact
Technical specifications in
mminch
Pdf Article code working load limit (ton)
working load limit (ton)
for chain diameter (mm)
for chain diameter (inch)
length (mm)
A
Green Pin<sup>®</sup> Foundry Hook E
length (inch)
A
Green Pin<sup>®</sup> Foundry Hook E
diameter eye inside (mm)
B
Green Pin<sup>®</sup> Foundry Hook E
diameter eye inside (inch)
B
Green Pin<sup>®</sup> Foundry Hook E
opening hook (inch)
C
Green Pin<sup>®</sup> Foundry Hook E
opening hook (mm)
C
Green Pin<sup>®</sup> Foundry Hook E
thickness (mm)
D
Green Pin<sup>®</sup> Foundry Hook E
thickness (inch)
D
Green Pin<sup>®</sup> Foundry Hook E
width (inch)
E
Green Pin<sup>®</sup> Foundry Hook E
width (mm)
E
Green Pin<sup>®</sup> Foundry Hook E
diameter eye outside (inch)
F
Green Pin<sup>®</sup> Foundry Hook E
diameter eye outside (mm)
F
Green Pin<sup>®</sup> Foundry Hook E
width outside (inch)
G
Green Pin<sup>®</sup> Foundry Hook E
width outside (mm)
G
Green Pin<sup>®</sup> Foundry Hook E
length (inch)
H
Green Pin<sup>®</sup> Foundry Hook E
length (mm)
H
Green Pin<sup>®</sup> Foundry Hook E
thickness (inch)
I
Green Pin<sup>®</sup> Foundry Hook E
thickness (mm)
I
Green Pin<sup>®</sup> Foundry Hook E
Net weight (KG) Net weight (LBS)
PDF GPCFO6 1,12 6 93 19 48 17 21 38 97 124 7 0.33
PDF GPCFO6 1,12 7/32 3 21/32 3/4 1 7/8 21/32 13/16 1 1/2 3 13/16 4 7/8 9/32 0.73
PDF GPCFO7/8 2 7 - 8 125 25 64 22 28 50 129 165 9 0.78
PDF GPCFO7/8 2 1/4 - 5/16 4 29/32 31/32 2 17/32 7/8 1 3/32 1 31/32 5 3/32 6 1/2 11/32 1.72
PDF GPCFO10 3,2 10 157 34 79 27 35 65 161 208 11 1.50
PDF GPCFO10 3,2 3/8 6 3/16 1 11/32 3 1/8 1 1/16 1 3/8 2 9/16 6 11/32 8 3/16 7/16 3.31
PDF GPCFO13 5,4 13 190 44 95 35 45 84 198 254 13 3.00
PDF GPCFO13 5,4 1/2 7 15/32 1 23/32 3 3/4 1 3/8 1 25/32 3 5/16 7 25/32 10 1/2 6.62
GPCFO16 8,2 16 205 35 95 45 52 88 204 284 24 4.16
GPCFO16 8,2 5/8 8 1/16 1 3/8 3 3/4 1 25/32 2 2/16 3 15/32 8 1/32 11 3/16 15/16 9.18
GPCFO18/20 12,8 18 - 20 235 40 111 53 55 92 228 315 25 7.80
GPCFO18/20 12,8 3/4 9 1/4 1 9/16 4 3/8 2 3/32 2 5/32 3 5/8 8 31/32 12 13/32 31/32 17.2
GPCFO22 15,5 22 265 46 123 66 71 110 258 268 32 9.87
GPCFO22 15,5 7/8 10 7/16 1 13/16 4 27/32 2 19/32 2 25/32 4 11/32 10 5/32 10 9/16 1 1/4 21.8
GPCFO26 21,6 26 305 54 133 65 81 120 277 420 33 13.8
GPCFO26 21,6 1 12 2 1/8 5 1/4 2 9/16 3 3/16 4 23/32 10 29/32 16 17/32 1 5/16 30.4
GPCFO32 32,8 32 327 60 155 84 96 131 333 459 35 24.5
GPCFO32 32,8 1 1/4 12 7/8 2 3/8 6 3/32 3 5/16 3 25/32 5 5/32 13 1/8 18 1/16 1 3/8 54.0

Frequently Asked Questions

FAQs
Where can I find the DGUV Type Approval?

DGUV Type Approval
Van Beest puts great emphasis on the quality of products. Recently, we have renewed our DGUV Type Approvals for many of our products. This allows us to H-stamp the components with our unique H number (H94).

DGUV (Deutsche Gesetzliche Unfallversicherung / German Social Accident Insurance) is the umbrella association of the accident insurance institutions for the industrial and public sectors, a leading certification association in Europe.

The test procedure includes verification of materials, verification of the dimensions on individual samples, tensile tests, fatigue tests and some specific tests such as a bending test, a latch lock test and a latch strength test. The results are compared to the specifications mentioned in the EN 1677 norm. With this comprehensive testing procedure and certification of both chain and components, Van Beest supplies the highest quality products that contribute to a safe working environment. Click here to download all the certificates.

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin® Foundry Hook E

Grade 8 eye foundry hook

Highlights


  • Reliable Green Pin® quality and support
  • Superior stock availability of 99%

Description


The Green Pin® Foundry Hook E is a grade 8 eye foundry hook. The throats are designed to accommodate standard trunnions, whereas the tips enable easy insertion into the holes of the melting pots. These hooks must be used for specific applications in foundries as they do not have safety latches. The Green Pin® Foundry Hook E is available in a range to suit 6 mm up to 32 mm grade 8 chain.

Product details


  • ProductcodeCFO
  • Materialalloy steel, Grade 8, quenched and tempered
  • Safety factorMBL equals 4 x WLL
  • Finishpainted white
  • Certification 2.1 2.2 3.1 MTCa MPIb DGUV
  • Notefrom 8.2 t without flat part
www.greenpin.com
Green Pin® Foundry Hook E
Technical specifications in milimeters
Article code working load limit for chain diameter A length B diameter eye inside C opening hook D thickness E width F diameter eye outside G width outside H length I thickness Net weight
(kg)
GPCFO6 1,12 6 93 19 48 17 21 38 97 124 7 0.33
GPCFO7/8 2 7 - 8 125 25 64 22 28 50 129 165 9 0.78
GPCFO10 3,2 10 157 34 79 27 35 65 161 208 11 1.50
GPCFO13 5,4 13 190 44 95 35 45 84 198 254 13 3.00
GPCFO16 8,2 16 205 35 95 45 52 88 204 284 24 4.16
GPCFO18/20 12,8 18 - 20 235 40 111 53 55 92 228 315 25 7.80
GPCFO22 15,5 22 265 46 123 66 71 110 258 268 32 9.87
GPCFO26 21,6 26 305 54 133 65 81 120 277 420 33 13.8
GPCFO32 32,8 32 327 60 155 84 96 131 333 459 35 24.5
www.greenpin.com
Green Pin® Foundry Hook E
Technical specifications in inches
Article code working load limit for chain diameter (inch) A length (inch) B diameter eye inside (inch) C opening hook (inch) D thickness (inch) E width (inch) F diameter eye outside (inch) G width outside (inch) H length (inch) I thickness (inch) Net weight
(LBS)
GPCFO6 1,12 7/32 3 21/32 3/4 1 7/8 21/32 13/16 1 1/2 3 13/16 4 7/8 9/32 0.73
GPCFO7/8 2 1/4 - 5/16 4 29/32 31/32 2 17/32 7/8 1 3/32 1 31/32 5 3/32 6 1/2 11/32 1.72
GPCFO10 3,2 3/8 6 3/16 1 11/32 3 1/8 1 1/16 1 3/8 2 9/16 6 11/32 8 3/16 7/16 3.31
GPCFO13 5,4 1/2 7 15/32 1 23/32 3 3/4 1 3/8 1 25/32 3 5/16 7 25/32 10 1/2 6.62
GPCFO16 8,2 5/8 8 1/16 1 3/8 3 3/4 1 25/32 2 2/16 3 15/32 8 1/32 11 3/16 15/16 9.18
GPCFO18/20 12,8 3/4 9 1/4 1 9/16 4 3/8 2 3/32 2 5/32 3 5/8 8 31/32 12 13/32 31/32 17.2
GPCFO22 15,5 7/8 10 7/16 1 13/16 4 27/32 2 19/32 2 25/32 4 11/32 10 5/32 10 9/16 1 1/4 21.8
GPCFO26 21,6 1 12 2 1/8 5 1/4 2 9/16 3 3/16 4 23/32 10 29/32 16 17/32 1 5/16 30.4
GPCFO32 32,8 1 1/4 12 7/8 2 3/8 6 3/32 3 5/16 3 25/32 5 5/32 13 1/8 18 1/16 1 3/8 54.0
www.greenpin.com
Green Pin® Foundry Hook E
Technical drawing
Green Pin<sup>®</sup> Foundry Hook E
