Green Pin® Fishing Dee Shackle FP
Dee shackle with square sunken hole screw pin (flush pin)- Highlights
- No protruding parts so does not damage nets
- Assembled with sunken hole key
- Galvanization assures long-term durability
- Suitable for one-leg systems only
- Chamber in the shackle eye hides the screw thread and reduces wear
The Green Pin® Fishing Dee Shackle FP is a dee shackle with a square sunken hole screw pin (flush pin). The Green Pin® Fishing Dee Shackle FP contains no protruding parts so it does not damage or get caught in fishing nets. Another important feature is that the chamber in the shackle eye hides the screw thread and reduces wear of rope. Galvanization of the bow shackle ensures its long-term durability. The Green Pin® Fishing Dee Shackle FP is suitable for one-leg lifting systems only and can be assembled with the help of the Green Pin® Sunken Hole Key. The shackle is available in a range with a working load limit from 2 up to 17 ton.
More-
ProductcodeG-4159
-
Materialbow and pin high tensile steel, Grade 6, quenched and tempered
-
Safety factorMBL equals 6 x WLL
-
Finishhot dipped galvanized
-
Certification
- 2.1
- 2.2
- 3.1
- MTCa
- CE
-
StandardEN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Grade A
-
Notekey for unscrewing the pin must be ordered separately
Article code |
working load limit
(ton)
|
Net weight
(lbs)
|
Net weight
(kg)
|
diameter bow (inch)
A
|
diameter bow
(mm)
A
|
diameter pin (inch)
B
|
diameter pin
(mm)
B
|
diameter eye (inch)
C
|
diameter eye
(mm)
C
|
width eye (inch)
D
|
width eye
(mm)
D
|
width inside
(mm)
E
|
width inside (inch)
E
|
length inside (inch)
F
|
length inside
(mm)
F
|
length
(mm)
G
|
length (inch)
G
|
length bolt
(mm)
H
|
length bolt (inch)
H
|
size hole (inch)
I
|
size hole
(mm)
I
|
Net weight (KG) | Net weight (LBS) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GPGDVV13 | 2 | 0.29 | 13,5 | 16 | 34 | 13 | 22 | 43 | 82 | 51 | 11 | 0.29 | ||||||||||||
GPGDVV13 | 0.65 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 1 11/16 | 3 7/32 | 2 | 7/16 | 0.65 | |||||||||||||
GPGDVV16 | 3,25 | 0.60 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 63 | 11 | 0.60 | ||||||||||||
GPGDVV16 | 1.33 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 | 3 13/16 | 2 15/32 | 7/16 | 1.33 | |||||||||||||
GPGDVV19 | 4,75 | 0.98 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 74 | 11 | 0.98 | ||||||||||||
GPGDVV19 | 2.15 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 2 5/16 | 4 13/32 | 2 29/32 | 7/16 | 2.15 | |||||||||||||
GPGDVV22 | 6,5 | 1.26 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 85 | 13 | 1.26 | ||||||||||||
GPGDVV22 | 2.77 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 2 7/8 | 5 9/32 | 3 11/32 | 1/2 | 2.77 | |||||||||||||
GPGDVV25 | 8,5 | 2.14 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 99 | 13 | 2.14 | ||||||||||||
GPGDVV25 | 4.72 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 11/32 | 6 1/16 | 3 29/32 | 1/2 | 4.72 | |||||||||||||
GPGDVV28 | 9,5 | 2.58 | 28 | 32 | 67 | 28 | 47 | 90 | 168 | 110 | 17 | 2.58 | ||||||||||||
GPGDVV28 | 5.68 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 3 17/32 | 6 9/16 | 4 11/32 | 21/32 | 5.68 | |||||||||||||
GPGDVV32 | 12 | 3.49 | 32 | 35 | 73 | 32 | 51 | 94 | 180 | 122 | 17 | 3.49 | ||||||||||||
GPGDVV32 | 7.69 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 3 11/16 | 7 3/32 | 4 13/16 | 21/32 | 7.69 | |||||||||||||
GPGDVV38 | 17 | 6.22 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 145 | 17 | 6.22 | ||||||||||||
GPGDVV38 | 13.7 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 | 9 1/16 | 5 23/32 | 21/32 | 13.7 |
Frequently Asked Questions
In the past, one or two pitches of thread were often visible on the shackle pin next to the threaded shackle eye. Earlier design, after assembly some of the threading is visible at the shackle eye:
Today, we machine a small chamber in the treaded eye of all our Green Pin® shackle bodies for screw pin shackles.
The thread is now fully covered by the shackle eye, leaving the bearing surface of your shackle pin entirely smooth. This is good news for your counter components like soft slings or steel wire ropes: they can no longer be damaged by any threading on the shackle pin.
This modification is fully incorporated in our product designs, meaning the products comply with all standards and certifications mentioned in our catalogue.
FAQ-Reference: PI-02-02. Rev: 0.
Note: Main dimensions, general info and warnings can be found in our latest catalogue.
If the recommendations in this product information are followed performance of the shackles is guaranteed:
- permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
- the number of marks on a shackle is to be kept to the minimum.
- the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
- values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
- recommended sizes of marks are
- Diameter of part to be marked > recommended size of mark
- less then 12.5 mm > 3.0 mm
- 12.5 to 26 mm > 4.5 mm
- over 26 mm > 6.0 mm

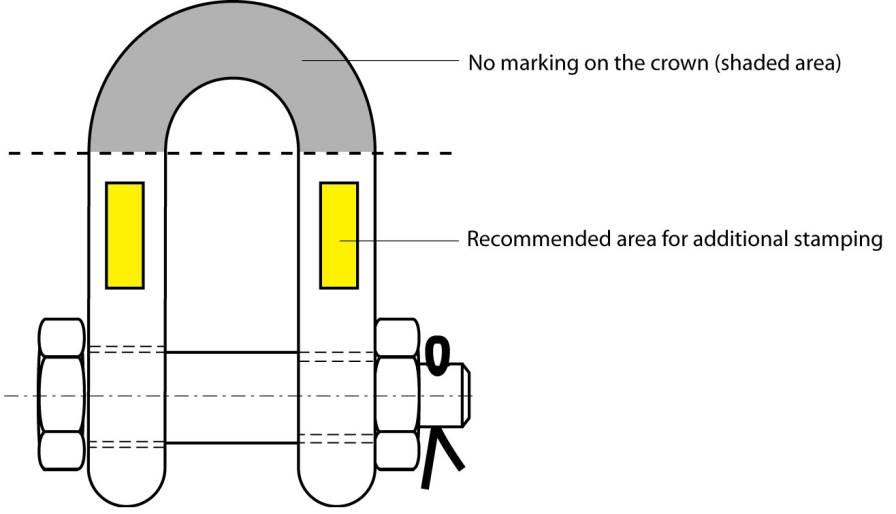

Typical arrangements of marks can be found in the following illustrations.
FAQ-Reference: PI-05-03. Rev 0.
It is required that shackles are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteration of the material structure. Inspection should take place at least every six months and even more frequently when the shackles are used in severe operating conditions.
Shackles should be inspected to ensure that:
- all markings are legible;
- the body and pin are both identifiable as being of the same size, type and make;
- the threads of the pin and the body are undamaged;
- for a safety bolt type shackle is used with the split cotter pin;
- the body and the pin are not distorted or unduly worn;
- the body and pin are free from nicks, gouges, cracks and corrosion;
- shackles are not heat treated as this may affect their Working Load Limit;
- the shackle is not modified, repaired or reshaped by welding, heating, machining or bending as this will affect the Working Load Limit;
Remove the shackle from service if:
- all markings are not clearly legible;
- body and pin can not be identified as being from same size, type and make;
- the threads of the pin and/or body are damaged;
- for a safety bolt type shackle the split cotter pin is missing;
- the body and/or pin is distorted or unduly worn, the maximum allowable wear is 10% of the original dimension;
- the body and/or pin is not free from nicks, gouges, cracks or corrosion;
- the shackle has been exposed to any heat treatment;
- the shackle is modified, repaired or reshaped by welding, heating, machining or bending;
- t is expected that before the next periodical inspection any of the inspection criteria above will not be passed;
FAQ-Reference: PI-06-01. Rev: 0.
No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.
FAQ-Reference PI-07-02 Rev. B
BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical
Green Pin® shackles are known for their robust quality and versatility, are differentiated across various attributes which suit specific needs in different industries, including construction, maritime, and heavy lifting. They differ in grade, certificate, crown width, end fitting, number of safeties and special features. To discover all Green Pin shackles, visit the shackles category page here.
Dee shackle with square sunken hole screw pin (flush pin)
Highlights
- No protruding parts so does not damage nets
- Assembled with sunken hole key
- Galvanization assures long-term durability
- Suitable for one-leg systems only
- Chamber in the shackle eye hides the screw thread and reduces wear
Description
The Green Pin® Fishing Dee Shackle FP is a dee shackle with a square sunken hole screw pin (flush pin). The Green Pin® Fishing Dee Shackle FP contains no protruding parts so it does not damage or get caught in fishing nets. Another important feature is that the chamber in the shackle eye hides the screw thread and reduces wear of rope. Galvanization of the bow shackle ensures its long-term durability. The Green Pin® Fishing Dee Shackle FP is suitable for one-leg lifting systems only and can be assembled with the help of the Green Pin® Sunken Hole Key. The shackle is available in a range with a working load limit from 2 up to 17 ton.
Product details
- ProductcodeG-4159
- Materialbow and pin high tensile steel, Grade 6, quenched and tempered
- Safety factorMBL equals 6 x WLL
- Finishhot dipped galvanized
- Certification 2.1 2.2 3.1 MTCa CE
- StandardEN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Grade A
- Notekey for unscrewing the pin must be ordered separately
Article code | working load limit | Net weight |
|
|
|
|
|
|
|
|
|
Net weight
(kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
GPGDVV13 | 2 | 0.29 | 13,5 | 16 | 34 | 13 | 22 | 43 | 82 | 51 | 11 | 0.29 |
GPGDVV16 | 3,25 | 0.60 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 63 | 11 | 0.60 |
GPGDVV19 | 4,75 | 0.98 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 74 | 11 | 0.98 |
GPGDVV22 | 6,5 | 1.26 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 85 | 13 | 1.26 |
GPGDVV25 | 8,5 | 2.14 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 99 | 13 | 2.14 |
GPGDVV28 | 9,5 | 2.58 | 28 | 32 | 67 | 28 | 47 | 90 | 168 | 110 | 17 | 2.58 |
GPGDVV32 | 12 | 3.49 | 32 | 35 | 73 | 32 | 51 | 94 | 180 | 122 | 17 | 3.49 |
GPGDVV38 | 17 | 6.22 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 145 | 17 | 6.22 |
Article code | Net weight |
|
|
|
|
|
|
|
|
|
Net weight
(LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|
GPGDVV13 | 0.65 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 1 11/16 | 3 7/32 | 2 | 7/16 | 0.65 |
GPGDVV16 | 1.33 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 | 3 13/16 | 2 15/32 | 7/16 | 1.33 |
GPGDVV19 | 2.15 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 2 5/16 | 4 13/32 | 2 29/32 | 7/16 | 2.15 |
GPGDVV22 | 2.77 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 2 7/8 | 5 9/32 | 3 11/32 | 1/2 | 2.77 |
GPGDVV25 | 4.72 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 11/32 | 6 1/16 | 3 29/32 | 1/2 | 4.72 |
GPGDVV28 | 5.68 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 3 17/32 | 6 9/16 | 4 11/32 | 21/32 | 5.68 |
GPGDVV32 | 7.69 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 3 11/16 | 7 3/32 | 4 13/16 | 21/32 | 7.69 |
GPGDVV38 | 13.7 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 | 9 1/16 | 5 23/32 | 21/32 | 13.7 |
