Green Pin Tycan® Ratchet Loadbinder GR10
Grade 10 ratchet type loadbinder without hooks according to EN 12195-3
- Highlights
- Specially designed for Green Pin Tycan®
- Takeup length optimized for Green Pin Tycan® Chain
- Ratchet allows for precise setting of lashing length and tension
- Safety prevents unintentional unscrewing of hooks
- Superior stock availability of 99%
The Green Pin Tycan® Ratchet Loadbinder is a grade 10 ratchet type loadbinder for use with Green Pin Tycan® Chain. The takeup-length of the loadbinder has been designed specifically for use with Green Pin Tycan® Chain. The ratchet in this loadbinder enables the precise setting of the lashing length and tension. The Green Pin Tycan® Ratchet Loadbinder is available with a lashing capacity of 16 ton.
More-
ProductcodeP-7180
-
Materialdrop forged steel, Grade 10
-
Safety factorMBL equals 2 x Lashing Capacity
-
Finishpainted blue
-
Certification
- 2.1
- 2.2
-
StandardEN 12195-3
-
NoteStf = 3000 daN
| Article code |
fibre chain size (inch)
|
fibre chain size
(mm)
|
lashing capacity
(ton)
|
lashing capacity
(ton)
|
proof load
(ton)
|
proof load
(ton)
|
minimum breaking load
(ton)
|
minimum breaking load
(ton)
|
take up (inch)
|
take-up
(mm)
|

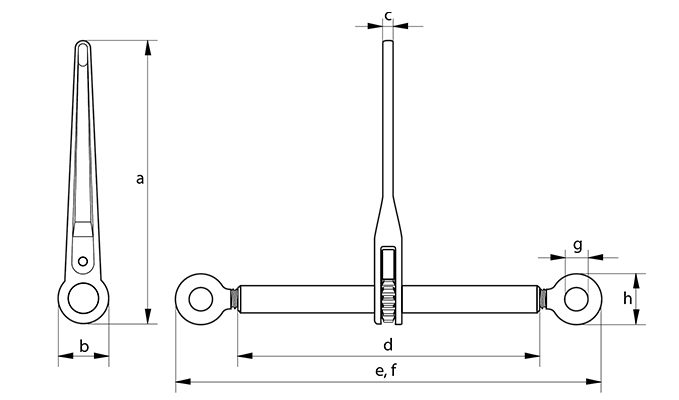

length handle
(mm)
A
|
length handle (inch)
A
|
diameter (inch)
B
|
diameter
(mm)
B
|
thickness (inch)
C
|
thickness
(mm)
C
|
length barrel (inch)
D
|
length barrel
(mm)
D
|
length open position (inch)
E
|
length open position
(mm)
E
|
length closed position (inch)
F
|
length closed position
(mm)
F
|
diameter eye inside (inch)
G
|
diameter eye inside
(mm)
G
|
diameter eye outside (inch)
H
|
diameter eye outside
(mm)
H
|
Net weight (KG) | Net weight (LBS) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCRR25ZHENT | 15X25MM 13X30MM | 16 | 20 | 32 | 300 | 387 | 65 | 15 | 410 | 858 | 558 | 30 | 64 | 5.17 | |||||||||||||||
| LCRR25ZHENT | 19/32 X 1 AND 1/2 X 1 3/16 | 16 | 20 | 32 | 11 13/16 | 15 1/4 | 2 9/16 | 19/32 | 16 5/32 | 33 25/32 | 21 31/32 | 1 3/16 | 2 16/32 | 11.4 |
Product video
Frequently Asked Questions
No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.
FAQ-Reference PI-07-02 Rev. B
Grade 10 ratchet type loadbinder without hooks according to EN 12195-3
Highlights
Specially designed for Green Pin Tycan®
- Takeup length optimized for Green Pin Tycan® Chain
- Ratchet allows for precise setting of lashing length and tension
- Safety prevents unintentional unscrewing of hooks
- Superior stock availability of 99%
Description
The Green Pin Tycan® Ratchet Loadbinder is a grade 10 ratchet type loadbinder for use with Green Pin Tycan® Chain. The takeup-length of the loadbinder has been designed specifically for use with Green Pin Tycan® Chain. The ratchet in this loadbinder enables the precise setting of the lashing length and tension. The Green Pin Tycan® Ratchet Loadbinder is available with a lashing capacity of 16 ton.
Product details
- ProductcodeP-7180
- Materialdrop forged steel, Grade 10
- Safety factorMBL equals 2 x Lashing Capacity
- Finishpainted blue
- Certification 2.1 2.2
- StandardEN 12195-3
- NoteStf = 3000 daN
Green Pin Tycan® Ratchet Loadbinder GR10
| Article code | fibre chain size | lashing capacity | proof load | minimum breaking load | take-up |
|
|
|
|
|
|
|
|
Net weight
(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCRR25ZHENT | 15X25MM 13X30MM | 16 | 20 | 32 | 300 | 387 | 65 | 15 | 410 | 858 | 558 | 30 | 64 | 5.17 |
Green Pin Tycan® Ratchet Loadbinder GR10
| Article code | fibre chain size (inch) | lashing capacity | proof load | minimum breaking load | take up (inch) |
|
|
|
|
|
|
|
|
Net weight
(LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCRR25ZHENT | 19/32 X 1 AND 1/2 X 1 3/16 | 16 | 20 | 32 | 11 13/16 | 15 1/4 | 2 9/16 | 19/32 | 16 5/32 | 33 25/32 | 21 31/32 | 1 3/16 | 2 16/32 | 11.4 |
