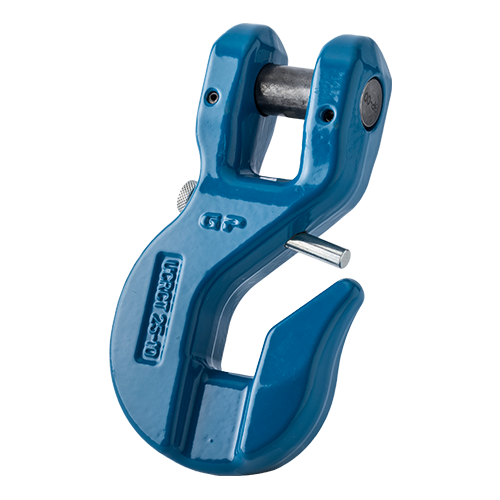

Green Pin Tycan® Grab Hook CL GR10

Grade 10 clevis grab hook
    Highlights
  • Specially designed for Green Pin Tycan®
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
Description

The Green Pin Tycan® Grab Hook CL GR10 is a grade 10 clevis grab hook with a locking pin for use with Green Pin Tycan® Chain. The hook is made from high tensile steel and is available in a range with a working load limit from 2.6 ton up to 10.3 ton and a lashing capacity of 10 and 13.6 ton.

Product details
  • Productcode
    UCRCT
  • Material
    alloy steel, Grade 10, quenched and tempered
  • Safety factor
    MBL equals 4 x WLL and MBL equals 2 x Lashing Capacity
  • Finish
    painted blue
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • MPIb
Technical specifications in
mminch

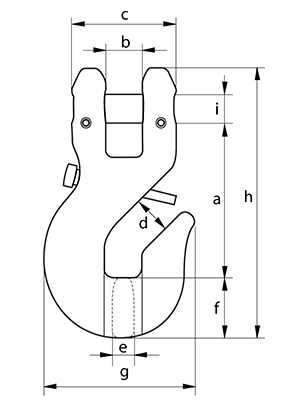

To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
for Green Pin Tycan® chain (mm)
or Green Pin Tycan® chain (inch)
length (mm)
A
length (inch)
A
width (mm)
B
width (inch)
B
width outside (inch)
C
width outside (mm)
C
opening (mm)
D
opening (inch)
D
thickness (inch)
E
thickness (mm)
E
width (inch)
F
width (mm)
F
width outside (inch)
G
width outside (mm)
G
length outside (inch)
H
length outside (mm)
H
diameter pin (inch)
I
diameter pin (mm)
I
Net weight (KG) Net weight (LBS)
GPUCRCT15 2,6 11X15 64 17 44 15 13 23 65 109 13 0.55
GPUCRCT15 2,6 7/16 X 19/32 2 17/32 21/32 1 23/32 19/32 1/2 29/32 2 9/16 4 9/32 1/2 1.22
GPUCRCT20 4 11X20 81 22 57 20 16 29 85 138 16 1.03
GPUCRCT20 4 7/16 X 25/32 3 3/16 7/8 2 1/4 25/32 5/8 1 5/32 3 11/32 5 7/16 5/8 2.27
GPUCRCT25 5 15X25 102 24 68 25 16 40 99 178 20 2.12
GPUCRCT25 5 19/32 X 1 4 1/32 15/16 2 11/16 1 5/8 1 9/16 3 29/32 7 25/32 4.68
GPUCRCT30 6,8 13X30 100 32 74 30 20 40 102 177 20 1.94
GPUCRCT30 6,8 1/2 X 1 3/16 3 15/16 1 1/4 2 29/32 1 3/16 25/32 1 9/16 4 1/32 6 31/32 25/32 4.28
GPUCRCT40 10,3 15X40 128 42 96 40 24 44,7 127 216,5 24 3.37
GPUCRCT40 10,3 19/32 X 1 9/16 5 1/32 1 21/32 3 3/4 1 9/16 15/16 1 23/32 5 8 1/2 15/16 7.43
