Green Pin Super® Bow Shackle SC

Grade 8 bow shackle with screw pin
    Highlights
  • Easier handling due to smaller size and weight (with equal WLL)
  • Screw pin for quick (dis)assembly
  • Galvanization assures long-term durability
  • Superior stock availability of 99%
  • Reliable Green Pin® quality and support
Description

The Green Pin Super® Bow Shackle SC is a grade 8 bow shackle with screw pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Handling of the Green Pin Super® Bow Shackle SC is easier due to its smaller size and weight (with an equal working load limit when compared to non-Super products). Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized because the chamber in the shackle eye hides the screw thread. The Green Pin Super®Bow Shackle SC is available in a range with a working load limit from 3.3 up to 85t.

Product details
  • Productcode
    G-5261
  • Material
    bow and pin alloy steel, Grade 8, quenched and tempered
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    hot dipped galvanized
  • Temp. range
    -20°C up to +200°C
  • Standard
    ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below

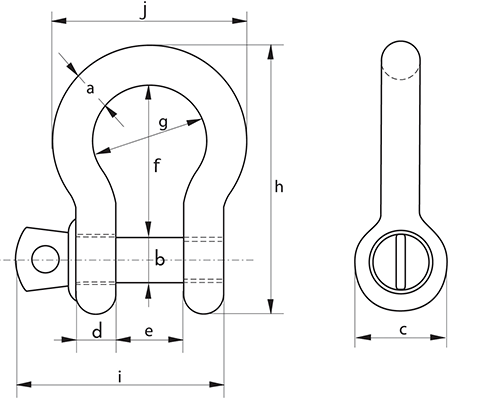

Pdf Article code working load limit (ton)
Net weight (kg)
Net weight (lbs)
diameter bow (inch)
A
G-5261 schematic
diameter bow (mm)
A
G-5261 schematic
diameter pin (inch)
B
G-5261 schematic
diameter pin (mm)
B
G-5261 schematic
diameter eye (inch)
C
G-5261 schematic
diameter eye (mm)
C
G-5261 schematic
width eye (inch)
D
G-5261 schematic
width eye (mm)
D
G-5261 schematic
width inside (mm)
E
G-5261 schematic
width inside (inch)
E
G-5261 schematic
length inside (mm)
F
G-5261 schematic
length inside (inch)
F
G-5261 schematic
width bow (mm)
G
G-5261 schematic
width bow (inch)
G
G-5261 schematic
length (mm)
H
G-5261 schematic
length (inch)
H
G-5261 schematic
length bolt (mm)
I
G-5261 schematic
length bolt (inch)
I
G-5261 schematic
width (inch)
J
G-5261 schematic
width (mm)
J
G-5261 schematic
Net weight (KG) Net weight (LBS)
PDF SUGHBB13 3,3 0.36 13,5 16 34 13 22 51 32 90 73 59 0.36
PDF SUGHBB13 0.79 1/2 5/8 1 11/32 1/2 7/8 2 1 1/4 3 17/32 2 7/8 2 5/16 0.79
PDF SUGHBB16 5 0.63 16 19 40 16 27 64 43 110 89 75 0.63
PDF SUGHBB16 1.38 5/8 3/4 1 9/16 5/8 1 1/16 2 17/32 1 11/16 4 11/32 3 1/2 2 15/16 1.38
PDF SUGHBB19 7 1.01 19 22 46 19 31 76 51 129 103 89 1.01
PDF SUGHBB19 2.22 3/4 7/8 1 13/16 3/4 1 7/32 3 2 5 3/32 4 1/16 3 1/2 2.22
PDF SUGHBB22 9,5 1.50 22 25 52 22 36 83 58 144 119 102 1.50
PDF SUGHBB22 3.31 7/8 1 2 1/16 7/8 1 13/32 3 9/32 2 9/32 5 21/32 4 11/16 4 1/32 3.31
PDF SUGHBB25 12,5 2.21 25 28 59 25 43 95 68 164 137 118 2.21
PDF SUGHBB25 4.86 1 1 1/8 2 5/16 31/32 1 11/16 3 3/4 2 11/16 6 15/32 5 13/32 4 21/32 4.86
PDF SUGHBB28 15 3.16 28 32 67 28 47 108 75 186 153 131 3.16
PDF SUGHBB28 6.97 1 1/8 1 1/4 2 5/8 1 3/32 1 27/32 4 1/4 2 15/16 7 5/16 6 1/32 5 5/32 6.97
PDF SUGHBB32 18 4.31 32 35 73 32 51 115 83 201 170 147 4.31
PDF SUGHBB32 9.49 1 1/4 1 3/8 2 7/8 1 1/4 2 4 17/32 3 9/32 7 29/32 6 11/16 5 25/32 9.49
PDF SUGHBB35 21 5.58 35 38 79 35 57 133 92 227 186 162 5.58
PDF SUGHBB35 12.3 1 3/8 1 1/2 3 1/8 1 3/8 2 1/4 5 1/4 3 5/8 8 15/16 7 5/16 6 3/8 12.3
PDF SUGHBB38 30 7.43 38 42 88 38 60 146 99 249 203 175 7.43
PDF SUGHBB38 16.4 1 1/2 1 5/8 3 15/32 1 1/2 2 3/8 5 3/4 3 29/32 9 13/16 8 6 7/8 16.4
PDF SUGHBB45 40 12.5 45 50 104 45 74 178 126 300 243 216 12.5
PDF SUGHBB45 27.7 1 3/4 2 4 3/32 1 25/32 2 29/32 7 4 31/32 11 13/16 9 9/16 8 1/2 27.7
PDF SUGHBB57 55 17.2 57 57 119 57 83 197 138 341 286 252 17.2
PDF SUGHBB57 37.8 2 2 1/4 4 11/16 2 1/4 3 9/32 7 3/4 5 7/16 13 7/16 11 1/4 9 29/32 37.8
PDF SUGHBB70 85 37.6 70 70 145 70 105 260 180 437 354 320 37.6
PDF SUGHBB70 82.9 2 1/2 2 3/4 5 23/32 2 3/4 4 1/8 10 1/4 7 3/32 17 7/32 13 15/16 12 19/32 82.9

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Are there any recommendations for additional stamping on Green Pin® Shackles?

Note: Main dimensions, general info and warnings can be found in our latest catalogue.

If the recommendations in this product information are followed performance of the shackles is guaranteed:

  • permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
  • the number of marks on a shackle is to be kept to the minimum.
  • the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
  • values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
  • recommended sizes of marks are
    • Diameter of part to be marked > recommended size of mark
    • less then 12.5 mm > 3.0 mm
    • 12.5 to 26 mm > 4.5 mm
    • over 26 mm > 6.0 mm

Typical arrangements of marks can be found in the following illustrations.

Additional stamping on Green Pin<sup>®</sup> Shackles 1

Additional stamping on Green Pin<sup>®</sup> Shackles 2

Additional stamping on Green Pin<sup>®</sup> Shackles 3

FAQ-Reference: PI-05-03. Rev 0.

Are there any recommendations for the inspection of shackles?

It is required that shackles are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteration of the material structure. Inspection should take place at least every six months and even more frequently when the shackles are used in severe operating conditions.

Shackles should be inspected to ensure that:

  • all markings are legible;
  • the body and pin are both identifiable as being of the same size, type and make;
  • the threads of the pin and the body are undamaged;
  • for a safety bolt type shackle is used with the split cotter pin;
  • the body and the pin are not distorted or unduly worn;
  • the body and pin are free from nicks, gouges, cracks and corrosion;
  • shackles are not heat treated as this may affect their Working Load Limit;
  • the shackle is not modified, repaired or reshaped by welding, heating, machining or bending as this will affect the Working Load Limit;

Remove the shackle from service if:

  • all markings are not  clearly legible;
  • body and pin can not be identified as being from same size, type and make;
  • the threads of the pin and/or body are damaged;
  • for a safety bolt type shackle the split cotter pin is missing;
  • the body and/or pin is distorted or unduly worn, the maximum allowable wear is 10% of the original dimension;
  • the body and/or pin is not free from nicks, gouges, cracks or corrosion;
  • the shackle has been exposed to any heat treatment;
  • the shackle is modified, repaired or reshaped by welding, heating, machining or bending;
  • t is expected that before the next periodical inspection any of the inspection criteria above will not be passed;

FAQ-Reference: PI-06-01. Rev: 0.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find the ABS PDA certificates for Green Pin® shackles?
We have redesigned the entire range of Green Pin® screw pin shackles, what's new?

In the past, one or two pitches of thread were often visible on the shackle pin next to the threaded shackle eye. Earlier design, after assembly some of the threading is visible at the shackle eye:

Green Pin Screw Pin Chambering

Today, we machine a small chamber in the treaded eye of all our Green Pin® shackle bodies for screw pin shackles.

Green Pin Screw Pin Shackle Chamber

The thread is now fully covered by the shackle eye, leaving the bearing surface of your shackle pin entirely smooth. This is good news for your counter components like soft slings or steel wire ropes: they can no longer be damaged by any threading on the shackle pin.

This modification is fully incorporated in our product designs, meaning the products comply with all standards and certifications mentioned in our catalogue.

FAQ-Reference: PI-02-02. Rev: 0.

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How are Green Pin® shackles different?

Green Pin® shackles are known for their robust quality and versatility, are differentiated across various attributes which suit specific needs in different industries, including construction, maritime, and heavy lifting. They differ in grade, certificate, crown width, end fitting, number of safeties and special features. To discover all Green Pin shackles, visit the shackles category page here.
