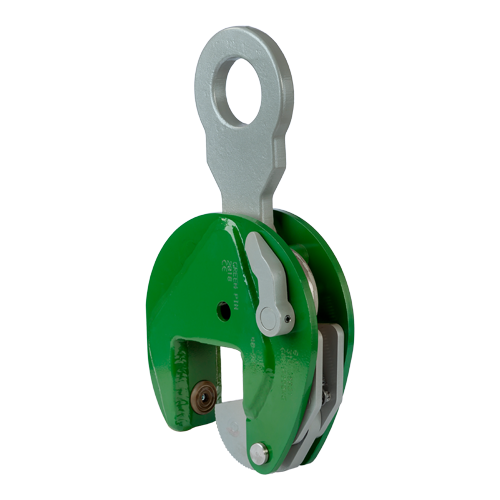

Green Pin BigMouth® Lifting Clamp V-type

Plate clamp with enlarged opening for lifting and vertical transportation
    Highlights
  • Perfect for use with thick plates due to wider clamp mouth
  • Extremely safe due to innovative plate-locking system
  • Easy to handle due to light weight
  • Sturdy build and coating assure long-term durability
  • Reliable Green Pin® quality and support
    • Cad drawing Pdf / Print
Description

The Green Pin BigMouth® Lifting Clamp V-type is a plate clamp for lifting and vertical transportation. Because of its innovative plate-locking system, the Green Pin BigMouth® Lifting Clamp V-type is extremely safe to use. The wider opening of the clamp enables you to connect the lifting clamp to a connecting point which is wider than usual. It is also very easy to handle due to its light weight and sturdy built. Long-term durability is assured as a result of the plate lifting clamp's coating. The Green Pin BigMouth® Lifting Clamp V-type is available in a range with a working load limit from 6 up to 20 ton. This product is also available in a version with a regular size clamp opening: the Green Pin® Lifting Clamp V-type.

Product details
  • Productcode
    P-6616
  • Material
    carbon and alloy steel
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted
  • Temp. range
    -40°C up to +100°C
  • Certification
    • 2.1
    • 2.2
    • MTCb
    • CE
  • Standard
    Generally to EN 13115, ASME B30.20-2010 and AS 4991
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code type (inch)
type (mm)
working load limit (ton)
working load limit (ton)
width opening (mm)
A
P-6616 schematic
width opening (inch)
A
P-6616 schematic
length opening (inch)
B
P-6616 schematic
length opening (mm)
B
P-6616 schematic
width (inch)
C
P-6616 schematic
width (mm)
C
P-6616 schematic
length (inch)
D
P-6616 schematic
length (mm)
D
P-6616 schematic
diameter eye inside (inch)
E
P-6616 schematic
diameter eye inside (mm)
E
P-6616 schematic
width (inch)
F
P-6616 schematic
width (mm)
F
P-6616 schematic
thickness (inch)
G
P-6616 schematic
thickness (mm)
G
P-6616 schematic
thickness (inch)
H
P-6616 schematic
thickness (mm)
H
P-6616 schematic
Net weight (KG) Net weight (LBS)
PDF PK060ES 6 VE 6 40 - 90 114 70 486 75 275 78 20 21.0
PDF PK060ES 6 VE 6 1 9/16 - 3 17/32 4 1/2 2 3/4 19 1/8 2 15/16 10 13/16 3 1/16 25/32 46.3
PDF PK075ES 7.5 VE 7,5 50 - 100 111 70 524 75 312 86 20 26.5
PDF PK075ES 7.5 VE 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 20 5/8 2 15/16 12 9/32 3 3/8 25/32 58.4
PDF PK090ES 9 VE 9 50 - 100 111 70 522 75 312 86 20 27.5
PDF PK090ES 9 VE 9 1 31/32 - 3 15/16 4 3/8 2 3/4 20 4/8 2 15/16 12 9/32 3 3/8 25/32 60.6
PDF PK120ES 12 VE 12 50 - 100 152 100 615 85 344 94 20 41.0
PDF PK120ES 12 VE 12 1 31/32 - 3 15/16 5 31/32 3 15/16 24 7/32 3 11/32 13 17/32 3 11/16 1 23/32 90.4
PDF PK150ES 15 VE 15 80 - 150 224 136 800 86 450 106 25 76.0
PDF PK150ES 15 VE 15 3 5/32 - 5 29/32 8 13/16 5 11/32 31 1/2 3 3/8 17 23/32 4 3/16 1 15/16 168
PDF PK200ES 20 VE 20 80 - 150 249 153 924 100 640 140 30 160
PDF PK200ES 20 VE 20 3 5/32 - 5 29/32 9 13/16 6 1/32 36 3/8 3 15/16 25 3/16 5 1/2 2 19/32 353

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

How should I use a Green Pin® Plate lifting clamp, type E/ES/EU/EUS?

Please find the user manual here.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin BigMouth® Lifting Clamp V-type

Plate clamp with enlarged opening for lifting and vertical transportation

Highlights


  • Perfect for use with thick plates due to wider clamp mouth
  • Extremely safe due to innovative plate-locking system
  • Easy to handle due to light weight
  • Sturdy build and coating assure long-term durability
  • Reliable Green Pin® quality and support

Description


The Green Pin BigMouth® Lifting Clamp V-type is a plate clamp for lifting and vertical transportation. Because of its innovative plate-locking system, the Green Pin BigMouth® Lifting Clamp V-type is extremely safe to use. The wider opening of the clamp enables you to connect the lifting clamp to a connecting point which is wider than usual. It is also very easy to handle due to its light weight and sturdy built. Long-term durability is assured as a result of the plate lifting clamp's coating. The Green Pin BigMouth® Lifting Clamp V-type is available in a range with a working load limit from 6 up to 20 ton. This product is also available in a version with a regular size clamp opening: the Green Pin® Lifting Clamp V-type.

Product details


  • ProductcodeP-6616
  • Materialcarbon and alloy steel
  • Safety factorMBL equals 5 x WLL
  • Finishpainted
  • Certification 2.1 2.2 MTCb CE
  • StandardGenerally to EN 13115, ASME B30.20-2010 and AS 4991
www.greenpin.com
Green Pin BigMouth® Lifting Clamp V-type
Technical specifications in milimeters
Article code type working load limit A width opening B length opening C width D length E diameter eye inside F width G thickness H thickness Net weight
(kg)
PK060ES 6 VE 6 40 - 90 114 70 486 75 275 78 20 21.0
PK075ES 7.5 VE 7,5 50 - 100 111 70 524 75 312 86 20 26.5
PK090ES 9 VE 9 50 - 100 111 70 522 75 312 86 20 27.5
PK120ES 12 VE 12 50 - 100 152 100 615 85 344 94 20 41.0
PK150ES 15 VE 15 80 - 150 224 136 800 86 450 106 25 76.0
PK200ES 20 VE 20 80 - 150 249 153 924 100 640 140 30 160
www.greenpin.com
Green Pin BigMouth® Lifting Clamp V-type
Technical specifications in inches
Article code type working load limit A width opening (inch) B length opening C width (inch) D length (inch) E diameter eye inside (inch) F width (inch) G thickness (inch) H thickness (inch) Net weight
(LBS)
PK060ES 6 VE 6 1 9/16 - 3 17/32 4 1/2 2 3/4 19 1/8 2 15/16 10 13/16 3 1/16 25/32 46.3
PK075ES 7.5 VE 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 20 5/8 2 15/16 12 9/32 3 3/8 25/32 58.4
PK090ES 9 VE 9 1 31/32 - 3 15/16 4 3/8 2 3/4 20 4/8 2 15/16 12 9/32 3 3/8 25/32 60.6
PK120ES 12 VE 12 1 31/32 - 3 15/16 5 31/32 3 15/16 24 7/32 3 11/32 13 17/32 3 11/16 1 23/32 90.4
PK150ES 15 VE 15 3 5/32 - 5 29/32 8 13/16 5 11/32 31 1/2 3 3/8 17 23/32 4 3/16 1 15/16 168
PK200ES 20 VE 20 3 5/32 - 5 29/32 9 13/16 6 1/32 36 3/8 3 15/16 25 3/16 5 1/2 2 19/32 353
www.greenpin.com
Green Pin BigMouth® Lifting Clamp V-type
Technical drawing
P-6616 schematic
