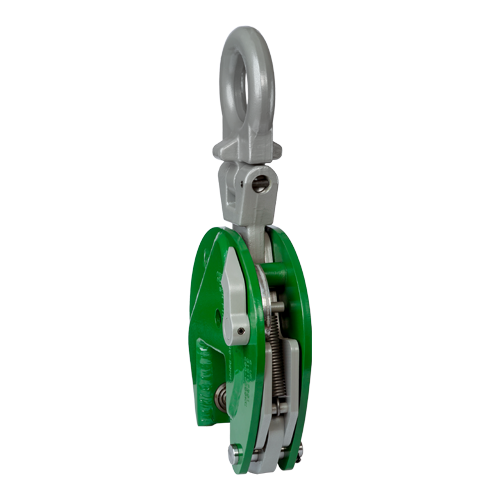

Green Pin BigMouth® Lifting Clamp U-type

Universal plate clamp for lifting and transportation in all directions and with an enlarged opening
    Highlights
  • Suitable for both inline- and side loading
  • Perfect for use with thick plates due to wider clamp mouth
  • Extremely safe due to innovative plate-locking system
  • Easy to handle due to light weight
  • Sturdy build and coating assure long-term durability
    • Cad drawing Pdf / Print
Description

The Green Pin BigMouth® Lifting Clamp U-type is a universal plate clamp used for lifting and horizontal transportation. This plate lifting clamp is the top choice in the Green Pin® lifting clamp range. The wider opening of the clamp enables you to connect the lifting clamp to a connecting point which is wider than usual. The lifting clamp is suitable for both inline- and side loading and is extremely safe to use due to its innovative plate-locking system. Its durability is assured due to the product's sturdy built and long-lasting coating. The Green Pin BigMouth® Lifting Clamp U-type is available in a range with a working load limit from 6 up to 12 ton. This product is also available in a version with a regular size clamp opening: the Green Pin® Lifting Clamp U-type.

Product details
  • Productcode
    P-6626
  • Material
    carbon and alloy steel
  • Safety factor
    MBL equals 5 x WLL
  • Finish
    painted
  • Temp. range
    -40°C up to +100°C
  • Certification
    • 2.1
    • 2.2
    • MTCb
    • CE
  • Standard
    Generally to EN 13115, ASME B30.20-2010 and AS 4991
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code type (inch)
type (mm)
working load limit (ton)
working load limit (ton)
width opening (mm)
A
P-6626 schematic
width opening (inch)
A
P-6626 schematic
length opening (inch)
B
P-6626 schematic
length opening (mm)
B
P-6626 schematic
width (inch)
C
P-6626 schematic
width (mm)
C
P-6626 schematic
length (inch)
D
P-6626 schematic
length (mm)
D
P-6626 schematic
diameter eye inside (inch)
E
P-6626 schematic
diameter eye inside (mm)
E
P-6626 schematic
width (inch)
F
P-6626 schematic
width (mm)
F
P-6626 schematic
thickness (inch)
G
P-6626 schematic
thickness (mm)
G
P-6626 schematic
thickness (inch)
H
P-6626 schematic
thickness (mm)
H
P-6626 schematic
Net weight (KG) Net weight (LBS)
PDF PK060EUS 6 UE 6 40 - 90 114 70 523 78 275 78 32 24.0
PDF PK060EUS 6 UE 6 1 9/16 - 3 17/32 4 1/2 2 3/4 20 19/32 3 1/16 10 13/16 3 1/16 1 1/4 52.9
PDF PK075EUS 7.5 UE 7,5 50 - 100 111 70 560 78 312 86 32 30.0
PDF PK075EUS 7.5 UE 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 12 9/32 3 3/8 1 1/4 66.2
PDF PK090EUS 9 UE 9 50 - 100 111 70 560 78 312 86 32 31.0
PDF PK090EUS 9 UE 9 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 12 9/32 3 3/8 1 1/4 68.4
PDF PK120EUS 12 UE 12 50 - 100 152 100 644 85 344 94 48 45.0
PDF PK120EUS 12 UE 12 1 31/32 - 3 15/16 5 31/32 3 15/16 25 11/32 3 11/32 13 17/32 3 11/16 1 7/8 99.2

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

How should I use a Green Pin® Plate lifting clamp, type E/ES/EU/EUS?

Please find the user manual here.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

Green Pin BigMouth® Lifting Clamp U-type

Universal plate clamp for lifting and transportation in all directions and with an enlarged opening

Highlights


  • Suitable for both inline- and side loading
  • Perfect for use with thick plates due to wider clamp mouth
  • Extremely safe due to innovative plate-locking system
  • Easy to handle due to light weight
  • Sturdy build and coating assure long-term durability

Description


The Green Pin BigMouth® Lifting Clamp U-type is a universal plate clamp used for lifting and horizontal transportation. This plate lifting clamp is the top choice in the Green Pin® lifting clamp range. The wider opening of the clamp enables you to connect the lifting clamp to a connecting point which is wider than usual. The lifting clamp is suitable for both inline- and side loading and is extremely safe to use due to its innovative plate-locking system. Its durability is assured due to the product's sturdy built and long-lasting coating. The Green Pin BigMouth® Lifting Clamp U-type is available in a range with a working load limit from 6 up to 12 ton. This product is also available in a version with a regular size clamp opening: the Green Pin® Lifting Clamp U-type.

Product details


  • ProductcodeP-6626
  • Materialcarbon and alloy steel
  • Safety factorMBL equals 5 x WLL
  • Finishpainted
  • Certification 2.1 2.2 MTCb CE
  • StandardGenerally to EN 13115, ASME B30.20-2010 and AS 4991
www.greenpin.com
Green Pin BigMouth® Lifting Clamp U-type
Technical specifications in milimeters
Article code type working load limit A width opening B length opening C width D length E diameter eye inside F width G thickness H thickness Net weight
(kg)
PK060EUS 6 UE 6 40 - 90 114 70 523 78 275 78 32 24.0
PK075EUS 7.5 UE 7,5 50 - 100 111 70 560 78 312 86 32 30.0
PK090EUS 9 UE 9 50 - 100 111 70 560 78 312 86 32 31.0
PK120EUS 12 UE 12 50 - 100 152 100 644 85 344 94 48 45.0
www.greenpin.com
Green Pin BigMouth® Lifting Clamp U-type
Technical specifications in inches
Article code type working load limit A width opening (inch) B length opening C width (inch) D length (inch) E diameter eye inside (inch) F width (inch) G thickness (inch) H thickness (inch) Net weight
(LBS)
PK060EUS 6 UE 6 1 9/16 - 3 17/32 4 1/2 2 3/4 20 19/32 3 1/16 10 13/16 3 1/16 1 1/4 52.9
PK075EUS 7.5 UE 7,5 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 12 9/32 3 3/8 1 1/4 66.2
PK090EUS 9 UE 9 1 31/32 - 3 15/16 4 3/8 2 3/4 22 1/16 3 1/16 12 9/32 3 3/8 1 1/4 68.4
PK120EUS 12 UE 12 1 31/32 - 3 15/16 5 31/32 3 15/16 25 11/32 3 11/32 13 17/32 3 11/16 1 7/8 99.2
www.greenpin.com
Green Pin BigMouth® Lifting Clamp U-type

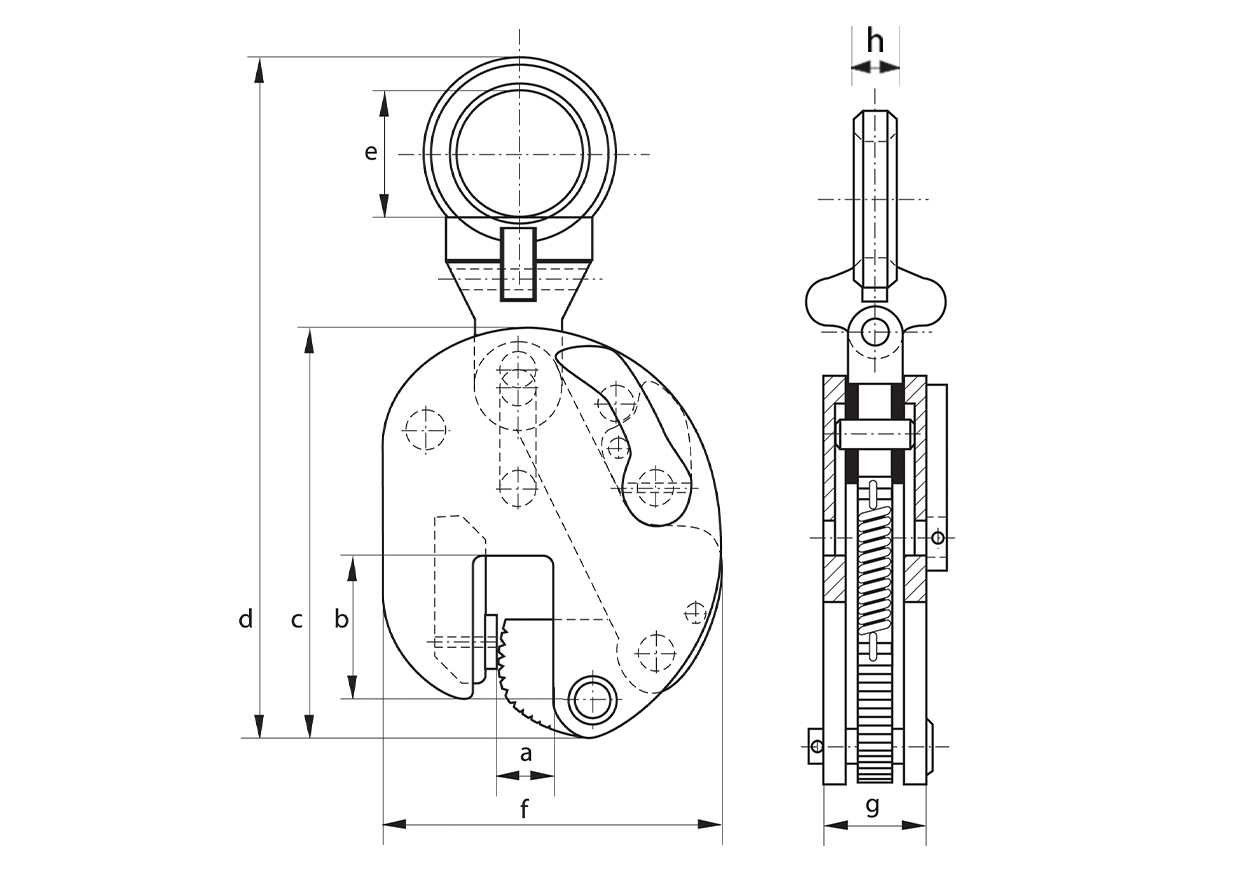

Technical drawing
P-6626 schematic
