Green Pin® DNV Master Link

Grade 8 master link
    Highlights
  • Extra large opening to accommodate larger lifting points
  • Ideal for offshore use (DNV certification)
  • Coating assures long-term durability
  • Superior stock availability of 99%
Description

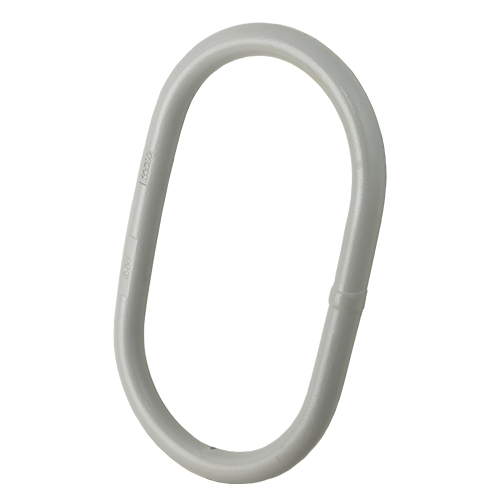

The Green Pin® DNV Master Link is perfect for offshore use. The Master Link is DNV-certified and has a large opening to accommodate larger lifting points and crane hooks. Moreover, the coating of the DNV Master Link ensures long-term durability, even under severe environmental conditions. The DNV Master Link is available in a range with a working load limit from 4.1 up to 100 ton.

Product details
  • Productcode
    P-6810
  • Material
    alloy steel, Grade 8
  • Safety factor
    MBL equals 5 x WLL
  • Temp. range
    -40°C up to +200°C
  • Standard
    DNV 2.7-1, EN 12079-2 and EN 1677-4
  • Note
    GPMLDNV65 & GPMLDNV75: temperature range: -20°C up to +200°C
Contact
Technical specifications in
mminch
To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
diameter (inch)
A
DNV Master Link Linedrawing
diameter (mm)
A
DNV Master Link Linedrawing
length inside (inch)
B
DNV Master Link Linedrawing
length inside (mm)
B
DNV Master Link Linedrawing
width inside (inch)
C
DNV Master Link Linedrawing
width inside (mm)
C
DNV Master Link Linedrawing
Net weight (KG) Net weight (LBS)
PDF GPMLDNV16 4,1 16 150 75 0.68
PDF GPMLDNV16 4,1 5/8 5 29/32 2 15/16 1.50
PDF GPMLDNV22 7 22 270 140 2.28
PDF GPMLDNV22 7 7/8 10 5/8 5 1/2 5.03
PDF GPMLDNV26 9,3 26 270 140 3.11
PDF GPMLDNV26 9,3 1 10 5/8 5 1/2 6.86
PDF GPMLDNV28 14,5 28 270 140 3.78
PDF GPMLDNV28 14,5 1 1/8 10 5/8 5 1/2 8.34
PDF GPMLDNV28S 19,5 28 200 110 3.00
PDF GPMLDNV28S 19,5 1 1/8 7 7/8 4 11/32 6.62
PDF GPMLDNV32 19 32 270 140 5.02
PDF GPMLDNV32 19 1 1/4 10 5/8 5 1/2 11.1
PDF GPMLDNV36 26 36 270 140 6.46
PDF GPMLDNV36 26 1 3/8 10 5/8 5 1/2 14.2
PDF GPMLDNV40 30,5 40 280 155 8.46
PDF GPMLDNV40 30,5 1 9/16 11 1/32 6 3/32 18.7
PDF GPMLDNV45 40 45 320 175 12.2
PDF GPMLDNV45 40 1 3/4 12 19/32 6 7/8 26.9
PDF GPMLDNV50 51 50 350 195 16.5
PDF GPMLDNV50 51 2 13 25/32 7 11/16 36.5
PDF GPMLDNV65 75 65 410 220 33.0
PDF GPMLDNV65 75 2 1/2 16 5/32 8 21/32 72.8
PDF GPMLDNV75 100 75 450 250 49.0
PDF GPMLDNV75 100 3 17 23/32 9 27/32 108

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

Where can I find the DNV Type Approval for Master Link (assemblies)?

DNV Type Approval
Click here to download the certificate

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find the Working Load Limit table for chain assemblies?

You can find the Working Load Limit tables for chain assemblies here:

How are Green Pin® links different?



Green Pin® links are designed to meet a variety of industrial demands with their diverse range of specifications. These links are available in different grades, which determine their strength and load-bearing capacity, crucial for ensuring reliability in heavy-duty applications across sectors like construction, maritime, and lifting operations. To discover all Green Pin® links, visit the links category page here.
