Green Pin® Catch Shackle BN

Standard bow shackle with safety bolt which enables all components to be tethered
    Highlights
  • Prevents accidental dropping of shackle components
  • All components can be tethered
  • Reduces number of injuries and deaths
  • For all types of tethering methods
  • Co-developed with DROPS-organization
Description

For a long time, the lifting industry has been looking for a solution to prevent the dropping of equipment and components from heights. Dropped objects are a well-known safety hazard in the industry and have led to numerous accidents. Green Pin® now offers a unique solution to this problem: The Green Pin® Catch shackle BN prevents the accidental dropping of shackle bolts, nuts, cotter pins and even complete shackles, thereby preventing injuries or deaths. These innovative shackles have an attachment point on each individual component to connect them to a lanyard. The lanyards can then be securely fastened to something or someone, for example to a tool-belt that the rigger is wearing. Also, ease of use is guaranteed: the disc on the nut that enables tethering rotates independently from the nut itself, thereby not coiling the attached lanyard. The Green Pin® Catch Shackle is supplied without any wiring so every user can choose their preferred method of securing the products. The Green Pin® Catch Shackle BN has been developed in cooperation with DROPS, the non-profit organization that is focused exclusively on dropped object prevention.In addition to the tethering options, the shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization. Of course, the Green Pin® Catch Shackle BN conforms to a wide range of certifications from class societies such as DNV. The Green Pin® Catch Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 up to 9.5 ton.

Product details
  • Productcode
    G-4163H
  • Material
    bow and pin high tensile steel, Grade 6, quenched and tempered
  • Safety factor
    MBL equals 6 x WLL
  • Finish
    hot dipped galvanized
  • Temp. range
    -40°C up to +200°C
  • Certification
    • 2.1
    • 2.2
    • 3.1
    • MTCa
    • CE
    • DNV 2.7-1a
    • DNV 2.7-1b
    • ABS PDA
    • ABS MA
  • Standard
    EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A and comply with ASME B30.26
  • Note
    supplied without wires
Contact
Technical specifications in
mminch

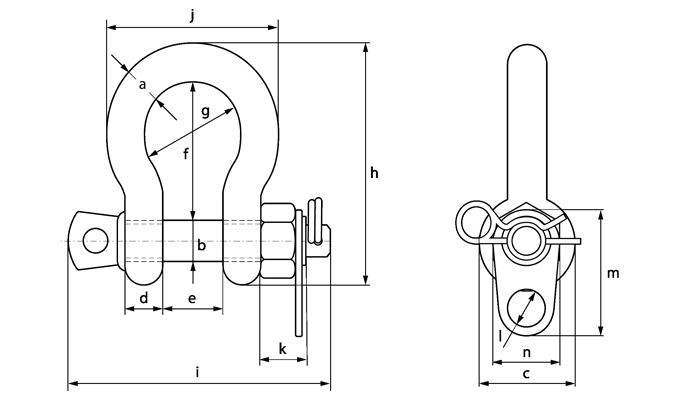

To download a CAD drawing, click on a product capacity below
Pdf Article code working load limit (ton)
working load limit (ton)
Net weight (kg)
Net weight (lbs)
diameter bow (mm)
A
Green Pin<sup>®</sup> Catch Shackle BN
diameter bow (inch)
A
Green Pin<sup>®</sup> Catch Shackle BN
diameter pin (mm)
B
Green Pin<sup>®</sup> Catch Shackle BN
diameter pin (inch)
B
Green Pin<sup>®</sup> Catch Shackle BN
diameter eye (inch)
C
Green Pin<sup>®</sup> Catch Shackle BN
diameter eye (mm)
C
Green Pin<sup>®</sup> Catch Shackle BN
width eye (mm)
D
Green Pin<sup>®</sup> Catch Shackle BN
width eye (inch)
D
Green Pin<sup>®</sup> Catch Shackle BN
width inside (mm)
E
Green Pin<sup>®</sup> Catch Shackle BN
width inside (inch)
E
Green Pin<sup>®</sup> Catch Shackle BN
length inside (inch)
F
Green Pin<sup>®</sup> Catch Shackle BN
length inside (mm)
F
Green Pin<sup>®</sup> Catch Shackle BN
width bow (mm)
G
Green Pin<sup>®</sup> Catch Shackle BN
width bow (inch)
G
Green Pin<sup>®</sup> Catch Shackle BN
length (mm)
H
Green Pin<sup>®</sup> Catch Shackle BN
length (inch)
H
Green Pin<sup>®</sup> Catch Shackle BN
length bolt (mm)
I
Green Pin<sup>®</sup> Catch Shackle BN
length bolt (inch)
I
Green Pin<sup>®</sup> Catch Shackle BN
width (mm)
J
Green Pin<sup>®</sup> Catch Shackle BN
width (inch)
J
Green Pin<sup>®</sup> Catch Shackle BN
thickness nut (inch)
K
Green Pin<sup>®</sup> Catch Shackle BN
thickness nut (mm)
K
Green Pin<sup>®</sup> Catch Shackle BN
diameter hole (inch)
L
Green Pin<sup>®</sup> Catch Shackle BN
diameter hole (mm)
L
Green Pin<sup>®</sup> Catch Shackle BN
height (inch)
M
Green Pin<sup>®</sup> Catch Shackle BN
height (mm)
M
Green Pin<sup>®</sup> Catch Shackle BN
width (inch)
N
Green Pin<sup>®</sup> Catch Shackle BN
width (mm)
N
Green Pin<sup>®</sup> Catch Shackle BN
Net weight (KG) Net weight (LBS)
PDF GPGHMB13H 2 0.47 13,5 16 34 13 22 51 32 89 102 58 19 15 48,4 27 0.47
PDF GPGHMB13H 2 1.04 1/2 5/8 1 11/32 1/2 7/8 2 1 1/4 3 1/2 4 1/32 2 9/32 3/4 19/32 1 7/8 1 1/16 1.04
PDF GPGHMB16H 3,25 0.81 16 19 40 16 27 64 43 110 122 75 23 15 53,7 31,8 0.81
PDF GPGHMB16H 3,25 1.80 5/8 3/4 1 9/16 5/8 1 1/16 2 17/32 1 11/16 4 11/32 4 13/16 2 15/16 29/32 19/32 2 3/32 1 7/32 1.80
PDF GPGHMB19H 4,75 1.32 19 22 46 19 31 76 51 129 143 89 26 15 60,1 36,5 1.32
PDF GPGHMB19H 4,75 2.91 3/4 7/8 1 13/16 3/4 1 7/32 3 2 5 3/32 5 5/8 3 1/2 1 1/32 19/32 2 3/8 1 13/32 2.91
PDF GPGHMB22H 6,5 1.92 22 25 52 22 36 83 58 144 160,5 102 29 15 65,5 41,3 1.92
PDF GPGHMB22H 6,5 4.23 7/8 1 2 1/16 7/8 1 13/32 3 9/32 2 9/32 5 21/32 6 5/16 4 1/32 1 5/32 19/32 2 9/16 1 5/8 4.23
PDF GPGHMB25H 8,5 2.77 25 28 59 25 43 95 68 164 183 118 32 15 70,5 46 2.77
PDF GPGHMB25H 8,5 6.10 1 1 1/8 2 5/16 31/32 1 11/16 3 3/4 2 11/16 6 15/32 7 7/32 4 21/32 1 1/4 19/32 2 3/4 1 13/16 6.10
PDF GPGHMB28H 9,5 3.91 28 32 66 28 47 108 75 185 201 131 34 15 74 50,8 3.91
PDF GPGHMB28H 9,5 8.62 1 1/8 1 1/4 2 19/32 1 3/32 1 27/32 4 1/4 2 15/16 7 9/32 7 29/32 5 5/32 1 11/32 19/32 2 29/32 1 31/32 8.62

Product video

Frequently Asked Questions

FAQs
Where can I find CAD drawings of Green Pin® products?

If you go to the product pages of individual products on this website, you can download the CAD-drawing (3D) of that product:

  • On the product page, go to the table with dimensions
  • Select the productsize that you are interested in
  • A Download button will appear

If no Download button appears, no CAD-drawing for this product is available.

Downloading-Green-Pin-CAD-drawings

How should I use Green Pin® Catch Shackle BN?

Please find the user manual here.

Where can I find the DNV Type Approval Certificate (2.7-1 Offshore Containers (2021)) of Green Pin® bow/dee shackles and polar shackles?

Please download it here.

Are there any recommendations for additional stamping on Green Pin® Shackles?

Note: Main dimensions, general info and warnings can be found in our latest catalogue.

If the recommendations in this product information are followed performance of the shackles is guaranteed:

  • permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
  • the number of marks on a shackle is to be kept to the minimum.
  • the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
  • values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
  • recommended sizes of marks are
    • Diameter of part to be marked > recommended size of mark
    • less then 12.5 mm > 3.0 mm
    • 12.5 to 26 mm > 4.5 mm
    • over 26 mm > 6.0 mm

Typical arrangements of marks can be found in the following illustrations.

Additional stamping on Green Pin<sup>®</sup> Shackles 1

Additional stamping on Green Pin<sup>®</sup> Shackles 2

Additional stamping on Green Pin<sup>®</sup> Shackles 3

FAQ-Reference: PI-05-03. Rev 0.

Are there any recommendations for the inspection of shackles?

It is required that shackles are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteration of the material structure. Inspection should take place at least every six months and even more frequently when the shackles are used in severe operating conditions.

Shackles should be inspected to ensure that:

  • all markings are legible;
  • the body and pin are both identifiable as being of the same size, type and make;
  • the threads of the pin and the body are undamaged;
  • for a safety bolt type shackle is used with the split cotter pin;
  • the body and the pin are not distorted or unduly worn;
  • the body and pin are free from nicks, gouges, cracks and corrosion;
  • shackles are not heat treated as this may affect their Working Load Limit;
  • the shackle is not modified, repaired or reshaped by welding, heating, machining or bending as this will affect the Working Load Limit;

Remove the shackle from service if:

  • all markings are not  clearly legible;
  • body and pin can not be identified as being from same size, type and make;
  • the threads of the pin and/or body are damaged;
  • for a safety bolt type shackle the split cotter pin is missing;
  • the body and/or pin is distorted or unduly worn, the maximum allowable wear is 10% of the original dimension;
  • the body and/or pin is not free from nicks, gouges, cracks or corrosion;
  • the shackle has been exposed to any heat treatment;
  • the shackle is modified, repaired or reshaped by welding, heating, machining or bending;
  • t is expected that before the next periodical inspection any of the inspection criteria above will not be passed;

FAQ-Reference: PI-06-01. Rev: 0.

Is it allowed to weld on Green Pin® lifting equipment?

No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.

FAQ-Reference PI-07-02 Rev. B

Where can I find the ABS PDA certificates for Green Pin® shackles?
What do the abbreviations in Green Pin® product names stand for?

BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical

How are Green Pin® shackles different?

Green Pin® shackles are known for their robust quality and versatility, are differentiated across various attributes which suit specific needs in different industries, including construction, maritime, and heavy lifting. They differ in grade, certificate, crown width, end fitting, number of safeties and special features. To discover all Green Pin shackles, visit the shackles category page here.
